Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

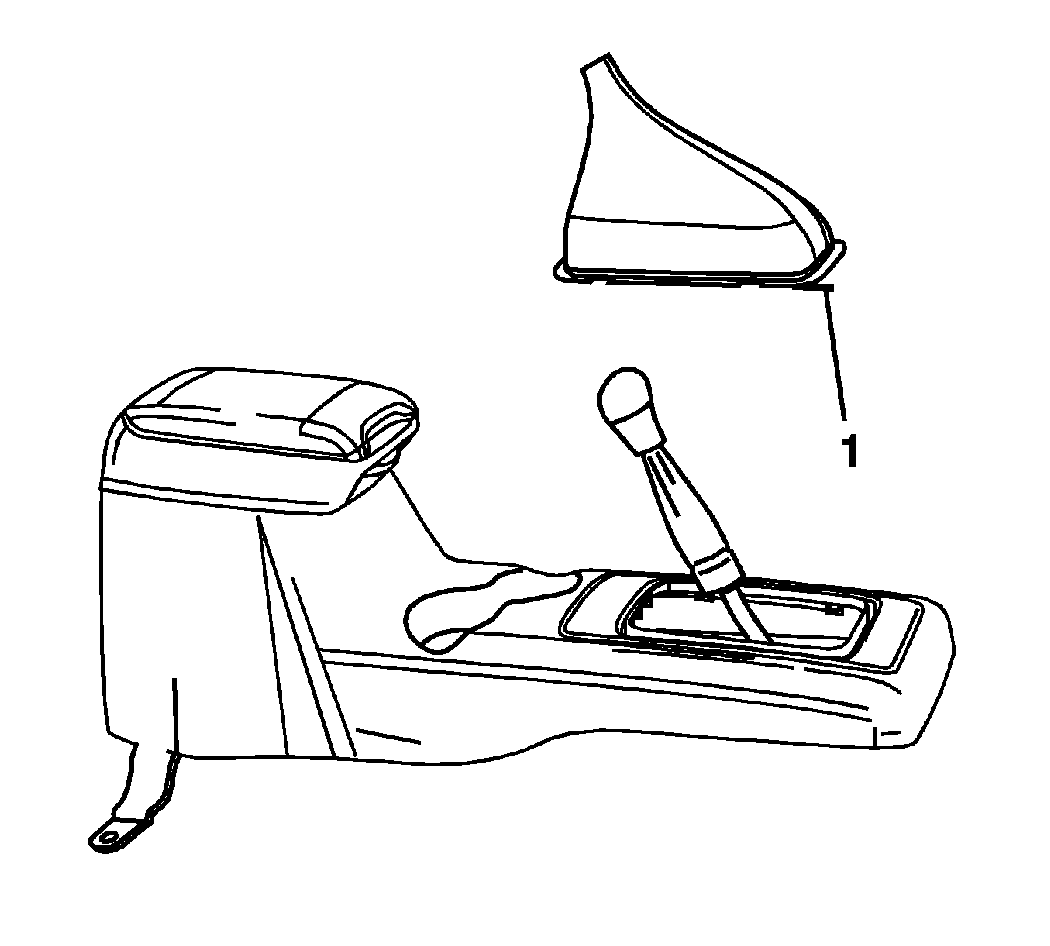

Fig 1: View Of Bezel Position Locator

Courtesy of GENERAL MOTORS CORP.

If necessary, install the boot to the bezel ensuring the position locator (1) is pointing forward.

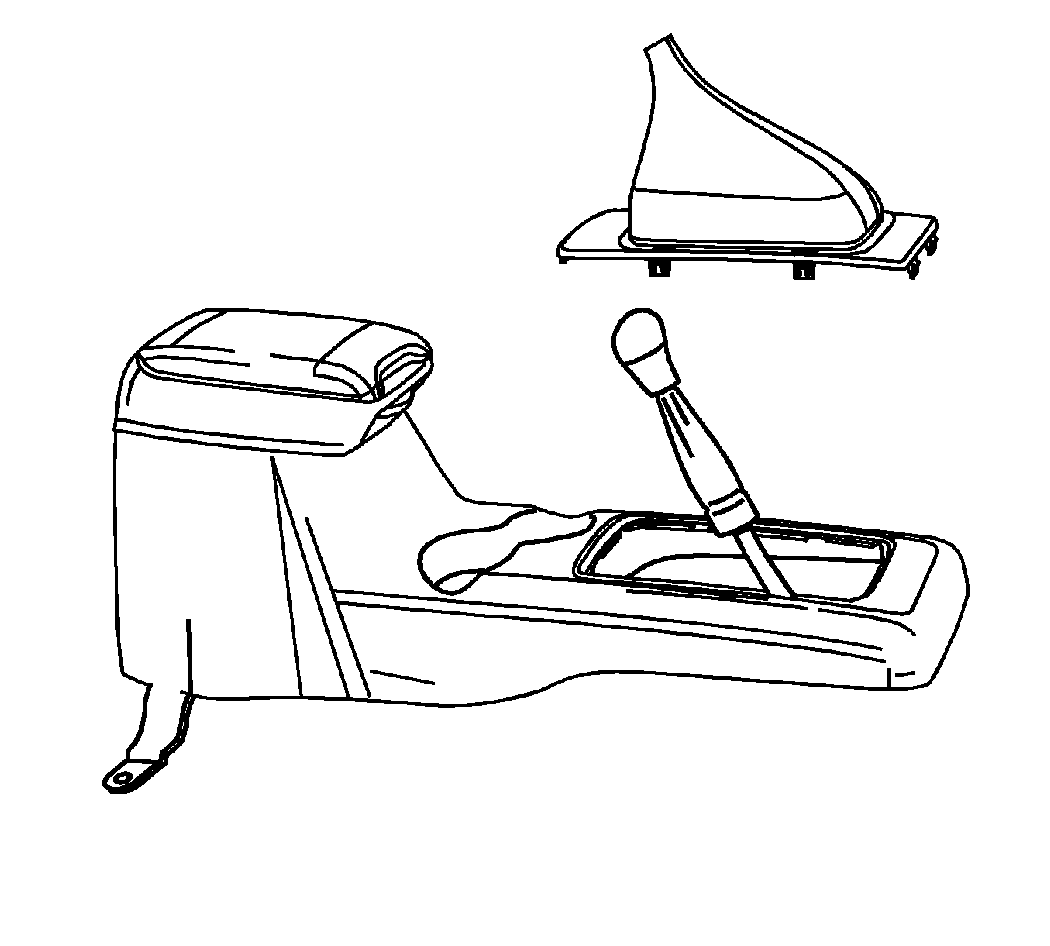

Fig 2: View Of Console Shift Lever Bezel

Courtesy of GENERAL MOTORS CORP.

Lower the bezel and boot over the shift lever.
Ensure the retaining tabs are properly indexed to the console.
Push downward on the shift lever bezel to seat the retaining tabs.
Attach the retaining strips on the shift lever boot.
