Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

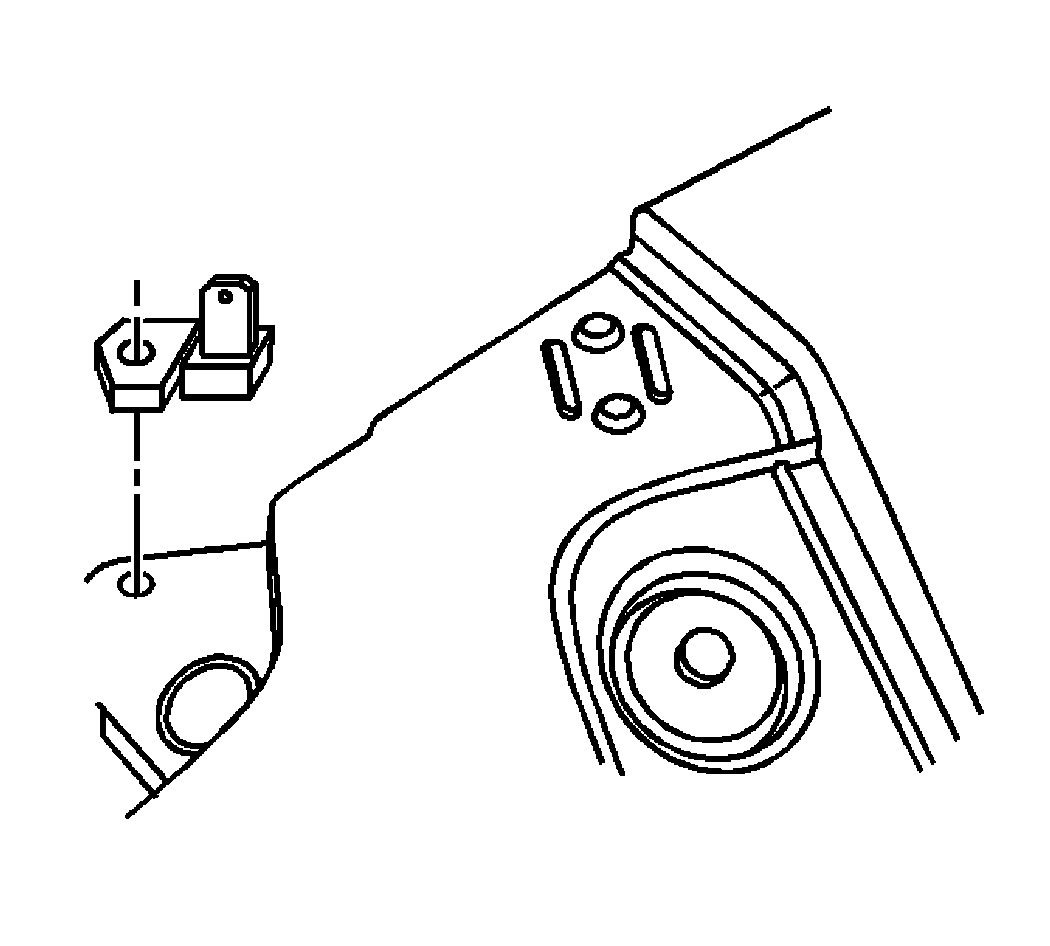

Fig 1: View Of Park Brake Warning Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Install the park brake warning lamp switch.

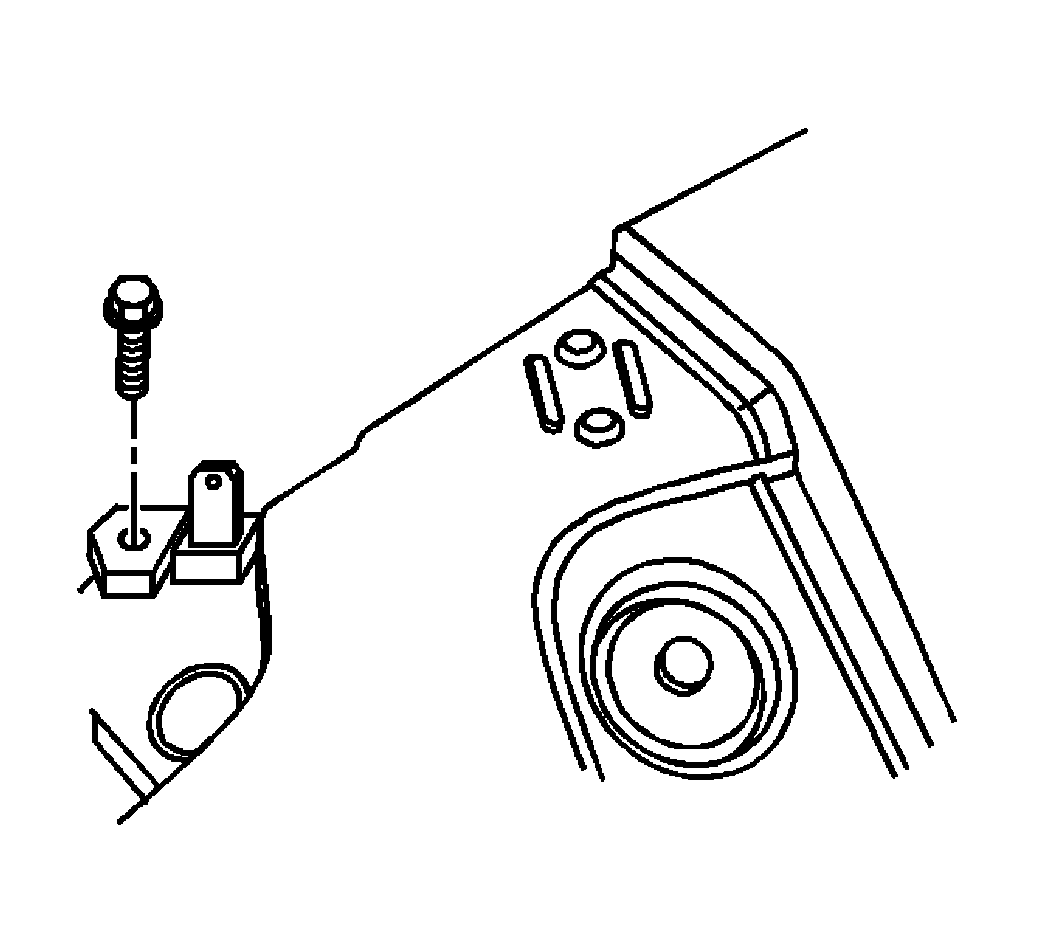

Fig 2: View Of Park Brake Warning Lamp Switch Mounting Bolt

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the park brake warning lamp switch mounting bolt and tighten to 4 N.m (35 lb in).

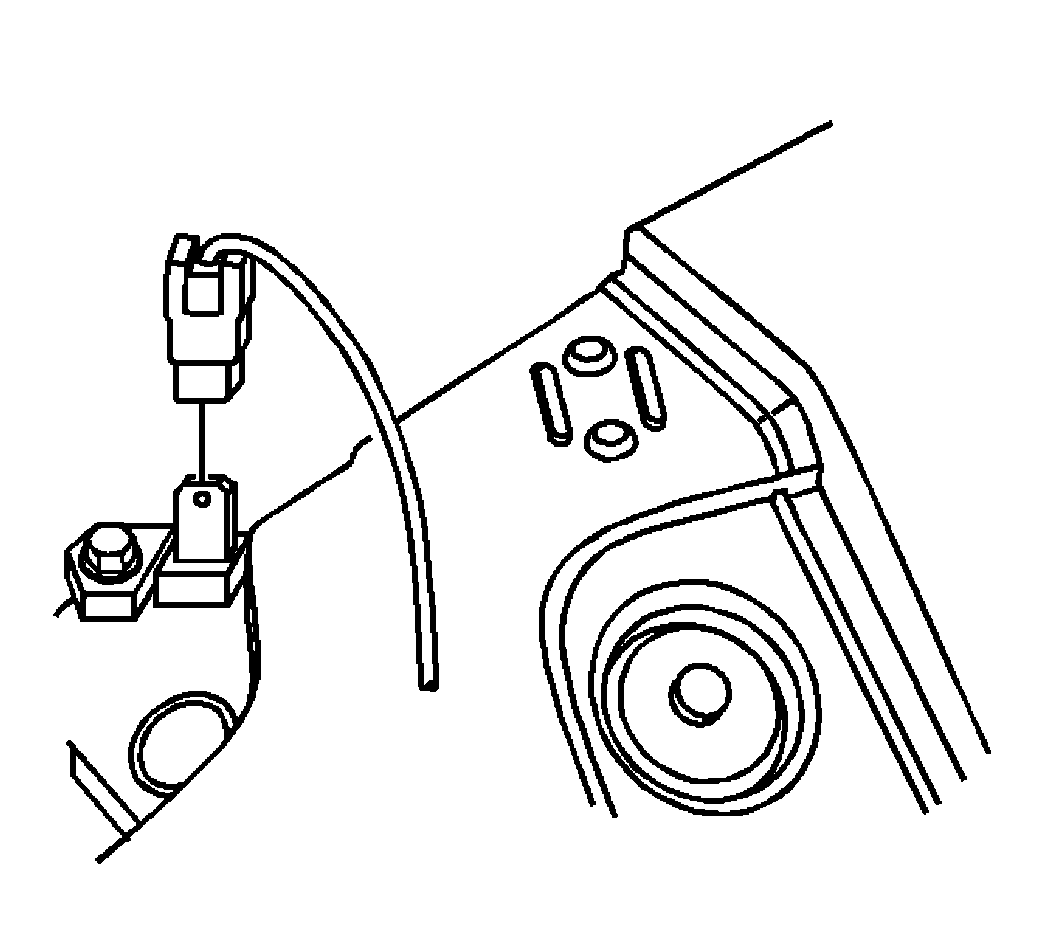

Fig 3: View Of Park Brake Warning Lamp Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the electrical connector.

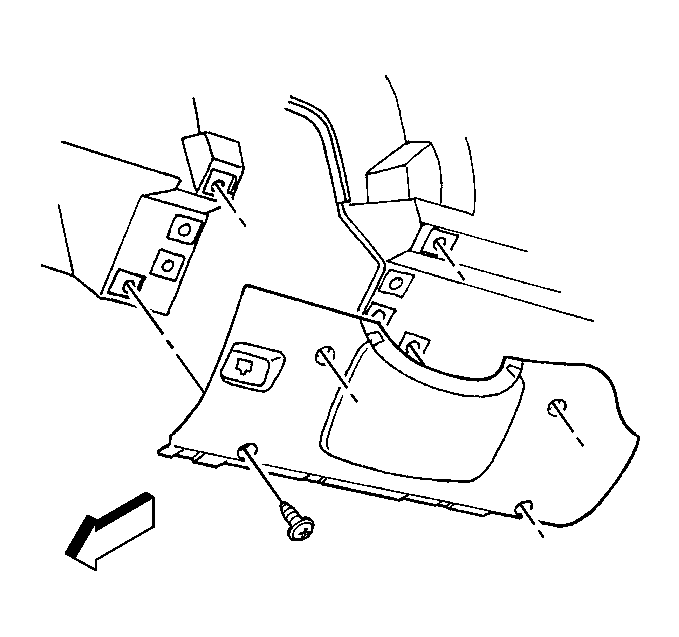

Fig 4: View Of Knee Bolster Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the knee bolster trim panel. Refer to Knee Bolster Replacement .
