Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

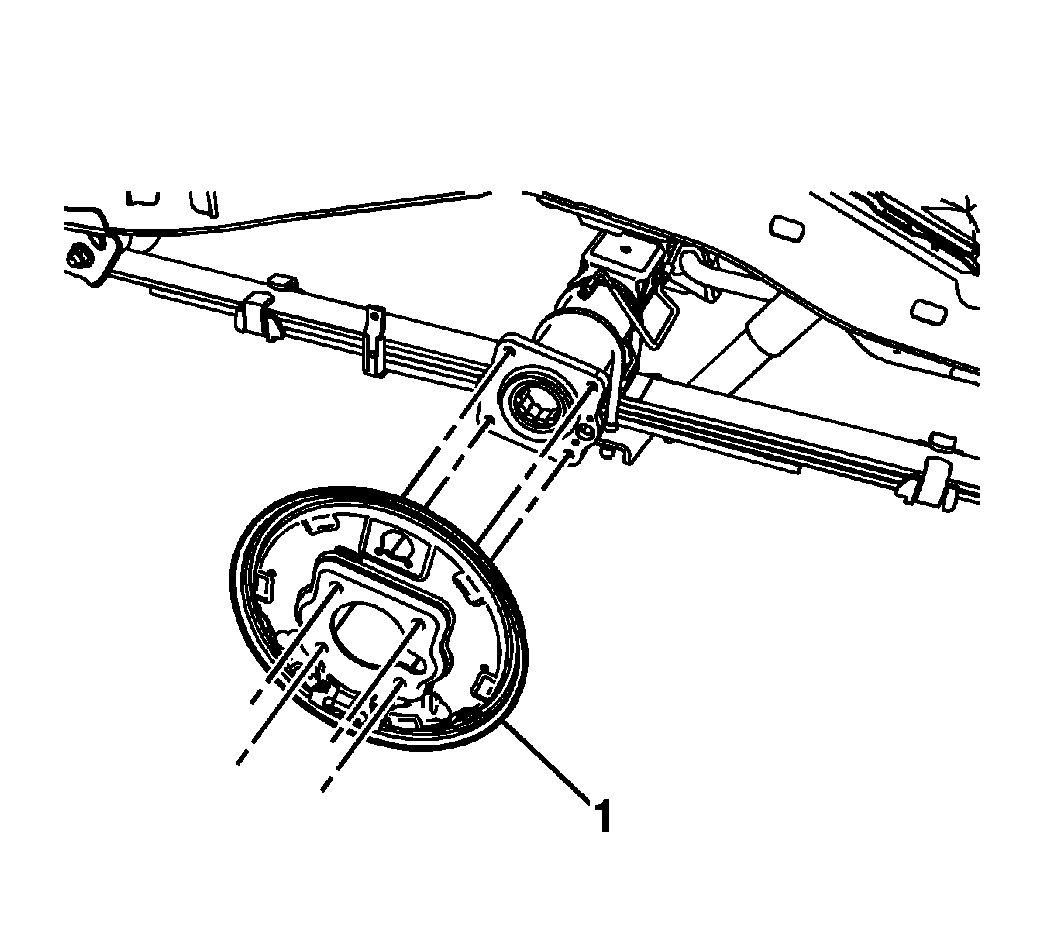

    Fig 1: Rear Brake Backing Plate
    GM2136350Courtesy of GENERAL MOTORS CORP.
  1. Install the rear brake backing plate (1).

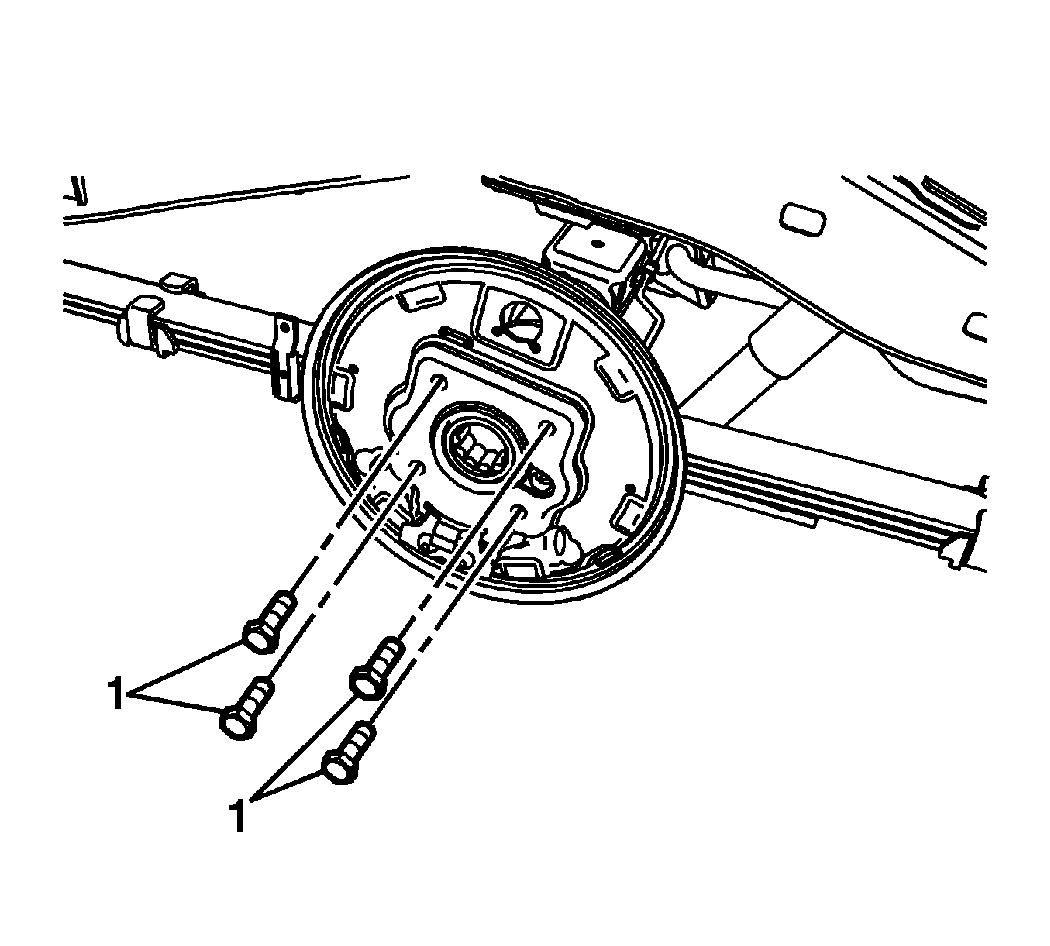

    2. Fig 2: Rear Brake Backing Plate Bolts
    GM2136349Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the rear brake backing plate bolts (1) and tighten to 135 N.m (100 lb ft).
  3. Install the rear axle shaft. Refer to Rear Axle Shaft Replacement .
  4. Install the wheel cylinder. Refer to Rear Brake Cylinder Replacement .
  5. Install the park brake cable to the rear brake backing plate. Refer to Parking Brake Rear Cable Replacement - Left Side or Parking Brake Rear Cable Replacement - Right Side .
  6. Install the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
