Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Brake Hose
    GM1339849Courtesy of GENERAL MOTORS CORP.
    NOTE: DO NOT reuse the old copper gaskets. Always use NEW metal copper gaskets.
  1. Install the copper gaskets on the brake hose.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the brake caliper bolt to the brake caliper and tighten the bolt to 40 N.m (32 lb ft).
  3. Remove the plug or cap from the exposed brake pipe fitting.
  4. Install the brake hose to the brake pipe.
    5. NOTE: Ensure that the brake hose is not twisted and does not come in contact with any of the suspension components.
  5. Using a backup wrench on the brake pipe fitting, tighten the brake hose fitting to 17 N.m (13 lb ft).

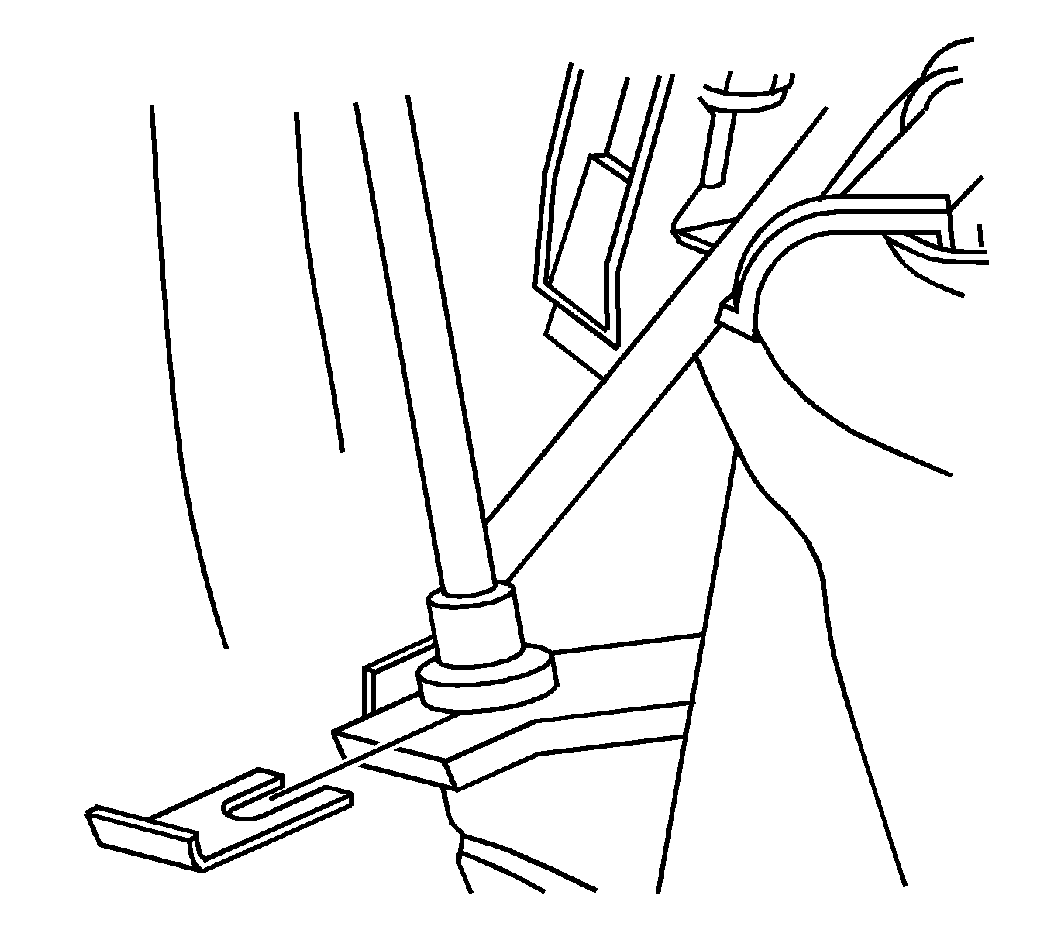

    6. Fig 2: View Of Front Brake Hose Retaining Clip
    GM1253275Courtesy of GENERAL MOTORS CORP.
    NOTE: Ensure that the retaining clip is properly seated.
  6. Install the new brake pipe retaining clip.
  7. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) .
    8. Fig 3: View Of Tire & Wheel Assembly
    GM1253298Courtesy of GENERAL MOTORS CORP.
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
