Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

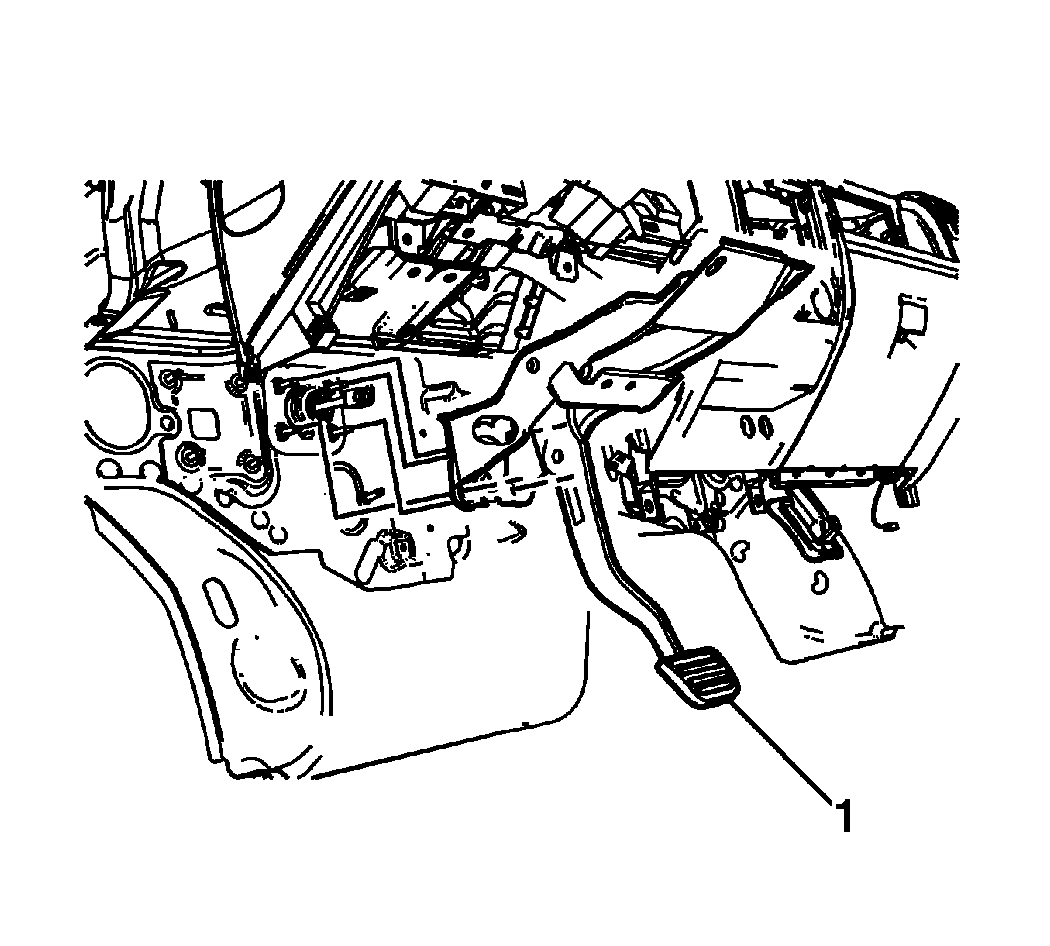

Fig 1: Brake Pedal Assembly

Courtesy of GENERAL MOTORS CORP.

Install the brake pedal assembly (1).

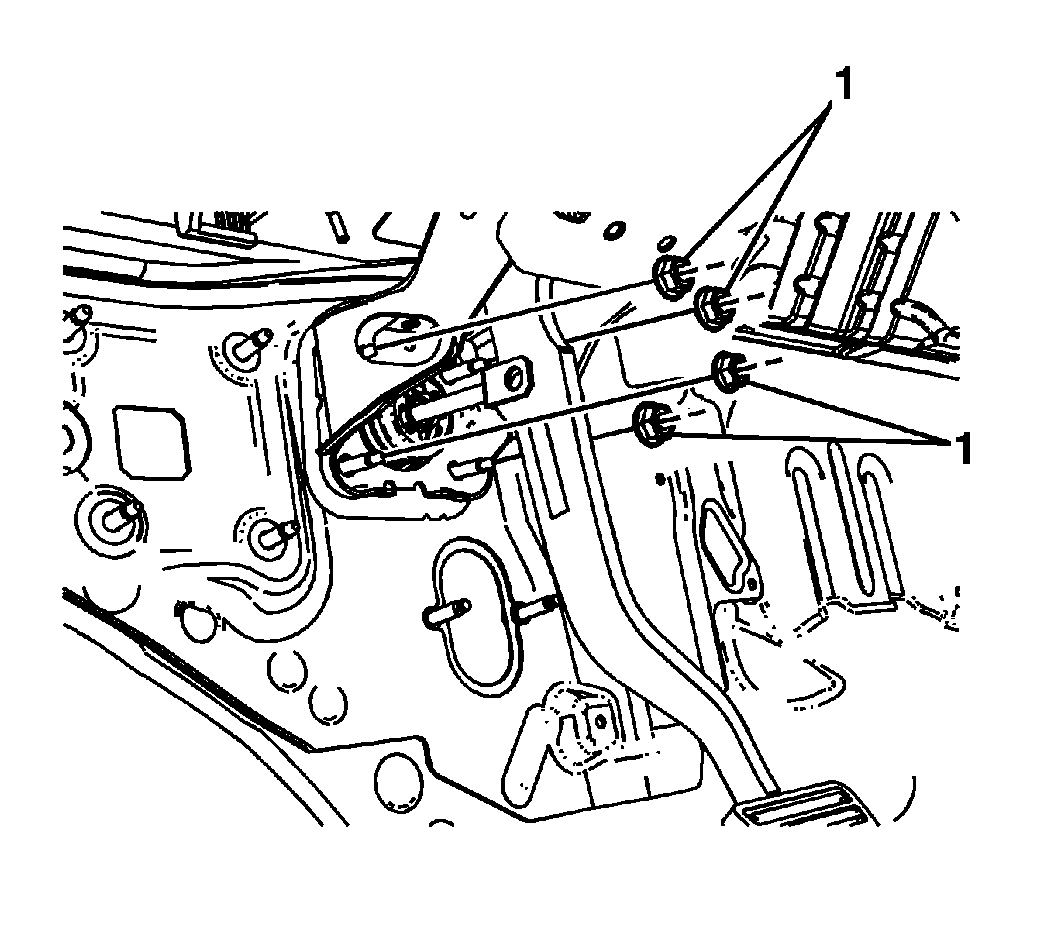

Fig 2: Power Vacuum Brake Booster Nuts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the power vacuum brake booster nuts (1) and tighten to 20 N.m (15 lb ft).

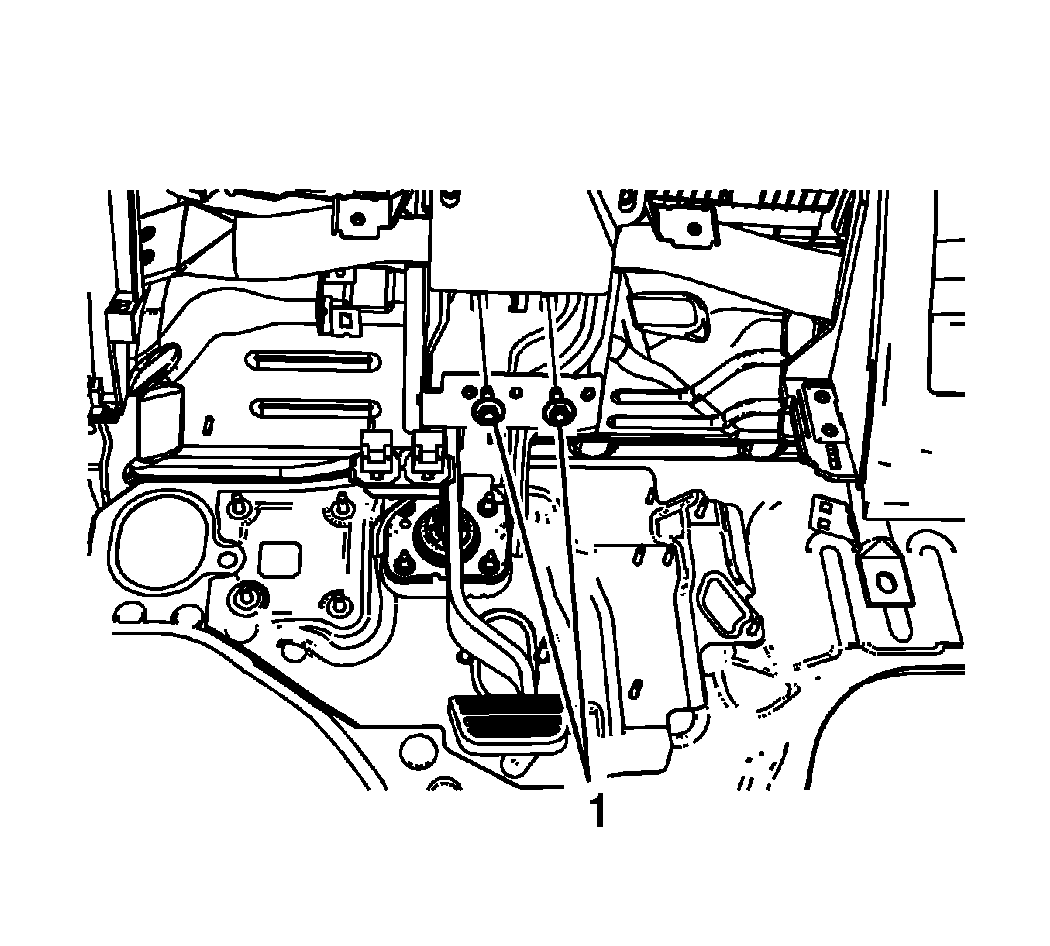

Fig 3: Upper Brake Pedal Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the upper brake pedal bracket bolts (1) and tighten to 27 N.m (20 lb ft).

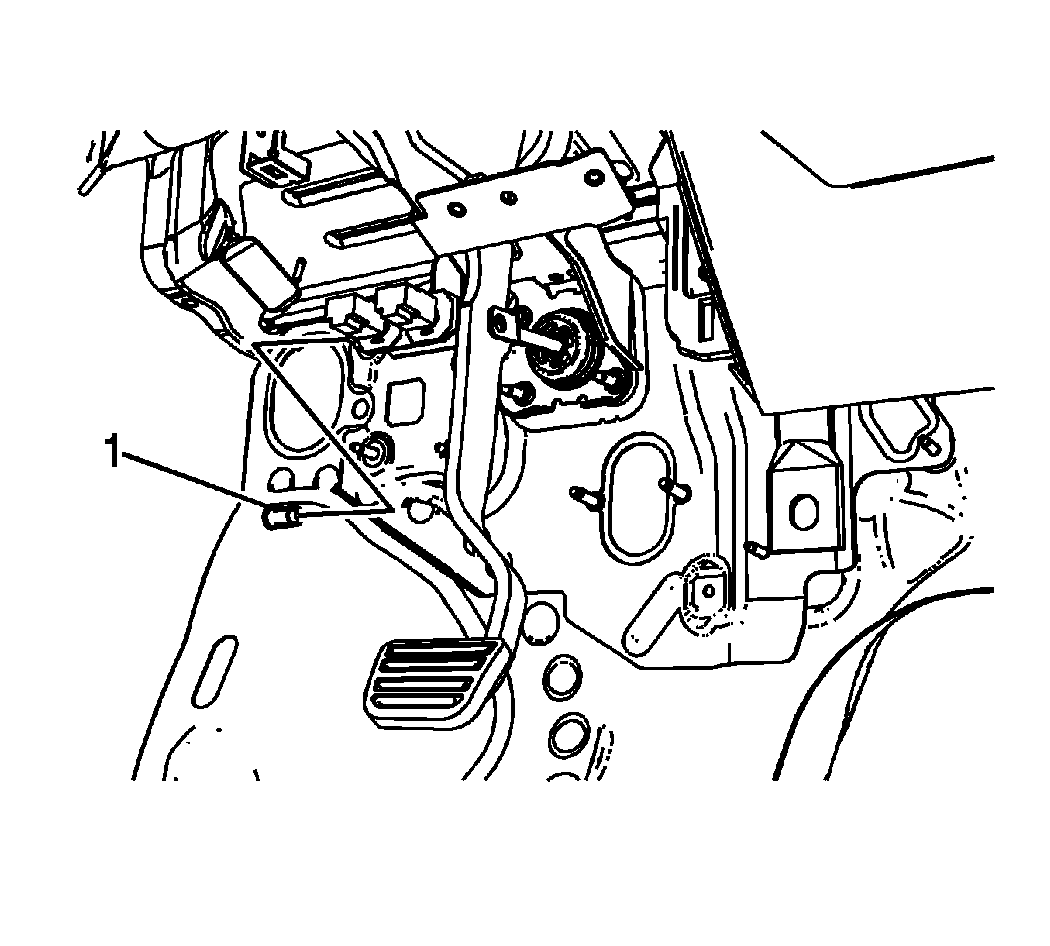

Fig 4: Brake Booster Pushrod Clevis Pin

Courtesy of GENERAL MOTORS CORP.

Install the brake booster pushrod clevis pin (1) to the pushrod and the brake pedal.

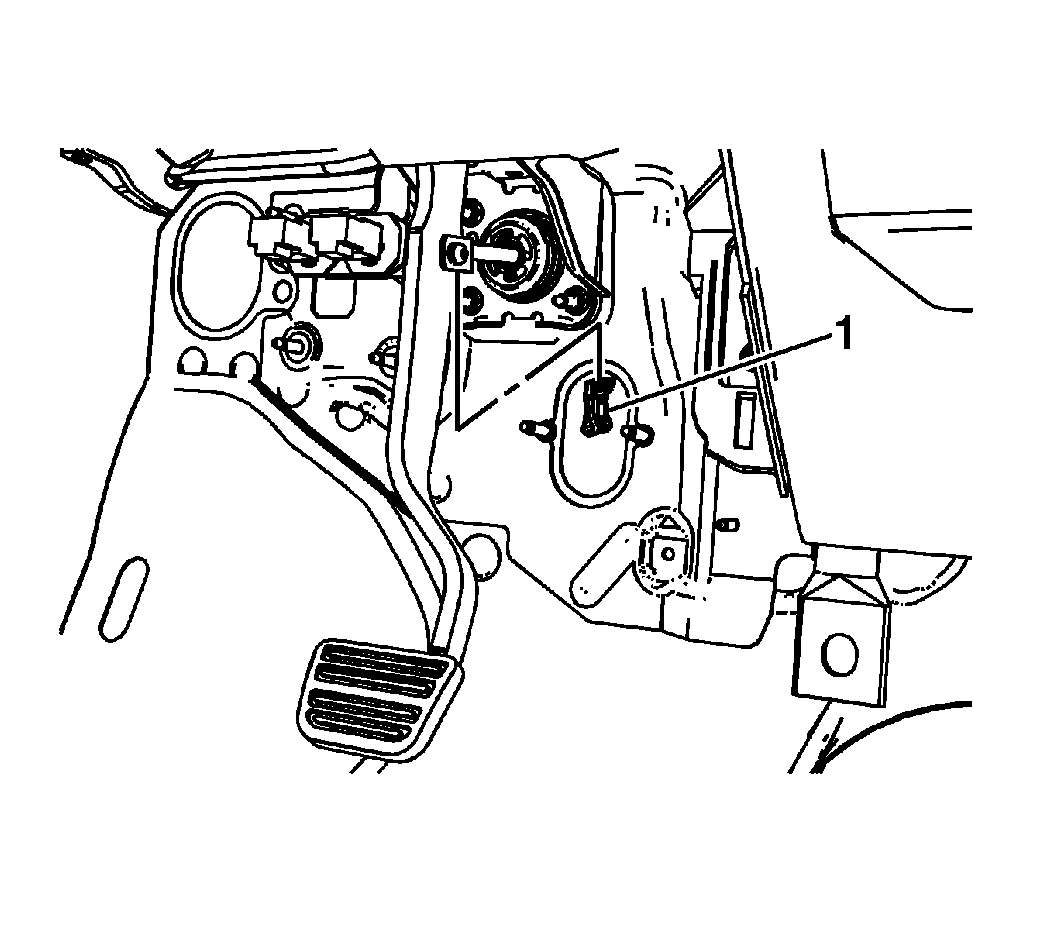

Fig 5: Brake Booster Pushrod Retainer

Courtesy of GENERAL MOTORS CORP.

Install the brake booster pushrod retainer (1).
Connect the stoplamp switch electrical connectors.
Install the steering column. Refer to Steering Column Replacement .
