Interior Lights Schematics

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

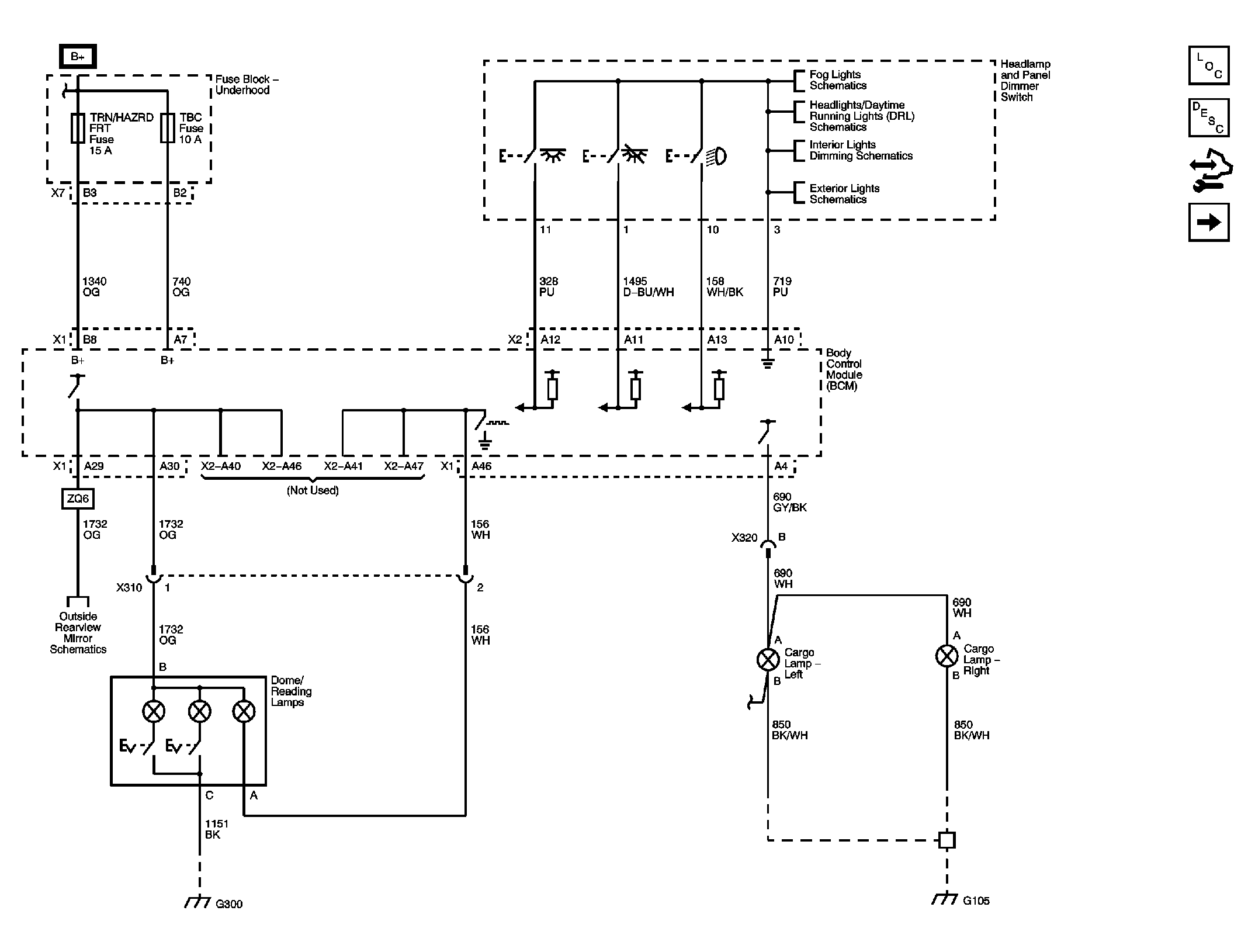

Fig 1: Courtesy Lamps (1 of 2) and Inadvertent Lamps
GM2242730Courtesy of GENERAL MOTORS CORP.

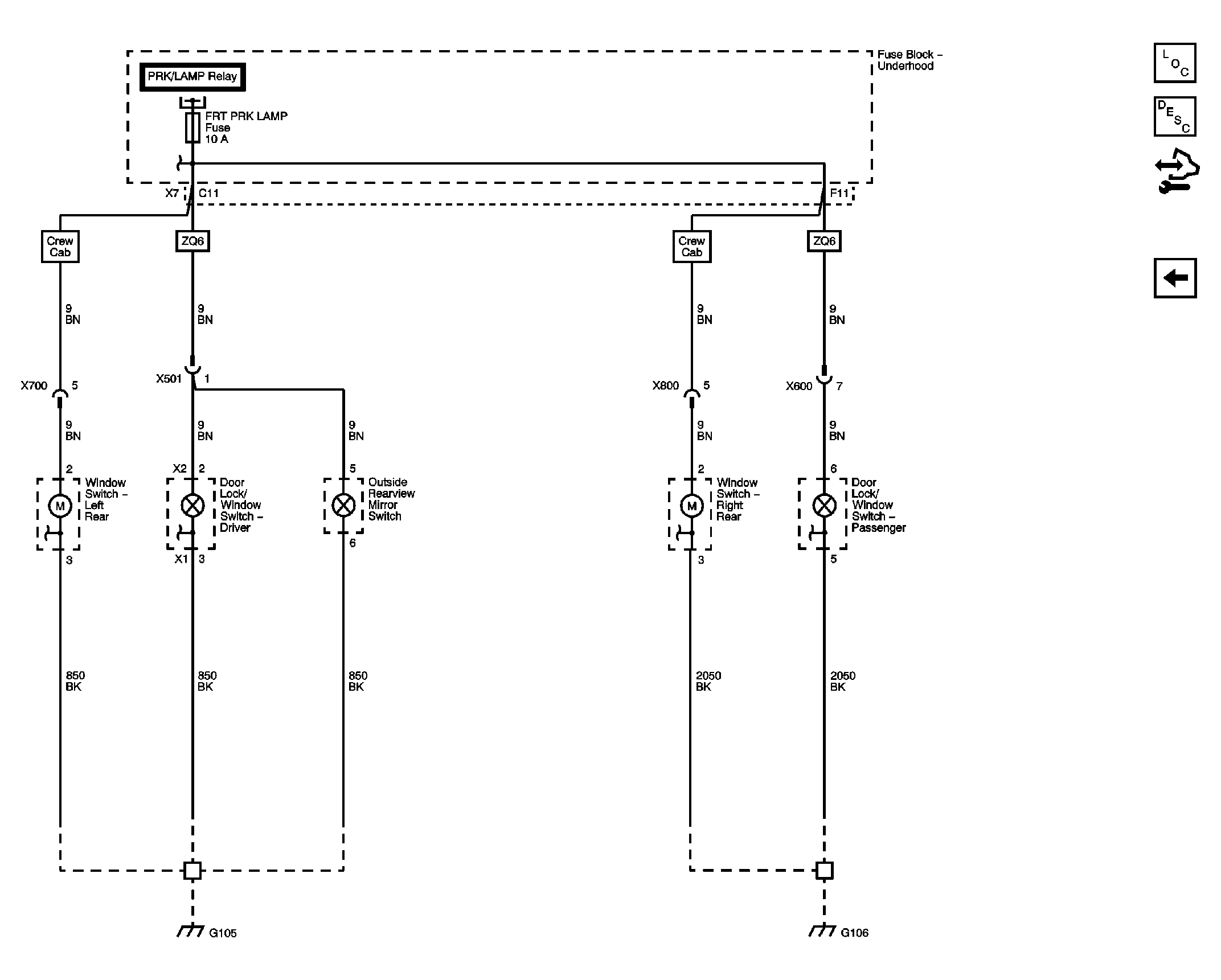

Fig 2: Courtesy Lamps (2 of 2)
GM2242732Courtesy of GENERAL MOTORS CORP.
