Installation Procedure
WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

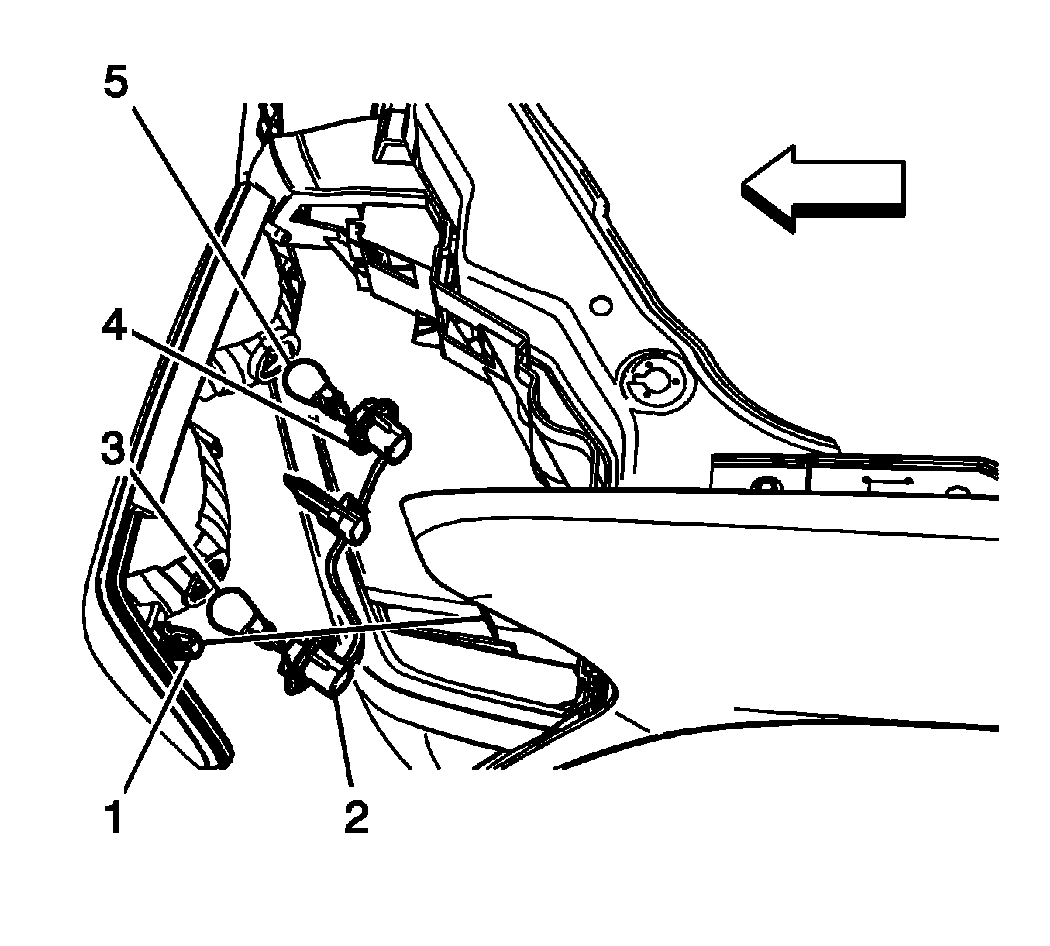

- Secure the bulbs (3,5) into the bulb sockets (2,4) and to the lamp assembly.
- Insert the inside edge of the lamp tabs to the grille support.
- Rotate the lamp assembly into the fender bracket.
- Push on the outboard edge of the lamp until an audible click is heard, when the lamp assembly is secure to the fender.
- Inspect the lamps for proper operation.
