Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

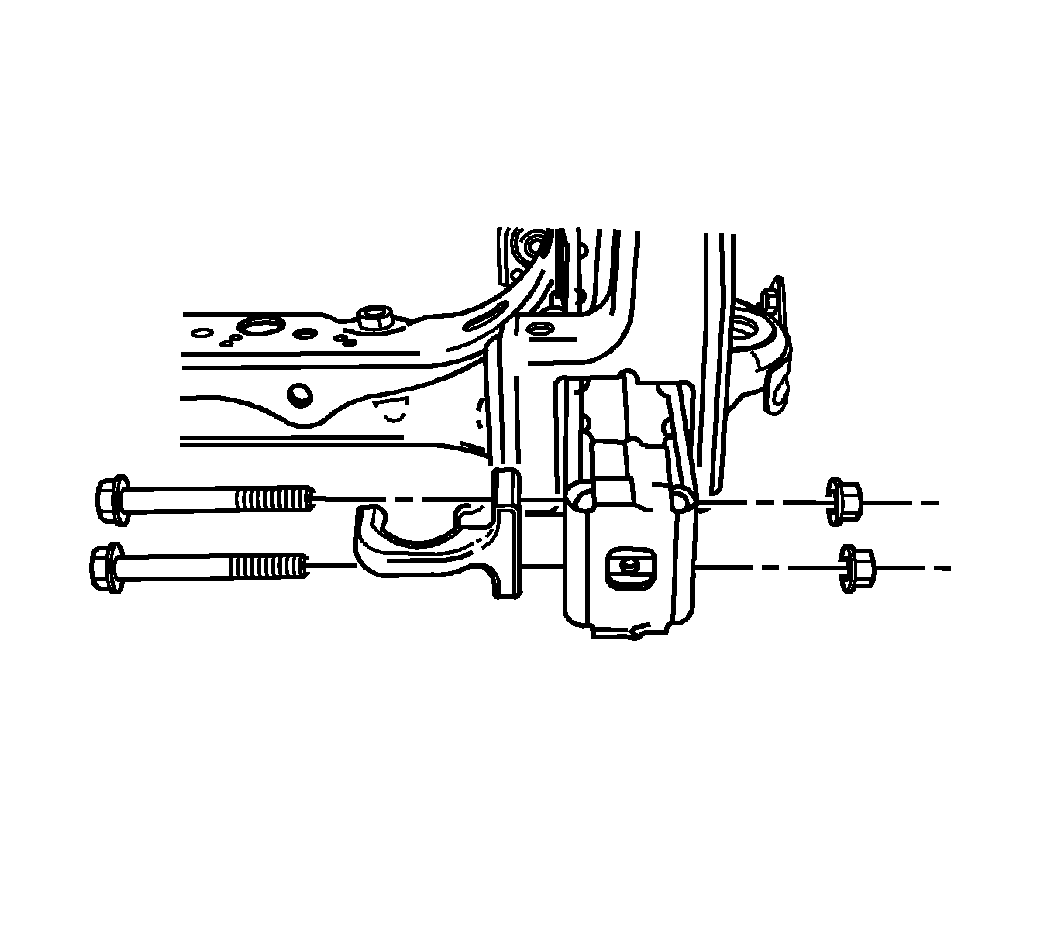

    Fig 1: View Of Left Tow Hook & Components
    GM1253085Courtesy of GENERAL MOTORS CORP.
  1. Install the left tow hook to the frame rail.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the nuts and the bolts to the frame rail and tighten the bolts to 100 N.m (74 lb ft).

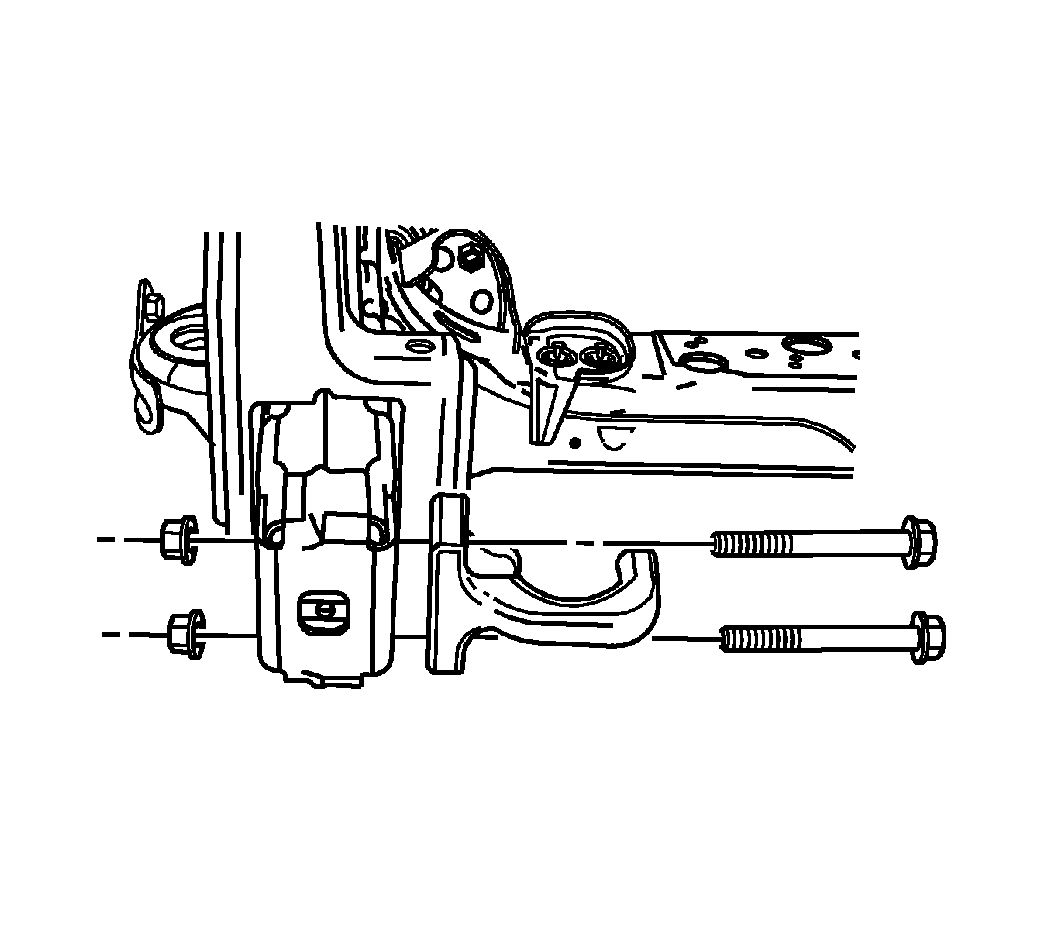

    3. Fig 2: View Of Right Tow Hook & Components
    GM1253083Courtesy of GENERAL MOTORS CORP.
  3. Install the left tow hook to the frame rail.
  4. Install the nuts and the bolts to the frame rail and tighten the bolts to 100 N.m (74 lb ft).
  5. Install the front bumper. Refer to Front Bumper Replacement .
