Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refer to SIR Warning .

Disable the supplemental inflatable restraint (SIR) System. Refer to SIR Disabling and Enabling .
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
Remove the shift lever. Refer to Shift Lever Replacement .

Fig 1: Identifying Park Lock Cable At Ignition Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Insert a small screwdriver into the slot on the ignition lock cylinder case and push against the locking tab to remove the automatic transmission park lock cable (1).
The ignition lock cylinder MUST be in the OFF-LOCK position.

Fig 2: View Of Automatic Transmission Shift Lock Control Actuator

Courtesy of GENERAL MOTORS CORP.

Use a small screwdriver to gently disconnect the automatic transmission shift lock actuator.

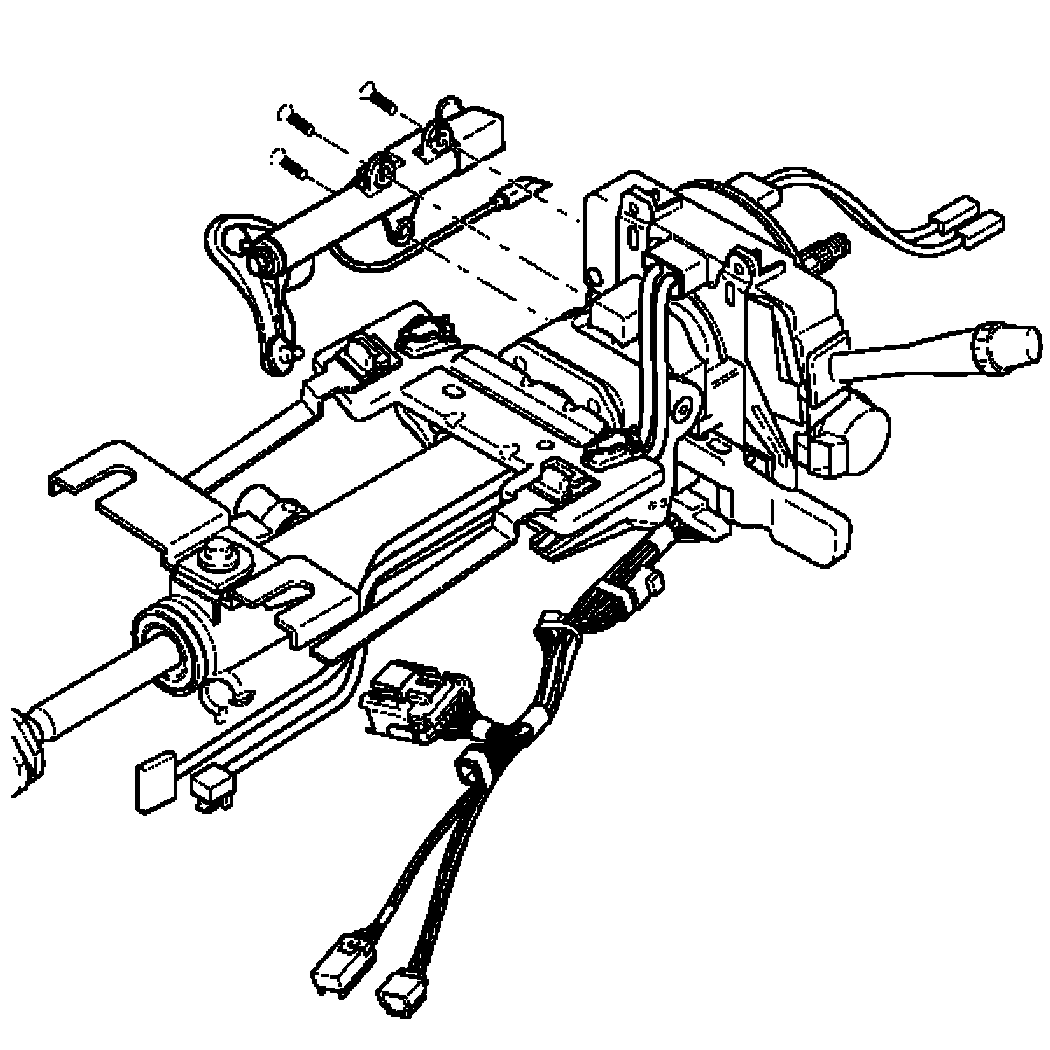

Fig 3: View Of Linear Shift Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the linear shift assembly bolts.
Remove the linear shift assembly.
