Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

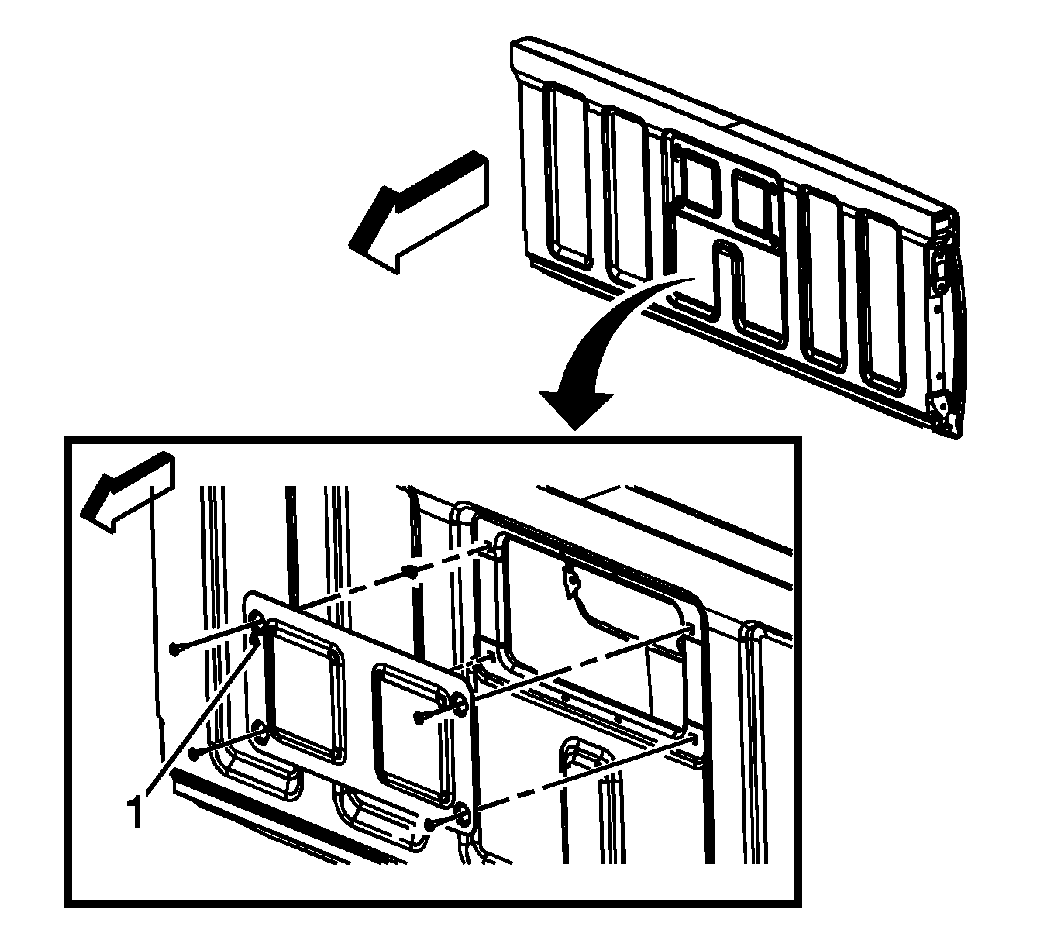

    Fig 1: View Of Endgate Cover
    GM1245393Courtesy of GENERAL MOTORS CORP.
  1. Install the endgate cover to the endgate (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the screws retaining the endgate cover to the endgate, starting at the hole marked with the triangle (1), and tighten to 2.5 N.m (22 lb in).
  3. Close the endgate.
