Installation Procedure

    Fig 1: Starter & Heat Shield
    GM663472Courtesy of GENERAL MOTORS CORP.
  1. Install the starter heat shield, if required.
    2. Fig 2: Transmission Cover & Starter
    GM663489Courtesy of GENERAL MOTORS CORP.
  2. Install the transmission cover to the starter.
    3. Fig 3: Starter & Bolts
    GM663527Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Position the starter and install the starter motor bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

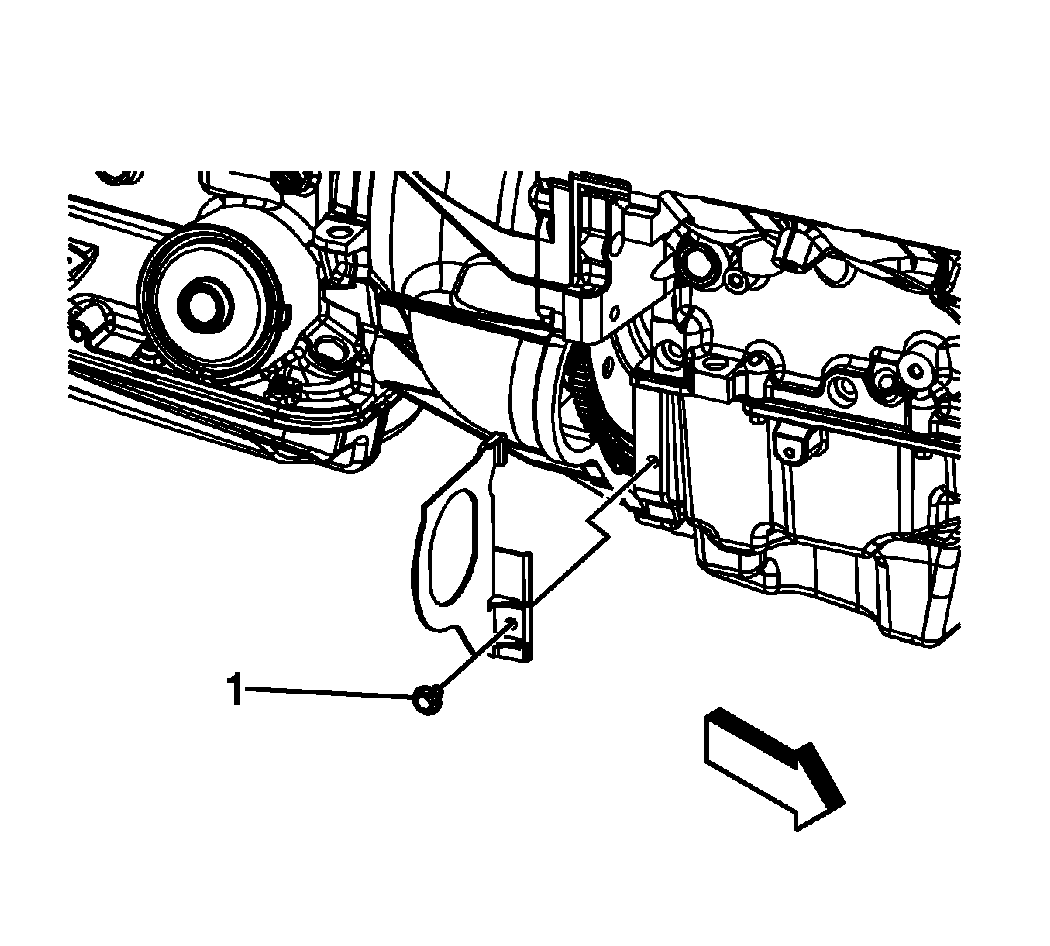

    4. Fig 4: Transmission Cover Bolt
    GM1902155Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission cover bolt (1).

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

    5. Fig 5: Engine Wiring Harness Electrical Connectors
    GM1899202Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector (2) to the starter motor.
  6. Install the engine wiring harness/positive battery cable terminal (5) to the starter and install the nut (4).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  7. Install the front propeller shaft. Refer to Front Propeller Shaft Replacement .
  8. Install the right front tire. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle.
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
