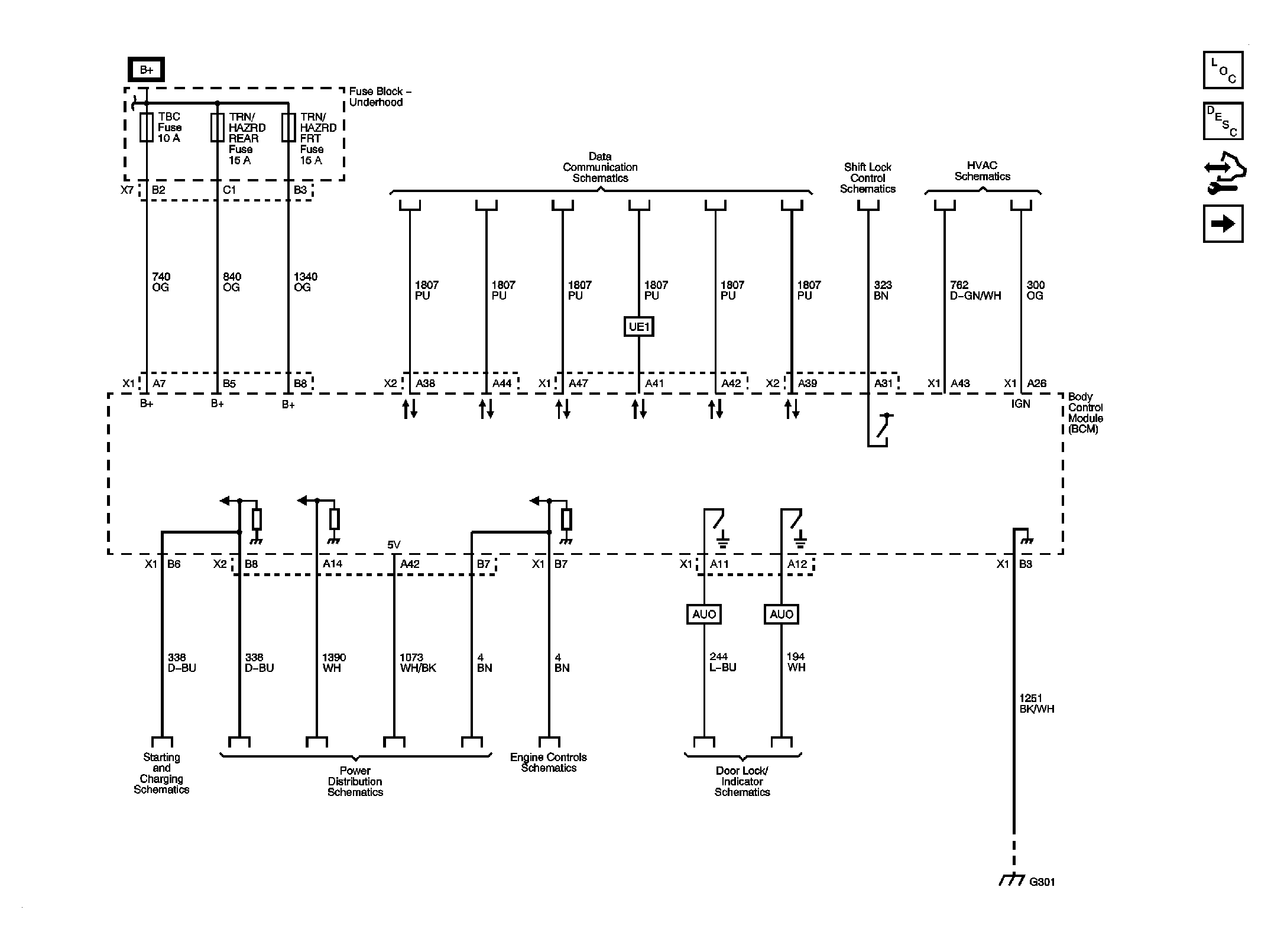

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS CORP.

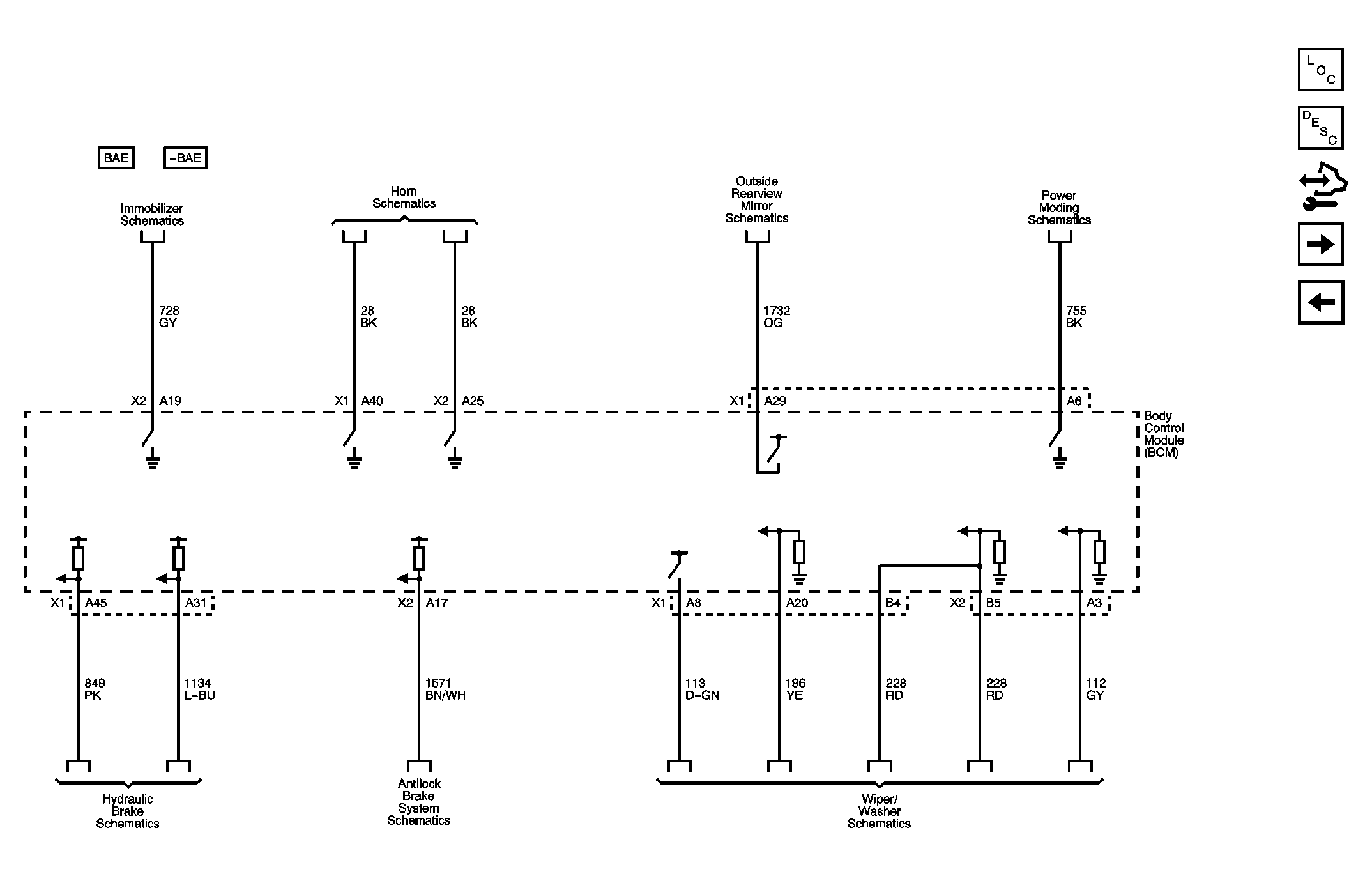

Fig 2: Theft, Horn, Mirror, Power Moding, Brake, and Wiper/Washer System References
Courtesy of GENERAL MOTORS CORP.

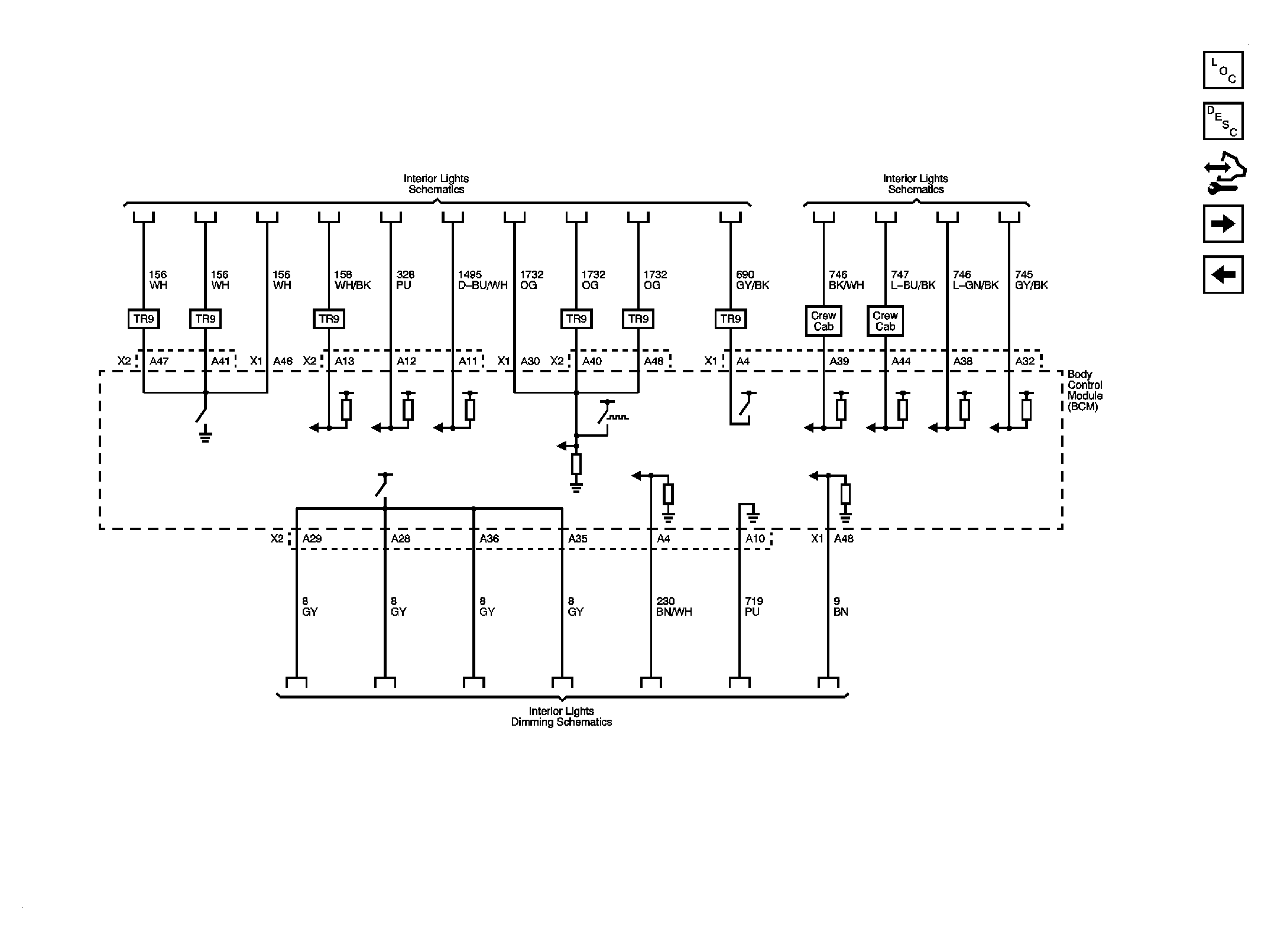

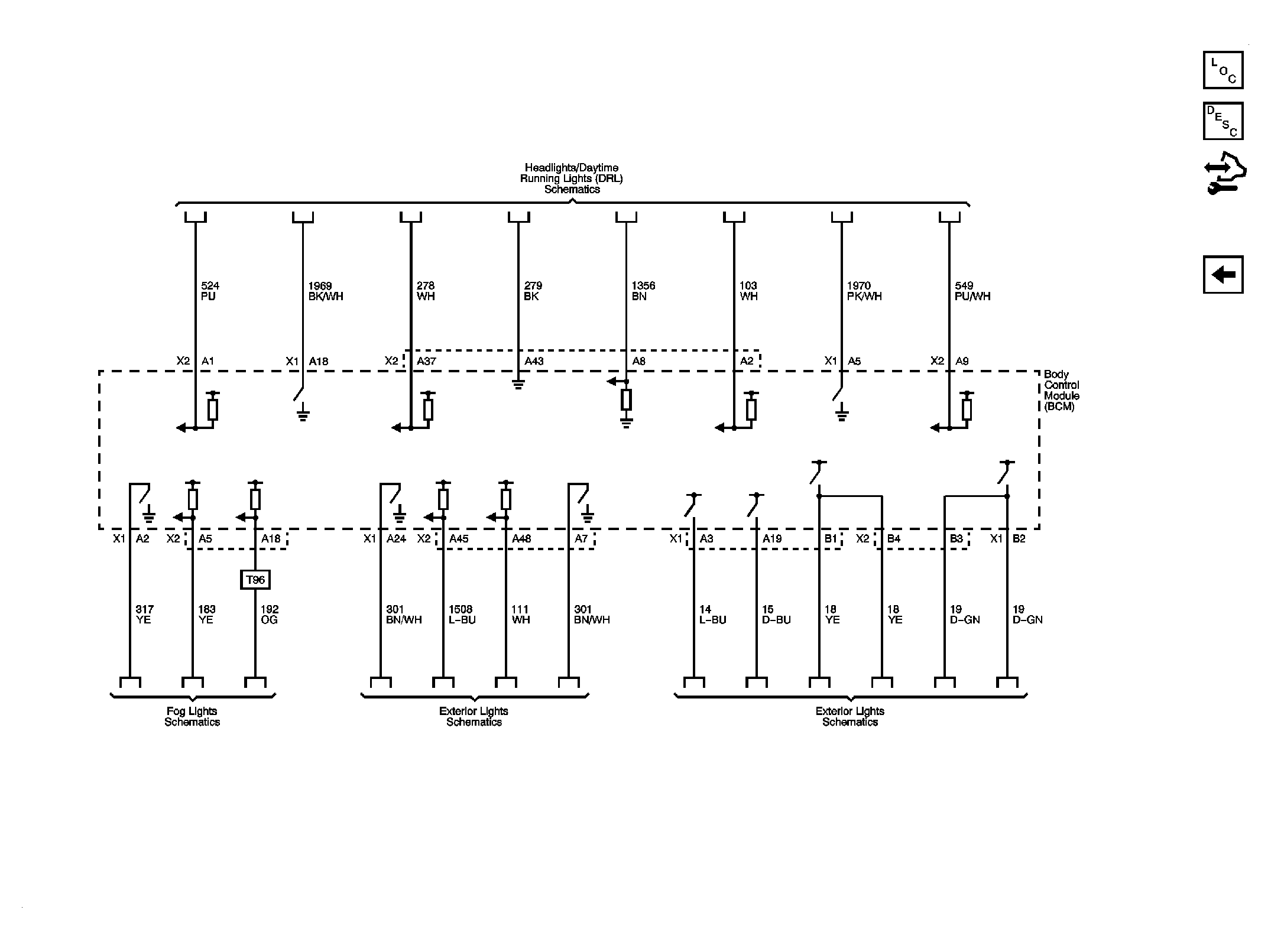

Fig 3: Interior Lights and Interior Lights Dimming References
