WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

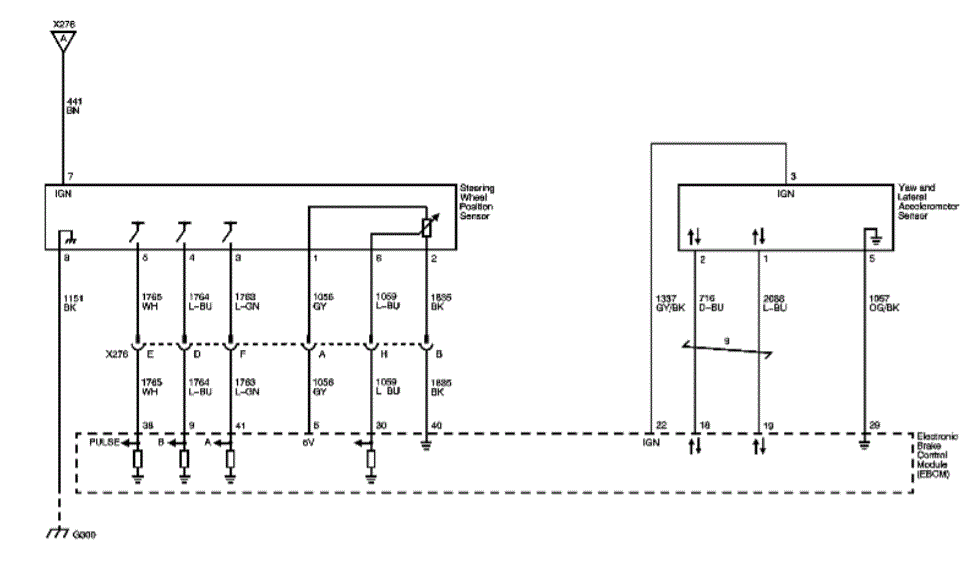

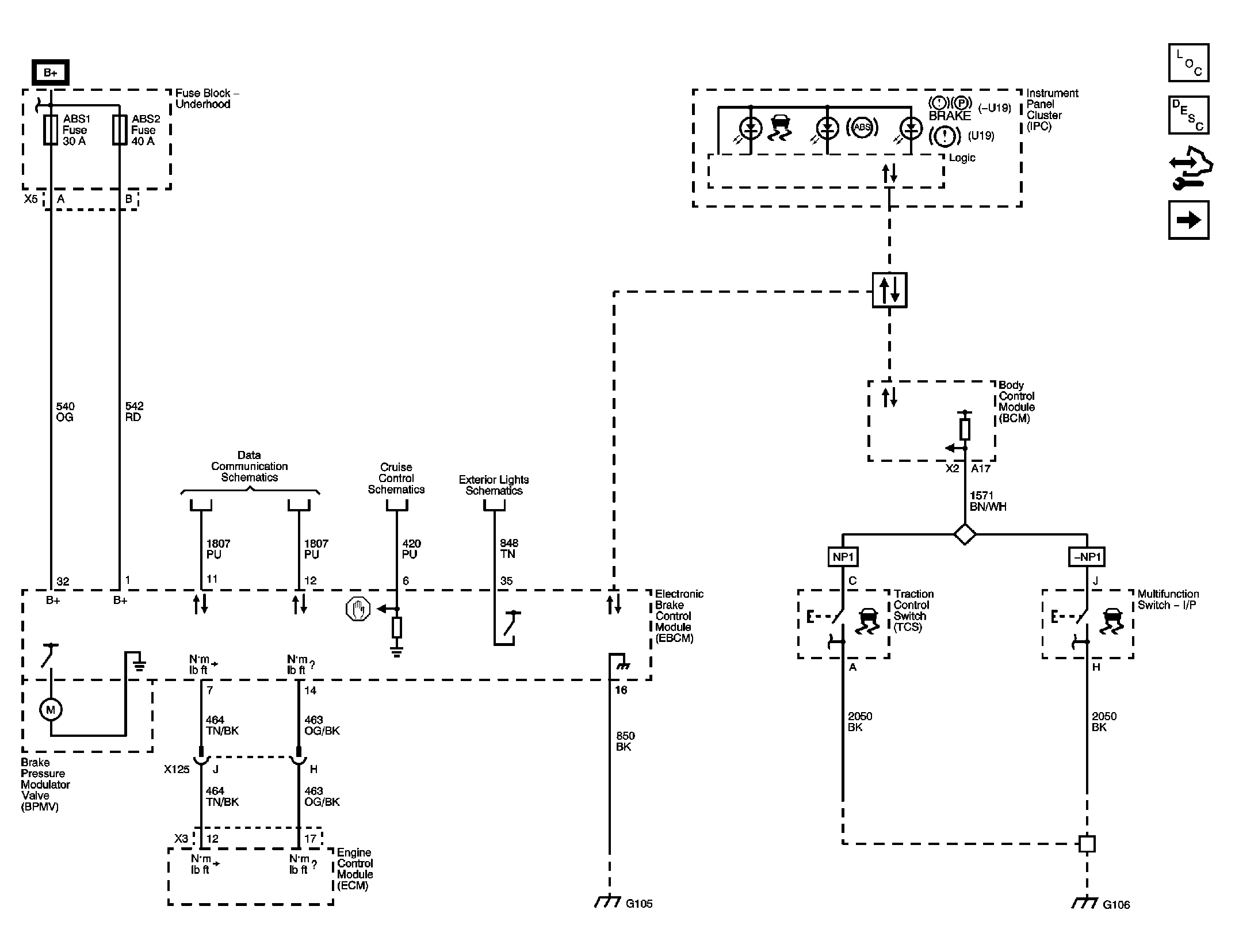

Fig 1: Power, Ground, Serial Data, Traction Control, and Vehicle Inputs
