Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

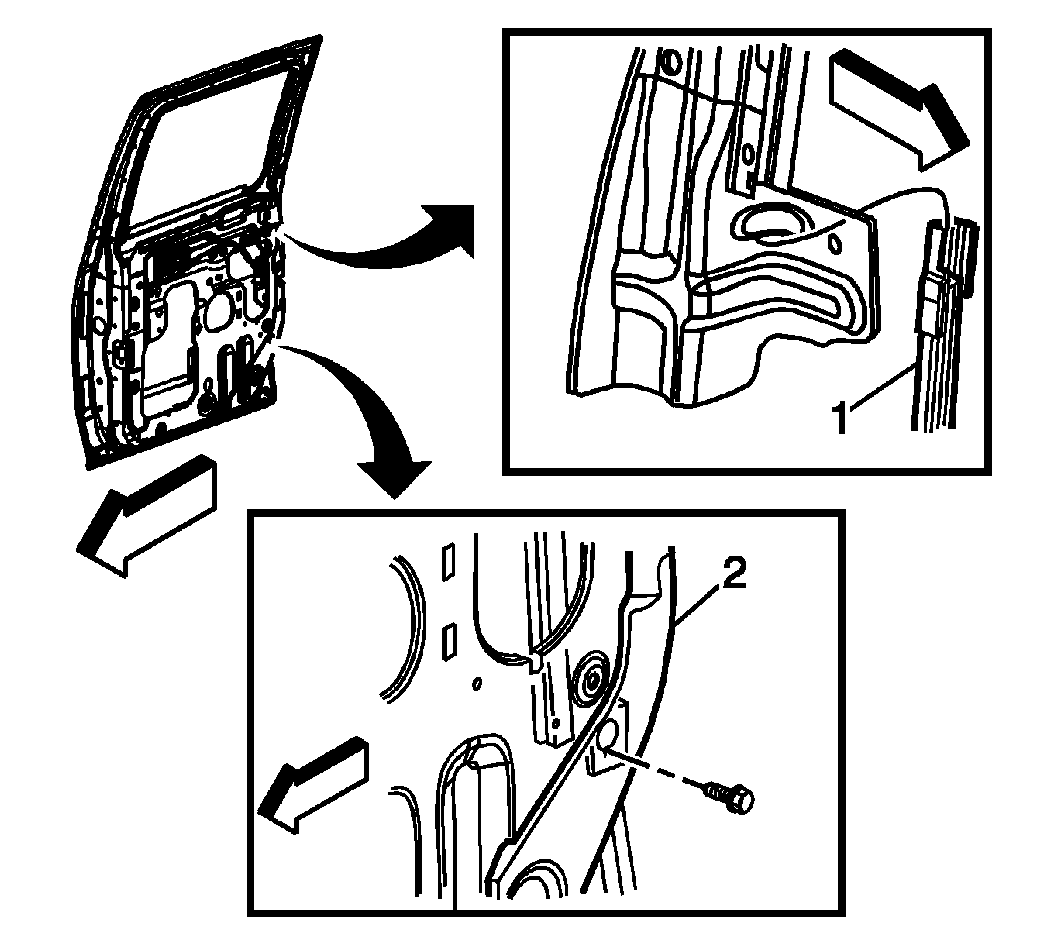

    Fig 1: View Of Window Run Channel & Inner Door Panel
    GM1302500Courtesy of GENERAL MOTORS CORP.
  1. Position the rear door window in the full up position.
  2. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  3. Remove the rear inside door handle. Refer to Rear Side Door Inside Handle Replacement .
  4. Remove the rear door speaker. Refer to Radio Rear Side Door Speaker Replacement .
  5. Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  6. Remove the bolt retaining the rear door window run channel to the inner door panel (2).
  7. Slide the window run channel (1) down out of the upper window frame.
  8. Remove the window run channel from the rear door.
