Front Side Door Window Switch Replacement - Right Side

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

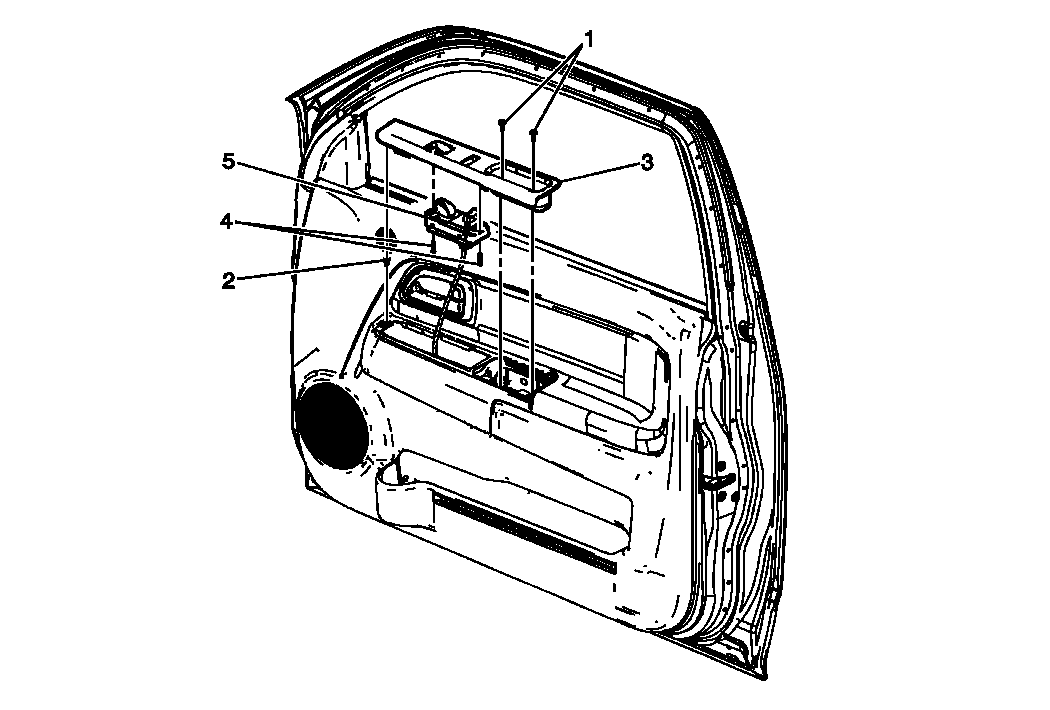

Fig 1: View Of Passenger Front Door Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch Plate Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Door Lock Switch Plate Retainer
3	Door Lock Switch Plate Assembly Tip: Disconnect electrical connector.
4	Front Door Window Switch Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
5	Front Door Window Switch Assembly
