Installation Procedure

  1. Perform the following procedure before installing the upper intermediate steering shaft bolt:
    1. Remove all traces of the original adhesive patch.
    2. Clean the threads of the bolt with denatured alcohol, or equivalent, and allow to dry.
    3. Apply threadlocker GM P/N 12345493 (Canadian P/N 10953488) or blue, medium LOCTITE™ 242.
  2. Position the upper intermediate steering shaft to the vehicle.

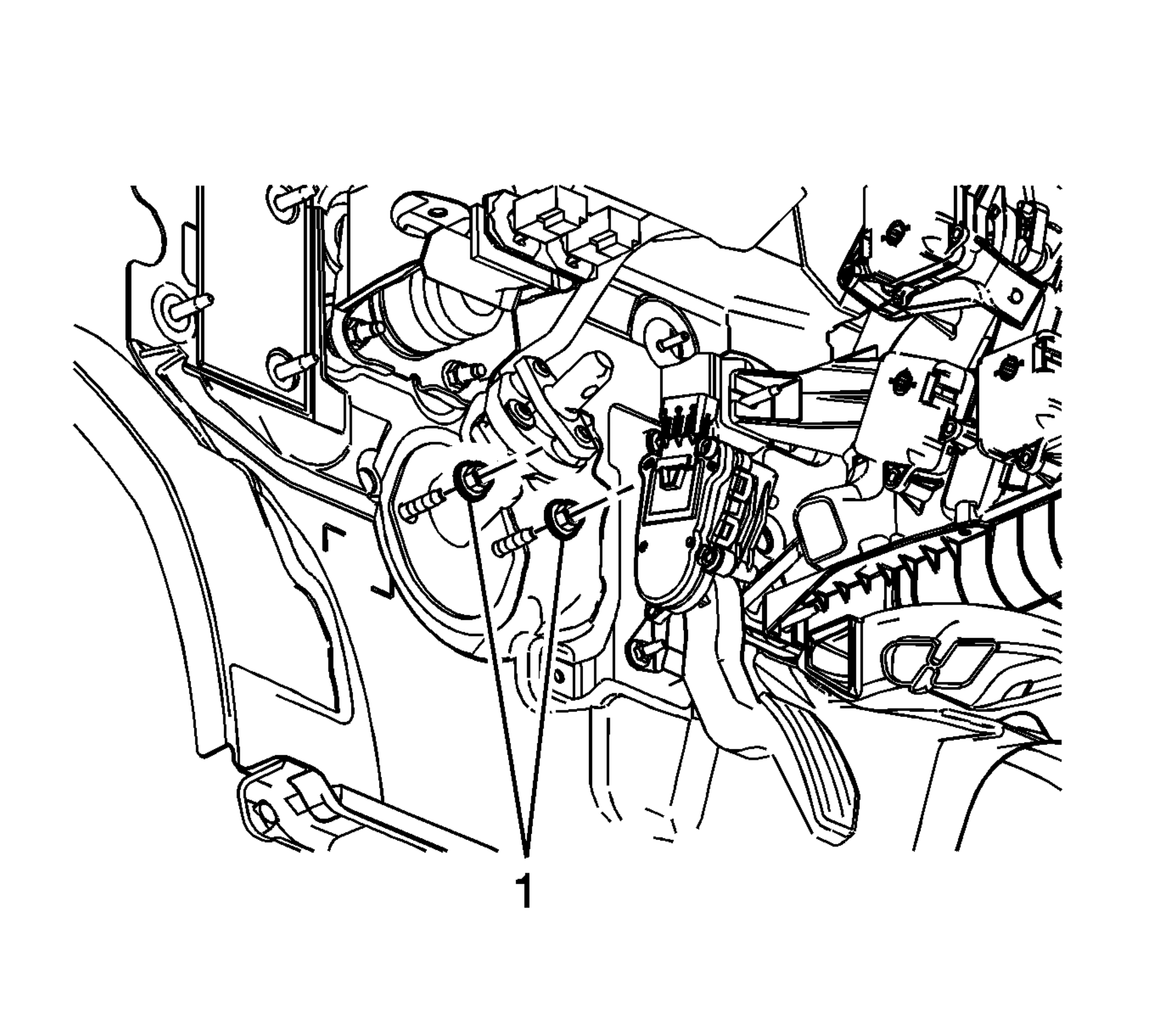

    3. Fig 1: Steering Column Nuts
    GM2092818Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the steering column nuts (1).

    Tighten:  Tighten the nuts to 30 N.m (22 lb ft).

  4. Install the steering column. Refer to Steering Column Replacement .
    5. Fig 2: Identifying Upper Intermediate Steering Shaft Bolt
    GM2092820Courtesy of GENERAL MOTORS CORP.
  5. Install the upper intermediate steering shaft bolt (1) at the lower intermediate steering shaft.

    Tighten:  Tighten the bolt to 23 N.m (17 lb ft).
