Steering Shaft Upper Bearing Spring Replacement

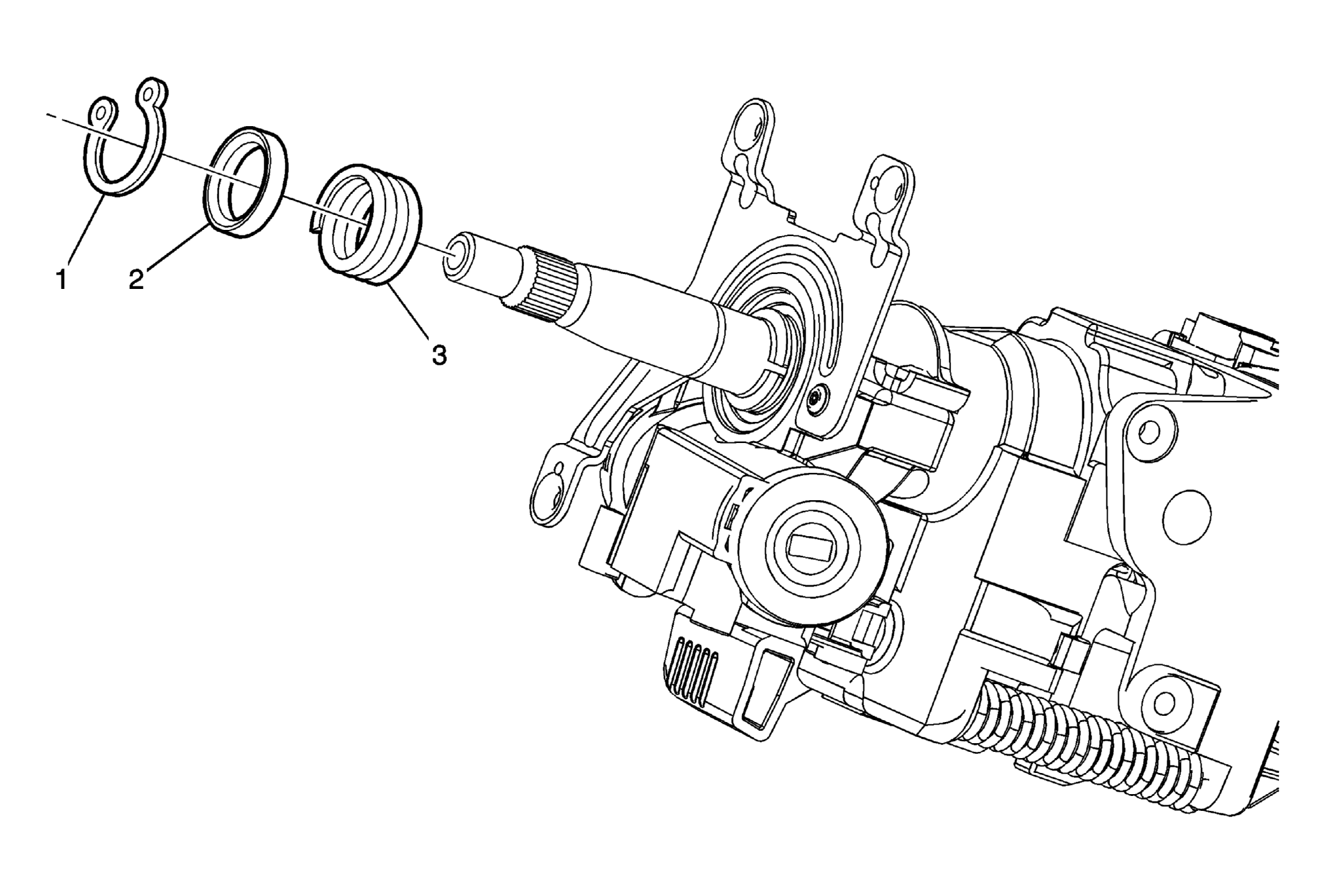

Fig 1: Steering Shaft Upper Bearing Spring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Inflatable Restraint Module Coil Replacement .
1	Steering Shaft Lock Plate Retaining Ring
2	Steering Column Tilt Spring Retainer
3	Steering Shaft Upper Bearing Spring
