Door Component Views

Fig 1: Door Components

Courtesy of GENERAL MOTORS CORP.

Fig 2: Driver Door Components (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Outside Rearview Mirror Switch
3	X510
4	X500
5	Window Motor - Driver
6	Speaker - Left Front
7	Door Lock/Window Switch - Driver
8	Door Lock/Window Switch - Driver X1
9	Door Lock/Window Switch - Driver X2
10	Door Lock Actuator - Driver
11	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
12	Key Lock Cylinder

Fig 3: Passenger Door Components (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - Passenger
2	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3	Door Lock Actuator - Passenger
4	Door Lock/Window Switch - Passenger
5	Speaker - Right Front
6	X600
7	X610
8	Outside Rearview Mirror - Passenger

Fig 4: Left Rear Door Components (SUV)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Left Rear Door Components (Truck)

Courtesy of GENERAL MOTORS CORP.

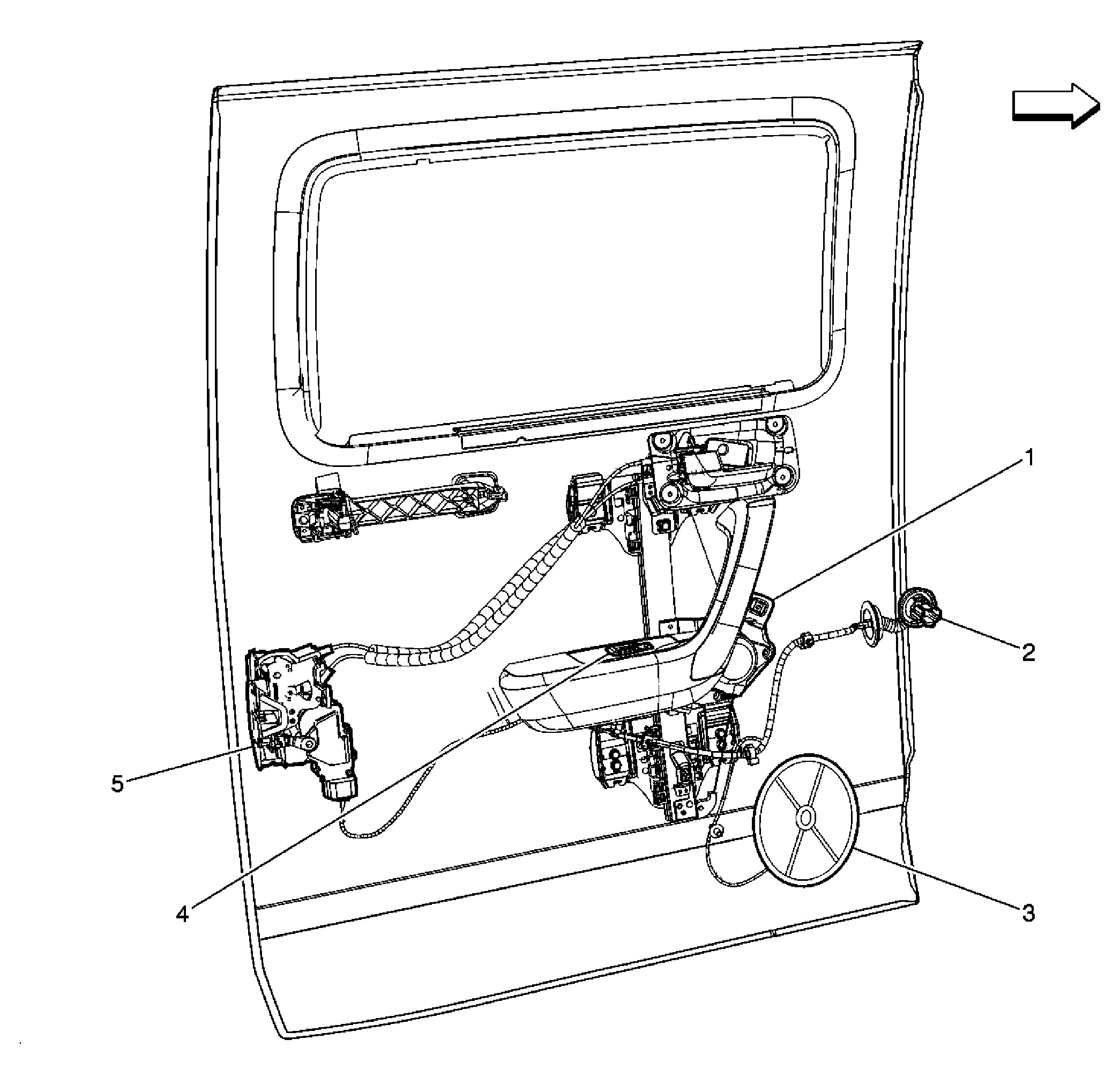

Fig 6: Right Rear Door Components (SUV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Right Rear
2	Window Switch - Right Rear
3	Speaker - Right Rear
4	X800
5	Window Motor - Right Rear

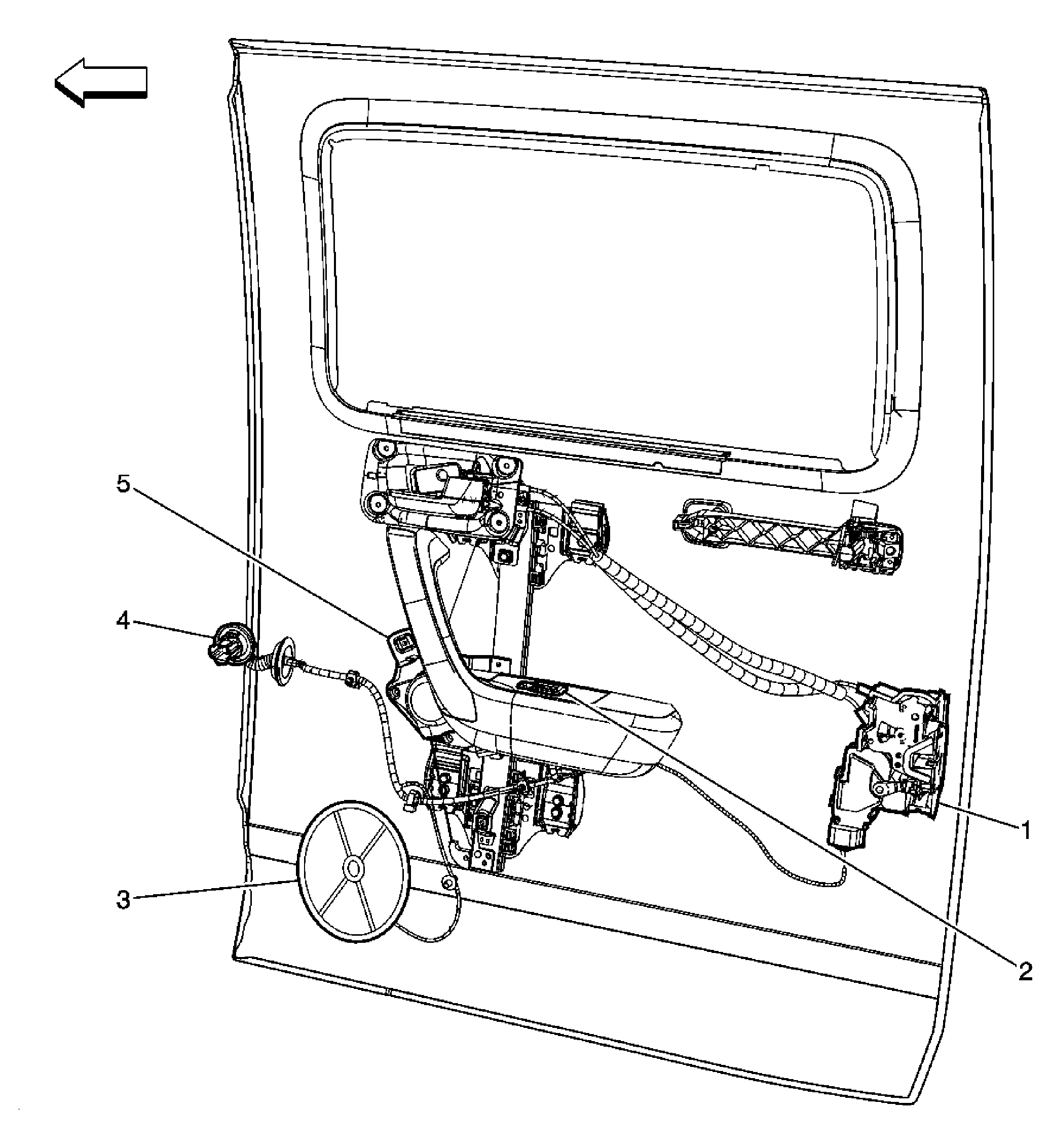

Fig 7: Right Rear Door Components (Truck)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Right Rear
2	Window Switch - Right Rear
3	Speaker - Right Rear
4	X800
5	Window Motor - Right Rear
