Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

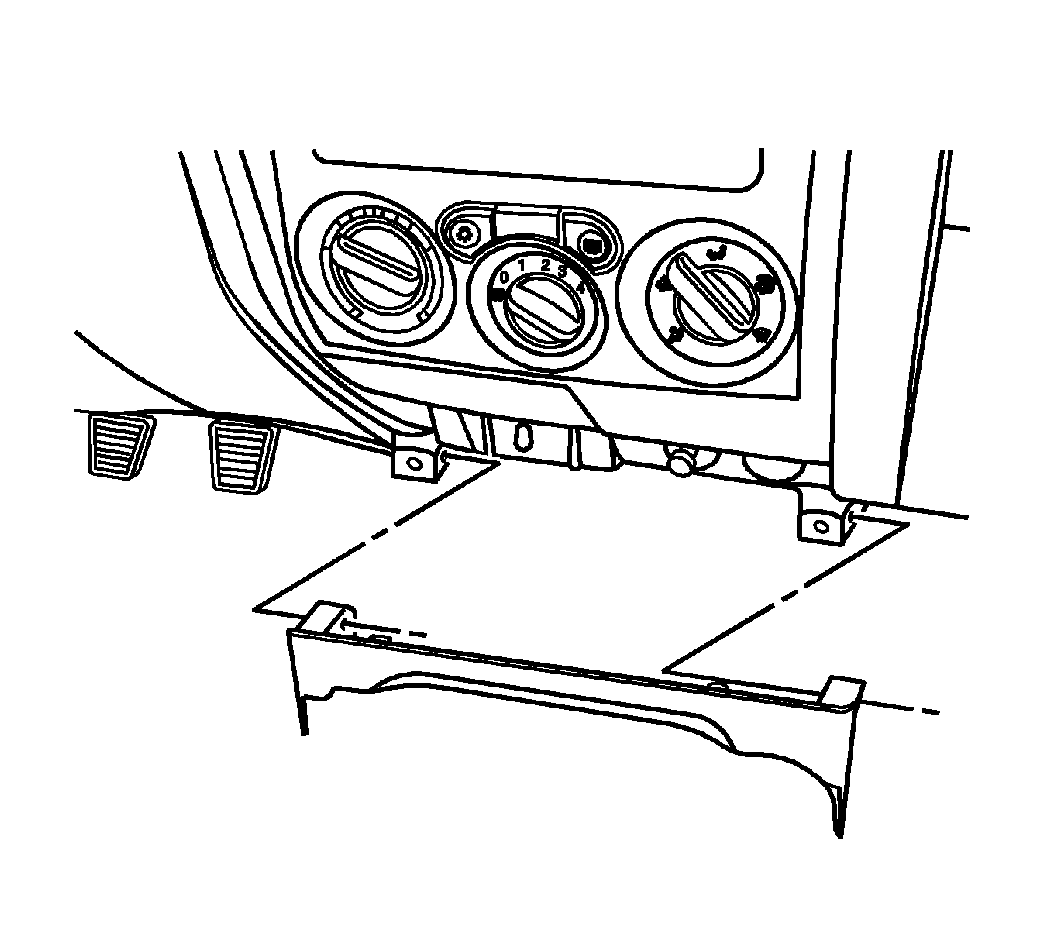

Fig 1: View Of Lower I/P Trim

Courtesy of GENERAL MOTORS CORP.

Install the lower center I/P trim to the vehicle.

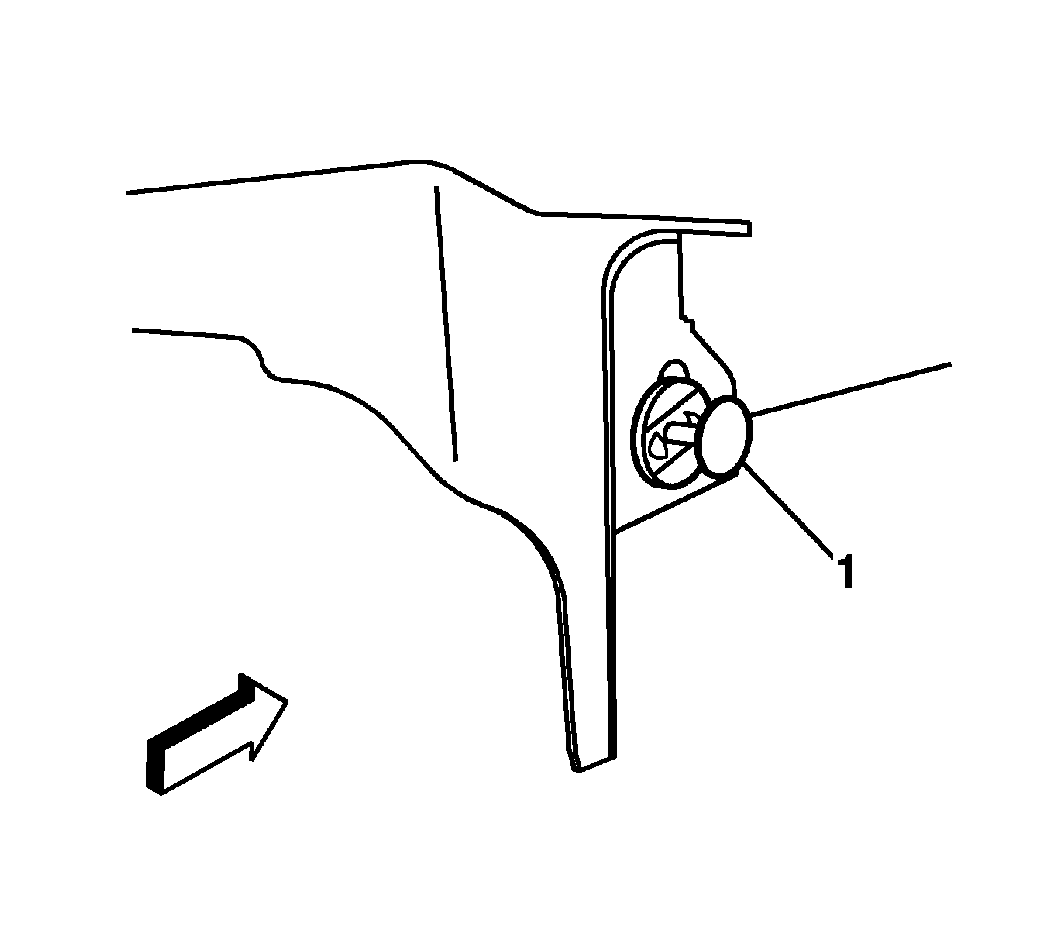

Fig 2: View Of Trim Push-Pin Base

Courtesy of GENERAL MOTORS CORP.

Install the base (1) of the push-pin, right and left side.

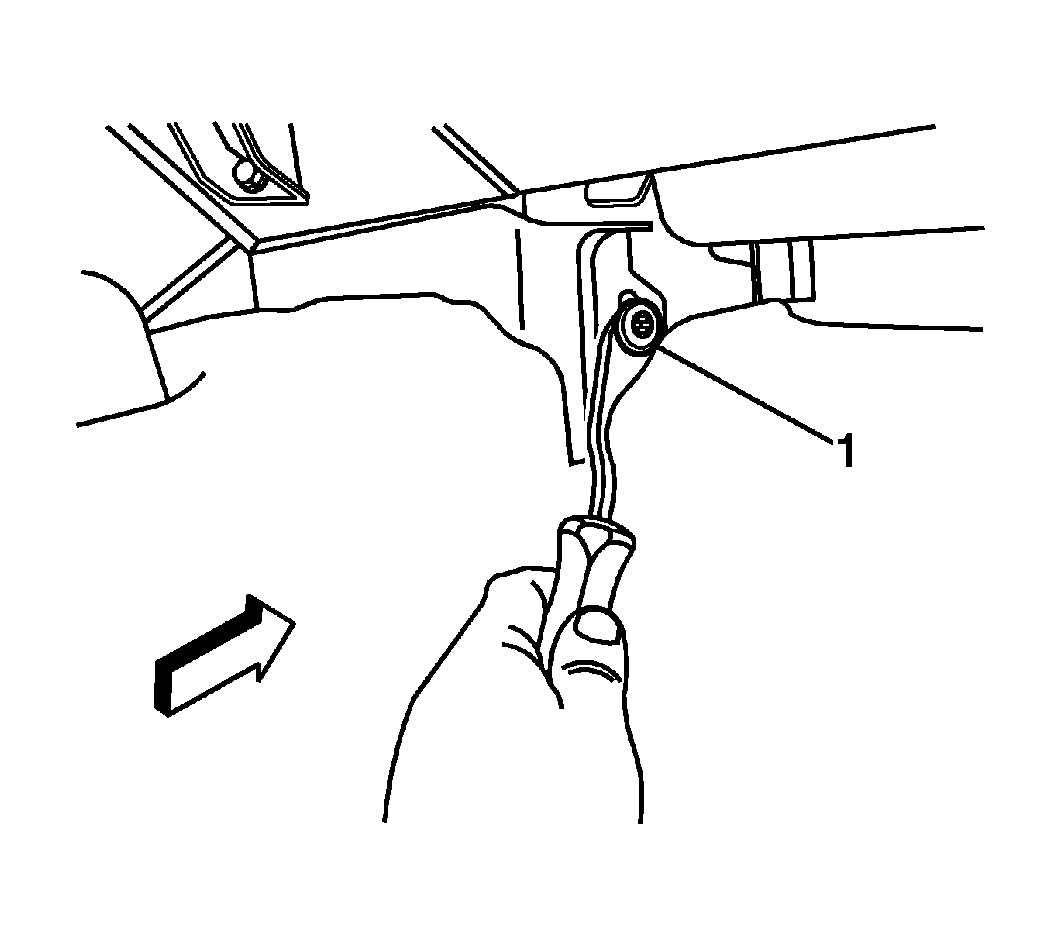

Fig 3: View Of Trim Push-Pin Head

Courtesy of GENERAL MOTORS CORP.

Install the head (1) of the push-pin, right and left side.
