Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

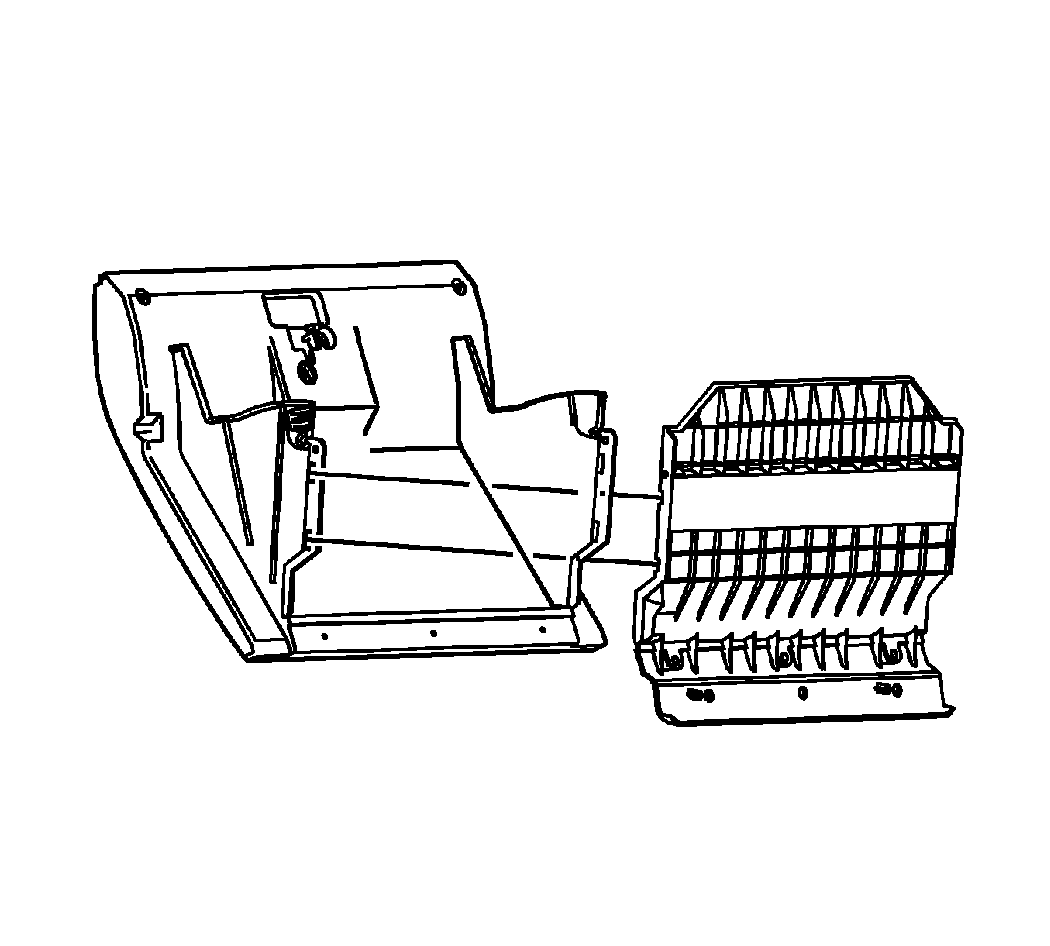

    Fig 1: View Of Storage Compartment Back Panel
    GM1251615Courtesy of GENERAL MOTORS CORP.
  1. Install the back panel to the storage compartment.
    2. CAUTION: Refer to Fastener Caution .

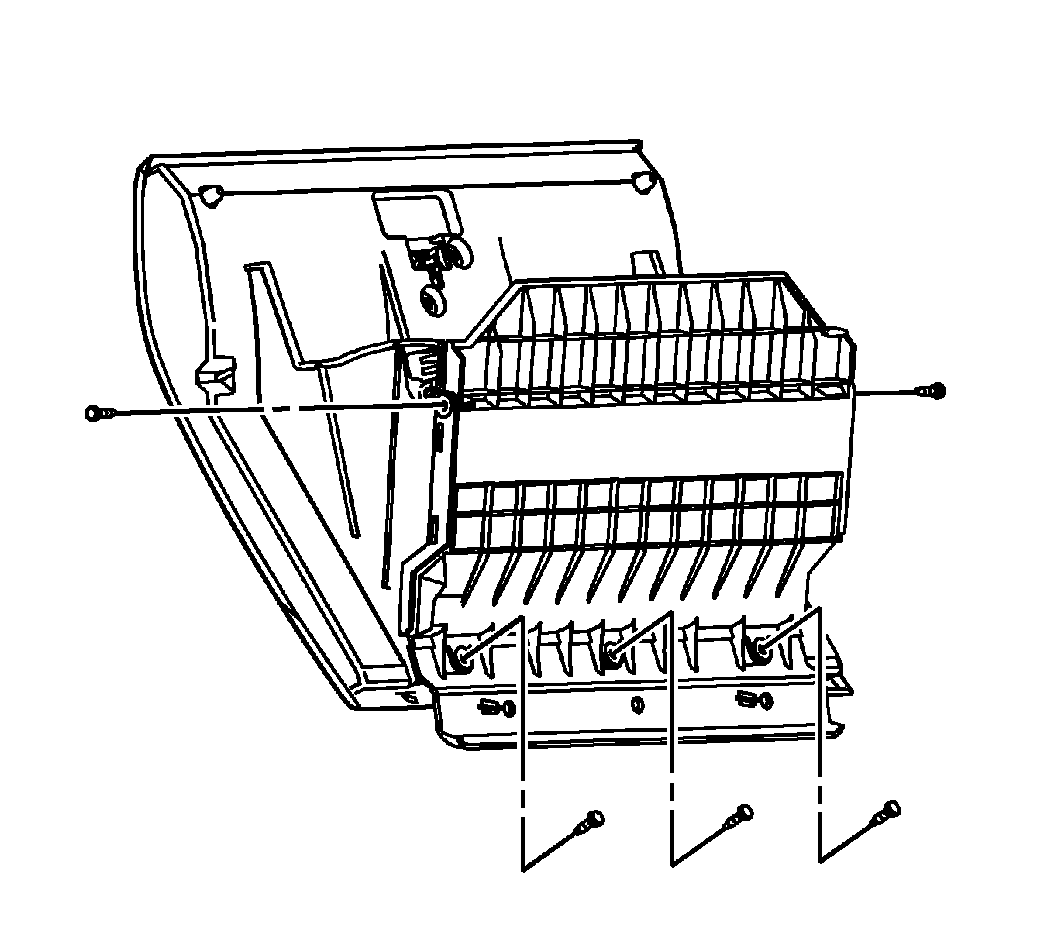

    Fig 2: View Of Storage Compartment Back Panel Retaining Screws
    GM1251625Courtesy of GENERAL MOTORS CORP.
  2. Install the screws retaining the storage compartment back panel. Tighten the screws to 3 N.m (27 lb in).
  3. Install the instrument panel (I/P) storage compartment assembly. Refer to Instrument Panel Storage Compartment Replacement .
