Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Attach the center air outlets to the trim plate before installing the trim plate to the I/P.

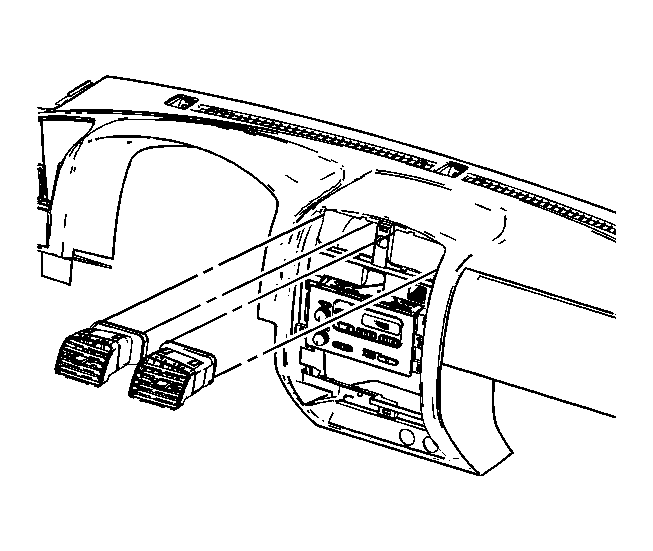

Fig 1: View Of Center Air Outlets

Courtesy of GENERAL MOTORS CORP.

If necessary, install the center air outlets to the trim panel. Refer to Instrument Panel Center Air Outlet Replacement .

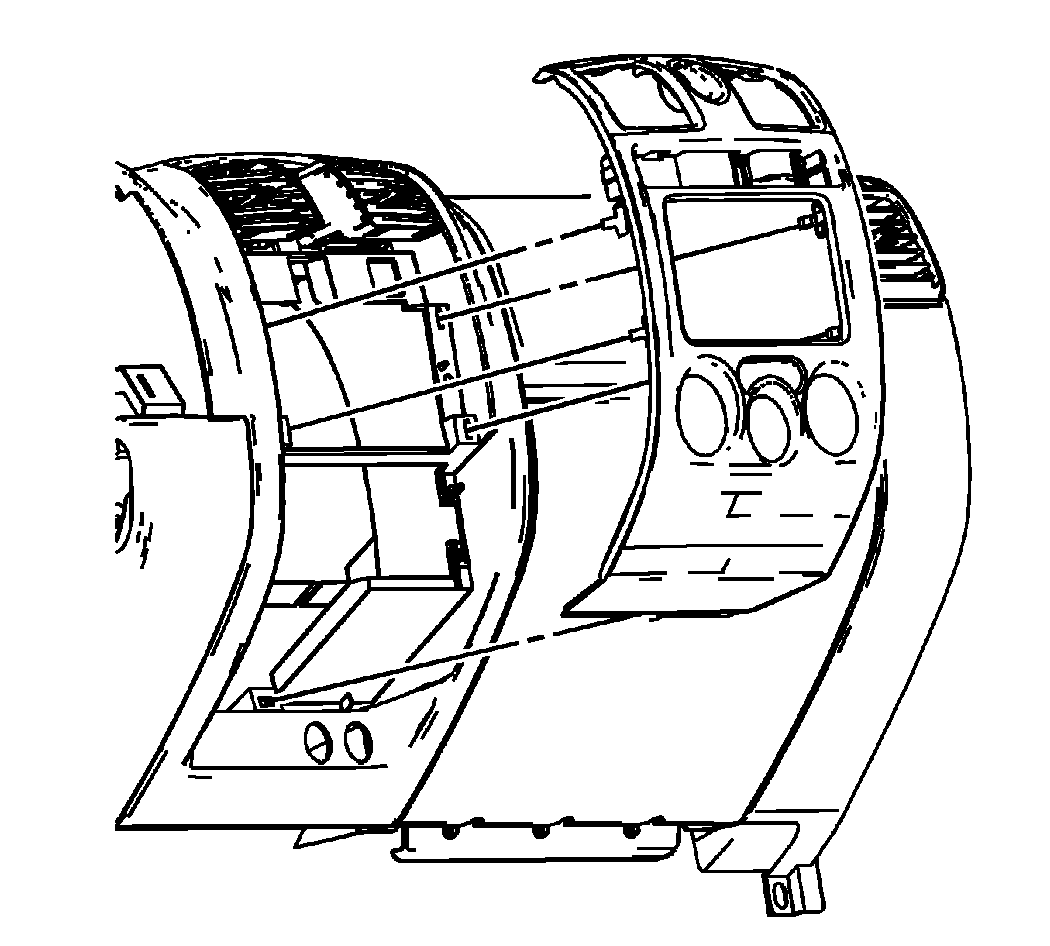

Fig 2: View Of I/P Trim Plate

Courtesy of GENERAL MOTORS CORP.

Install the electrical connectors, as necessary.
Position the trim plate to the I/P.
Ensure the retaining clips are indexed to the corresponding slots provided in the I/P.
Seat the trim plate retaining clips to the I/P.
