Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

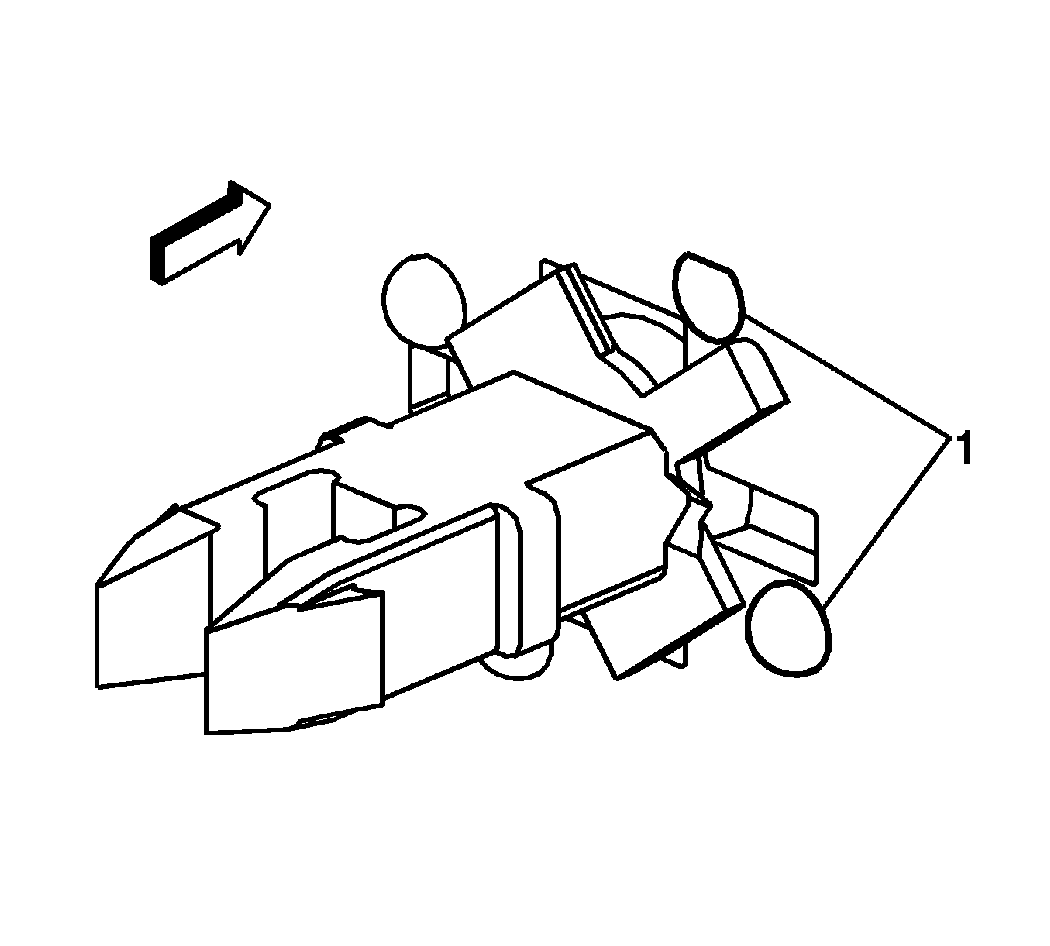

    Fig 1: View Of Park Brake Cable Connection
    GM1276399Courtesy of GENERAL MOTORS CORP.
  1. Position the trim panel to the instrument panel (I/P).
  2. In order to install the cable to the trim panel, insert the cable into the trim panel and rotate the cable counterclockwise past the molded bumps (1), until seated.

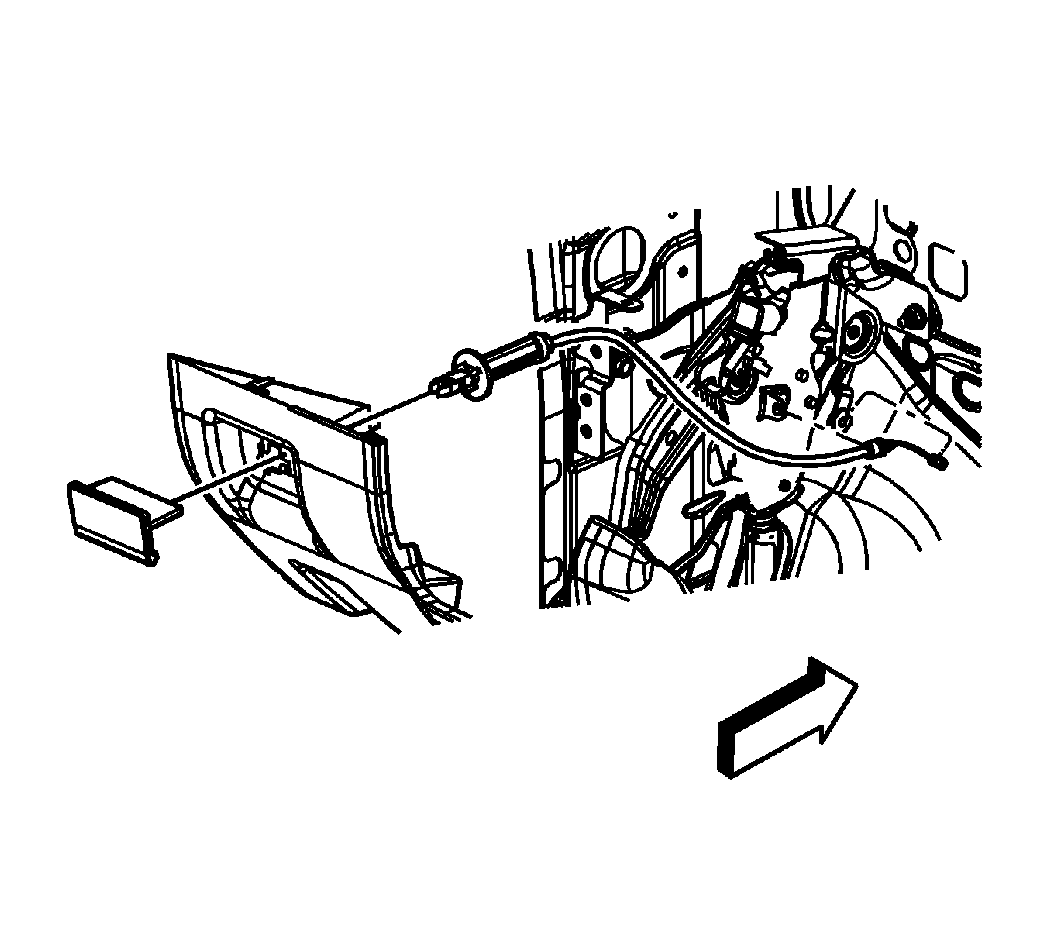

    3. Fig 2: View Of Park Brake Release Handle & Cable
    GM1276401Courtesy of GENERAL MOTORS CORP.
  3. Install the park brake release handle to the cable ensuring the retaining tabs are fully seated.

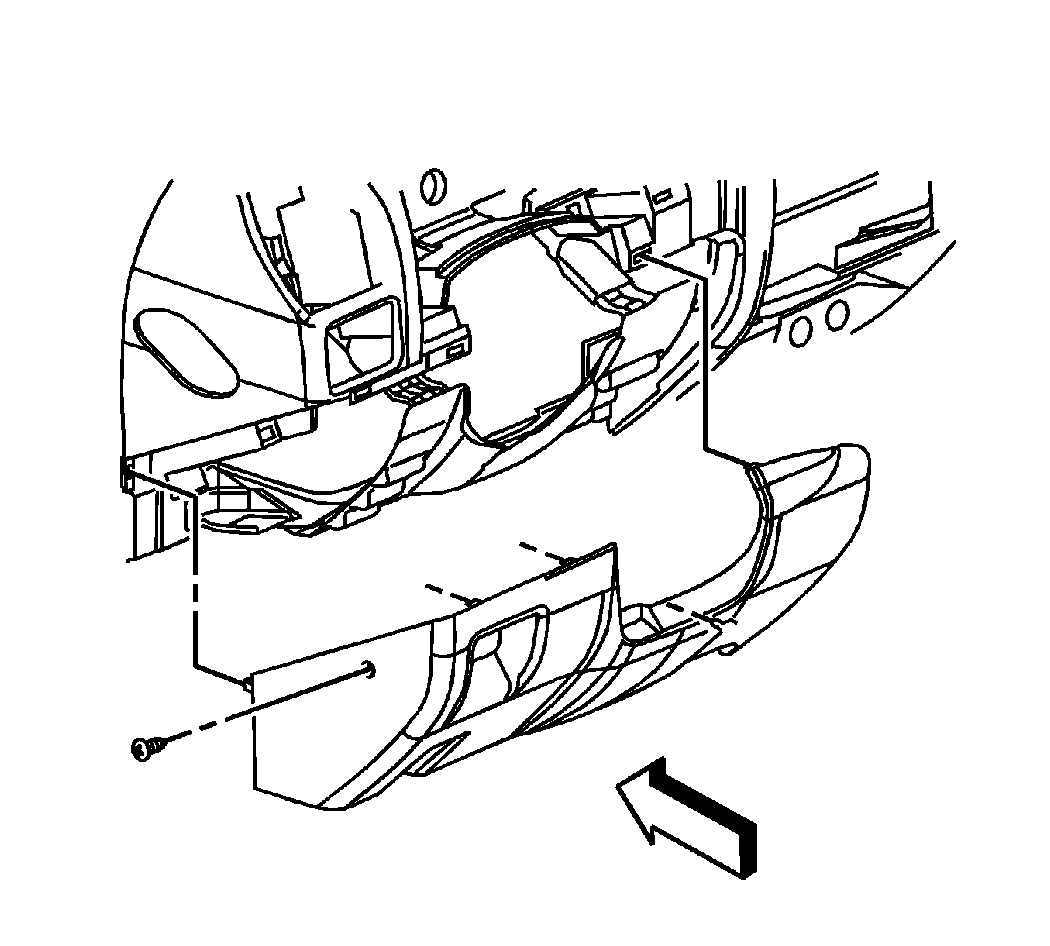

    4. Fig 3: View Of Trim Panel
    GM1245530Courtesy of GENERAL MOTORS CORP.
  4. Align the trim panel retaining clips to the I/P.

    Push the trim panel forward into the I/P, seating the retaining clips.

    5. CAUTION: Refer to Fastener Caution .
  5. Install the screw retaining the trim panel. Tighten the screw to 2.5 N.m (22 lb in).

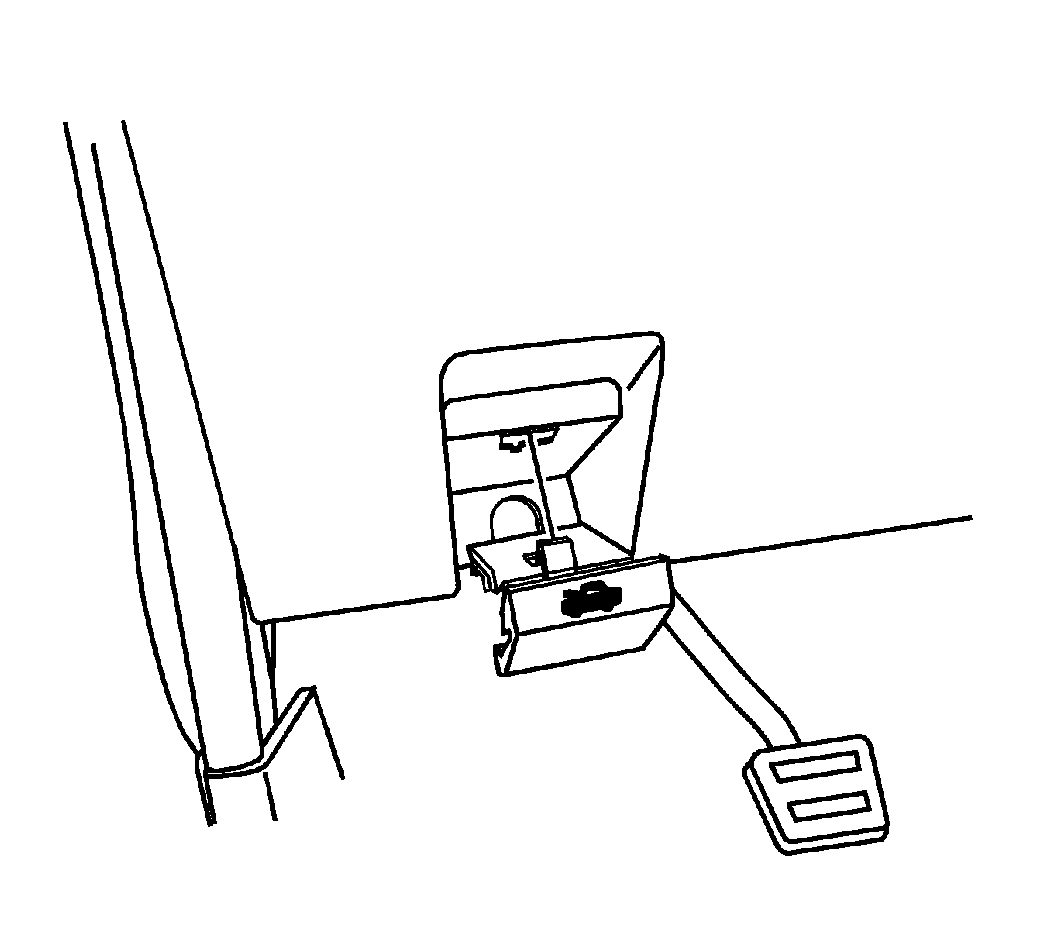

    6. Fig 4: View Of Hood Release Lever
    GM1277255Courtesy of GENERAL MOTORS CORP.
  6. Install the hood release lever to the trim panel.

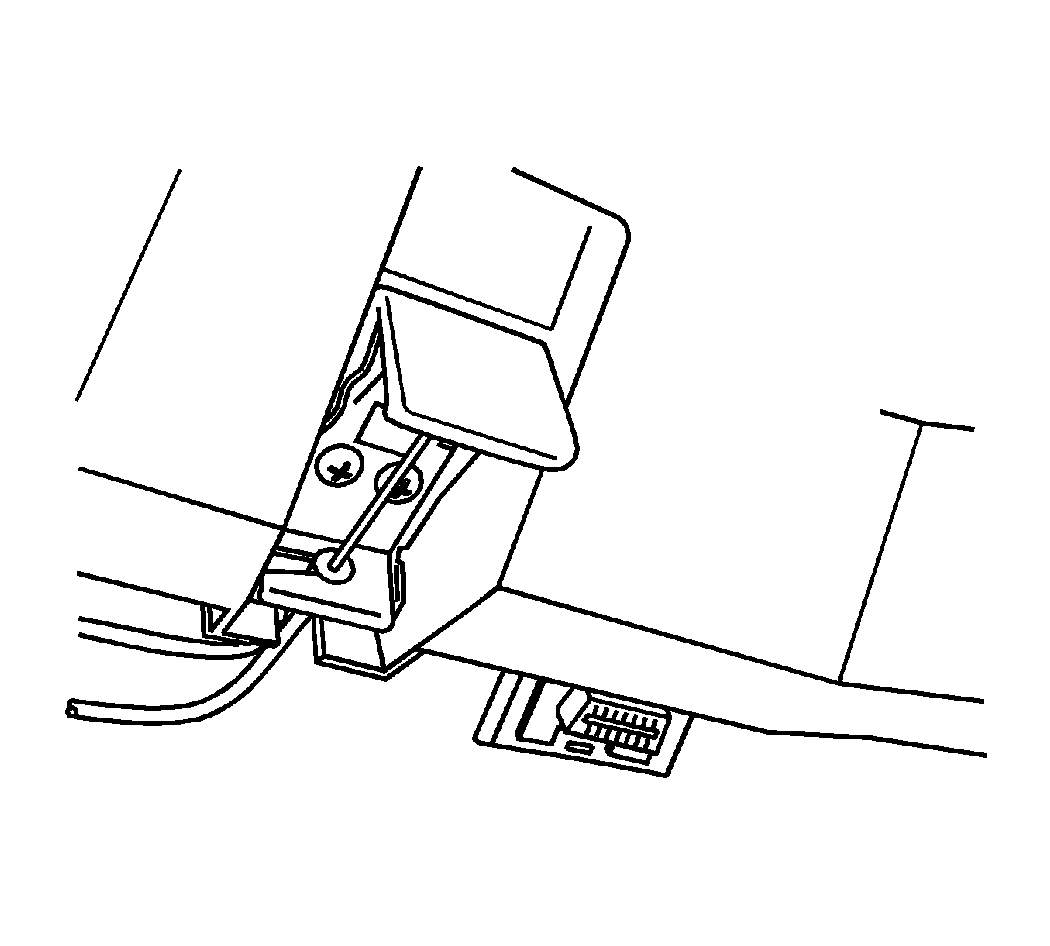

    7. Fig 5: View Of Hood Release Lever Screws
    GM1277253Courtesy of GENERAL MOTORS CORP.
  7. Install the hood release lever screws. Tighten the screws to 2.5 N.m (22 lb in).
