Pressure Relief Valve Replacement

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

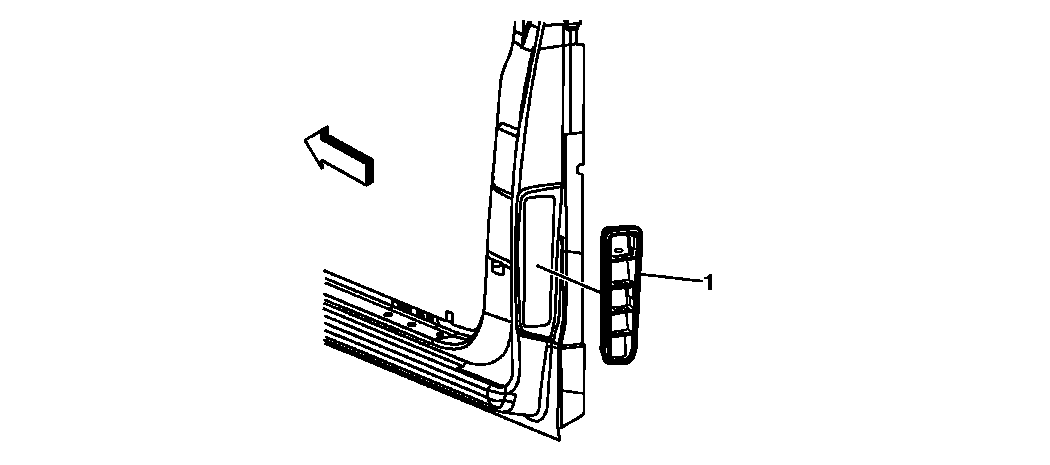

Fig 1: View Of Pressure Relief Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove rear inner trim panel. Refer to Body Side Rear Lower Trim Panel Replacement (Regular Cab) or Body Side Rear Lower Trim Panel Replacement (Extended Cab) or Body Side Rear Lower Trim Panel Replacement (Crew Cab) .
1	Pressure Relief Valve Tip: Release integral tabs from inside of valve (Qty: 6).
