Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

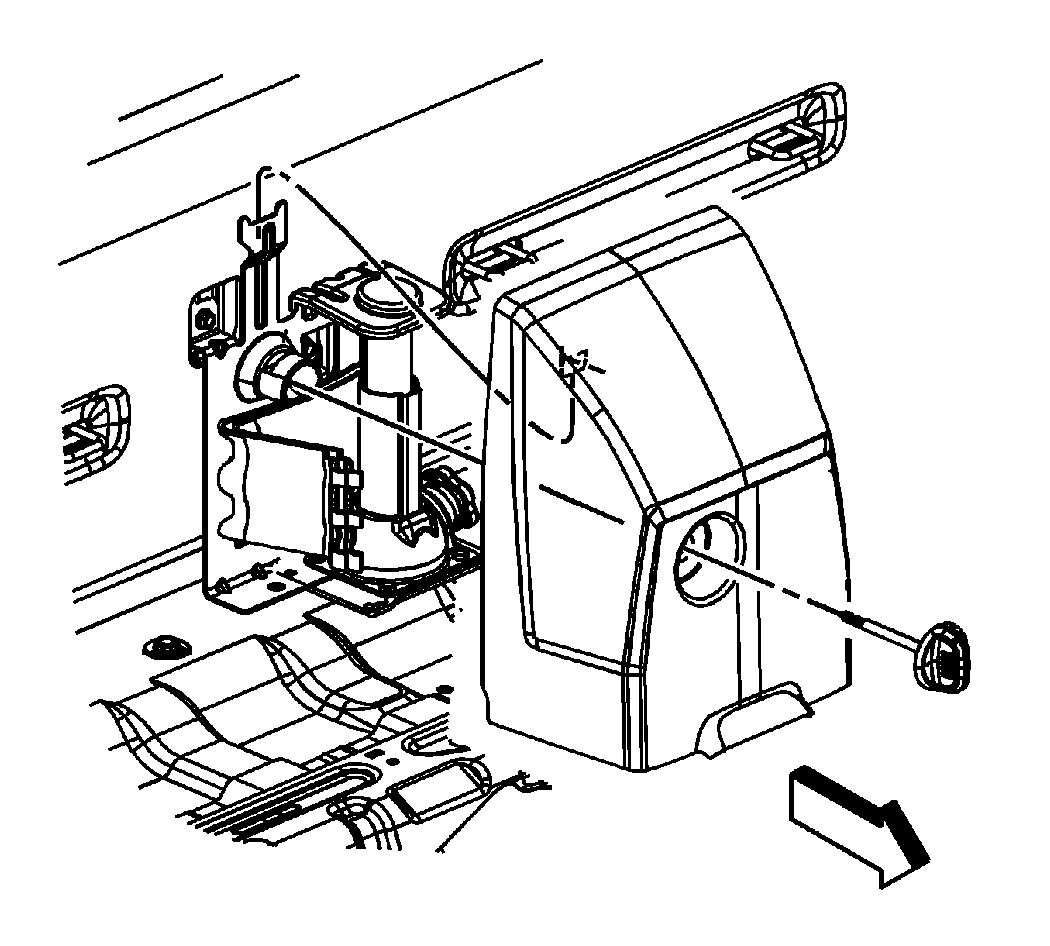

    Fig 1: View Of Jack Cover
    GM1334370Courtesy of GENERAL MOTORS CORP.
  1. Position the jack cover over the jack stowage bracket ensuring that the tab on the rear of the cover hooks behind the top of the jack stowage bracket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the screw securing the jack cover to the jack stowage bracket. Tighten the jack cover screw until fully seated, tight, but not stripped.
