Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

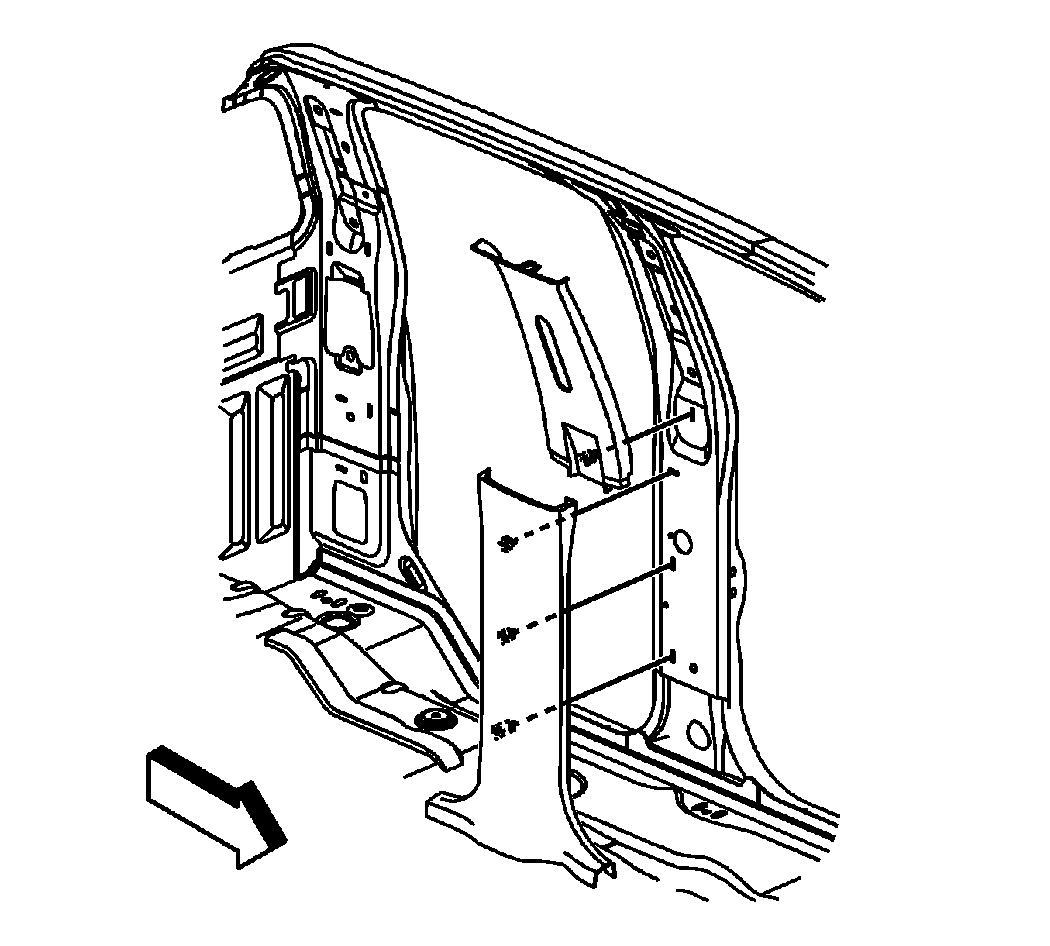

    Fig 1: View Of Upper Center Pillar Trim Panel
    GM1276803Courtesy of GENERAL MOTORS CORP.
  1. Position the lower center pillar trim panel so that the front edge hooks around the front door frame.
  2. Ensure that the panel fasteners are aligned with the holes in the body.
  3. Install the panel by pushing firmly against the body to seat the panel fasteners.
