Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

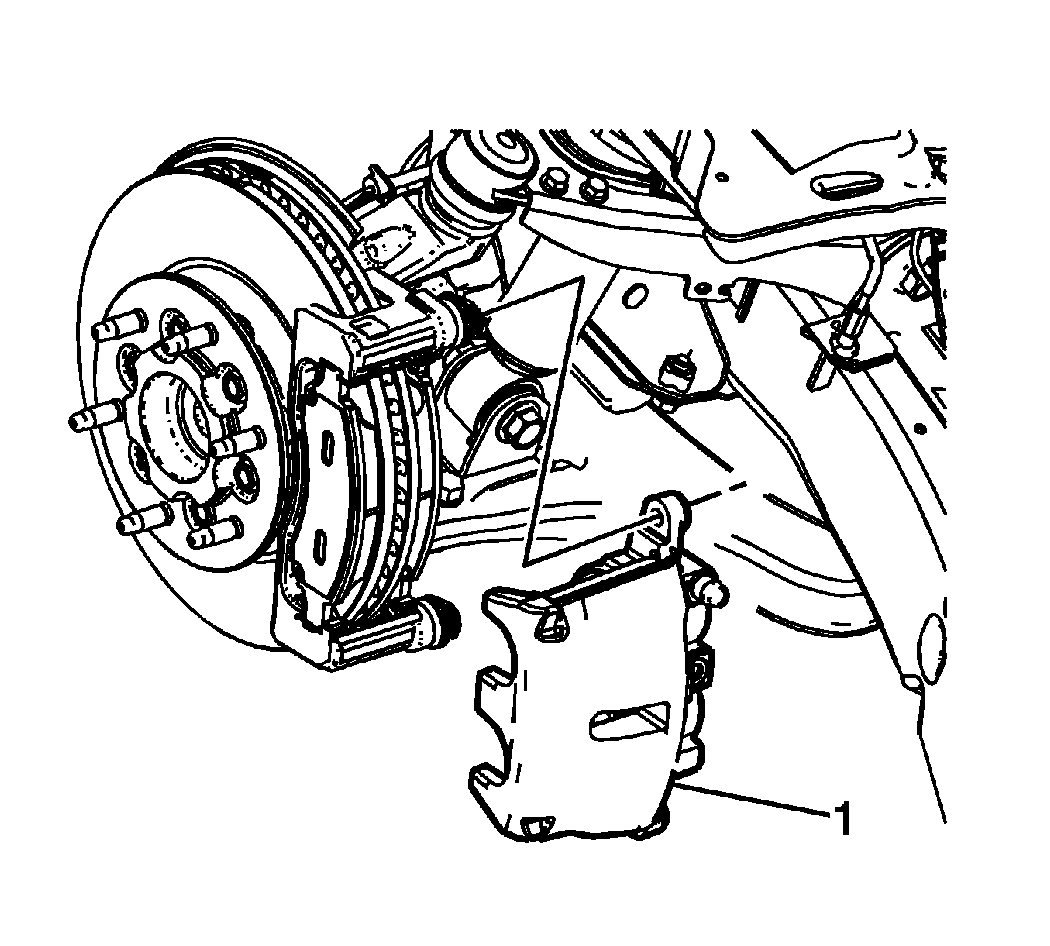

    Fig 1: Brake Caliper
    GM2128790Courtesy of GENERAL MOTORS CORP.
  1. Install the brake caliper (1).

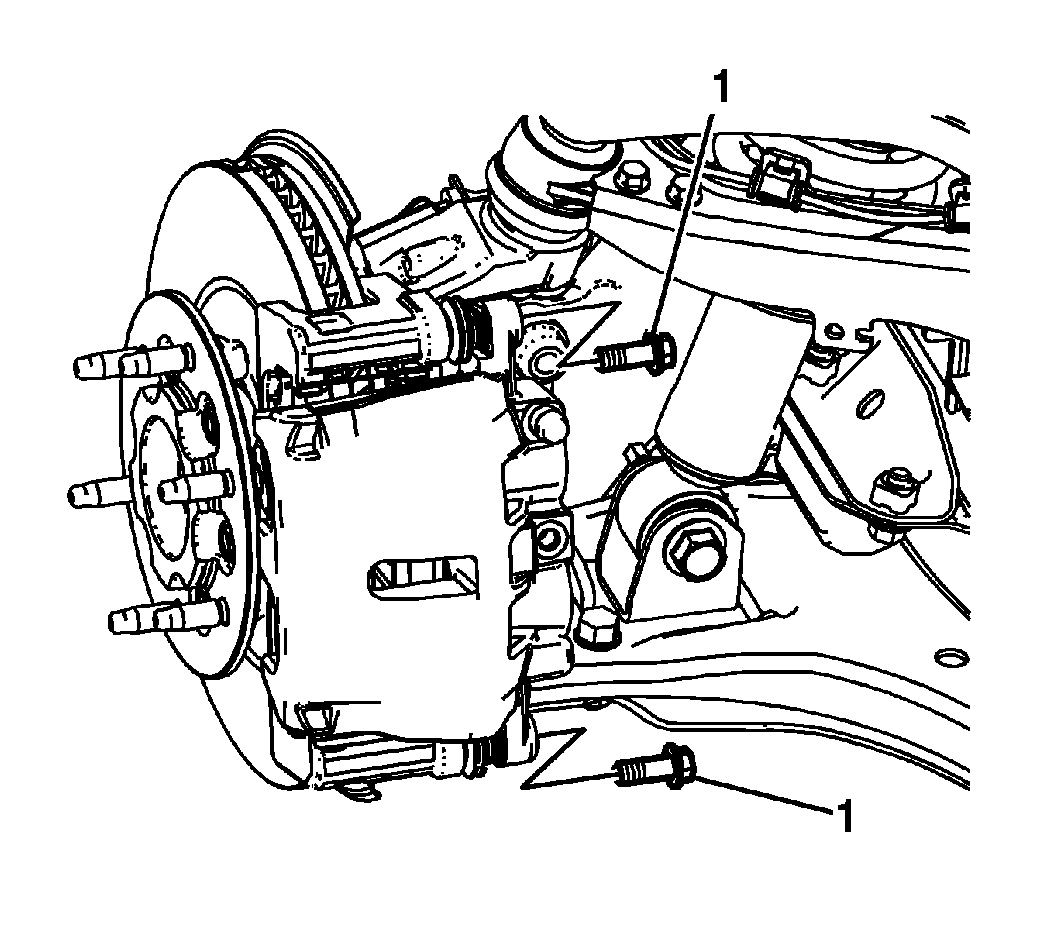

    2. Fig 2: Brake Caliper Guide Pin Bolts
    GM2128789Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the brake caliper guide pin bolts (1) and tighten to 64N.m (47 lb ft).

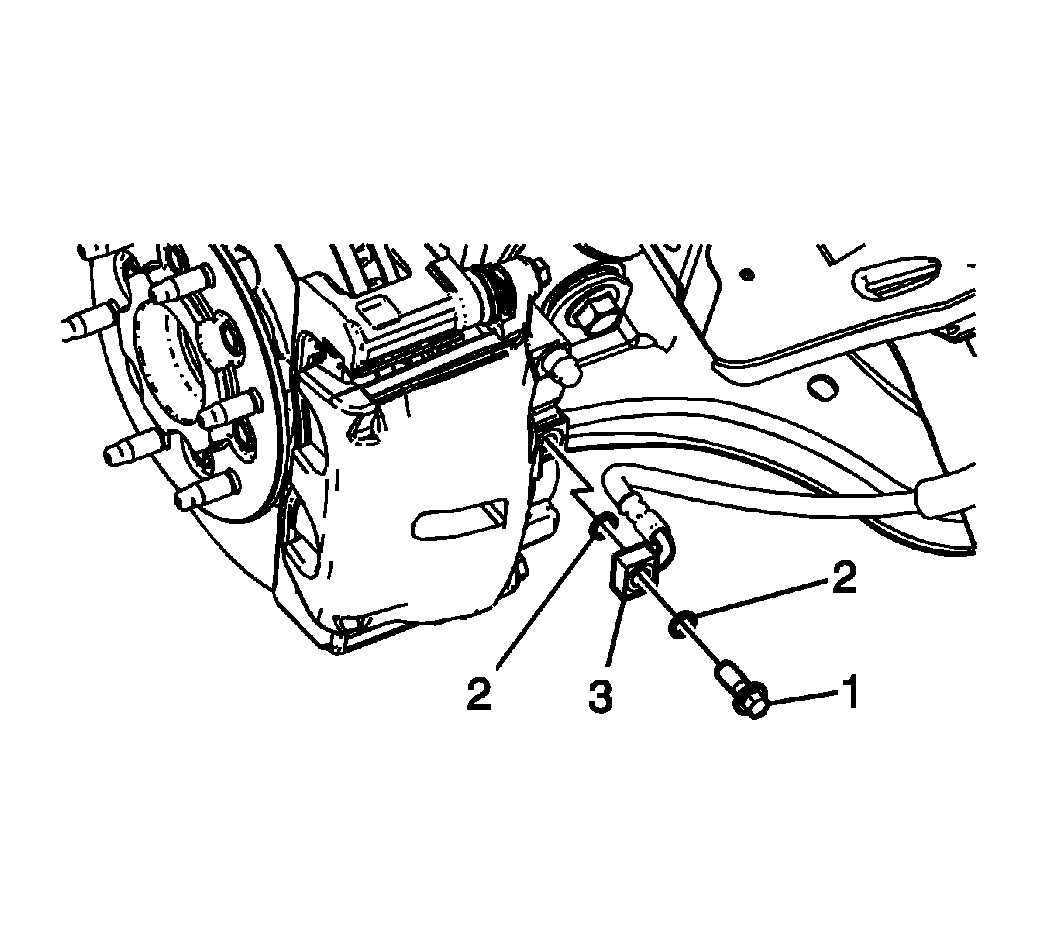

    3. Fig 3: Identifying Brake Hose & Fittings
    GM2128788Courtesy of GENERAL MOTORS CORP.
    NOTE: Install new brake hose fitting gaskets.
  3. Assemble the brake hose fitting bolt (1) and new brake hose fitting gaskets (2) to the brake hose fitting (3).
  4. Install the brake hose assembly to the brake caliper and tighten the fitting bolt to 40 N.m (30 lb ft).
  5. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) .
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
