Vehicle Yaw Sensor Replacement

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

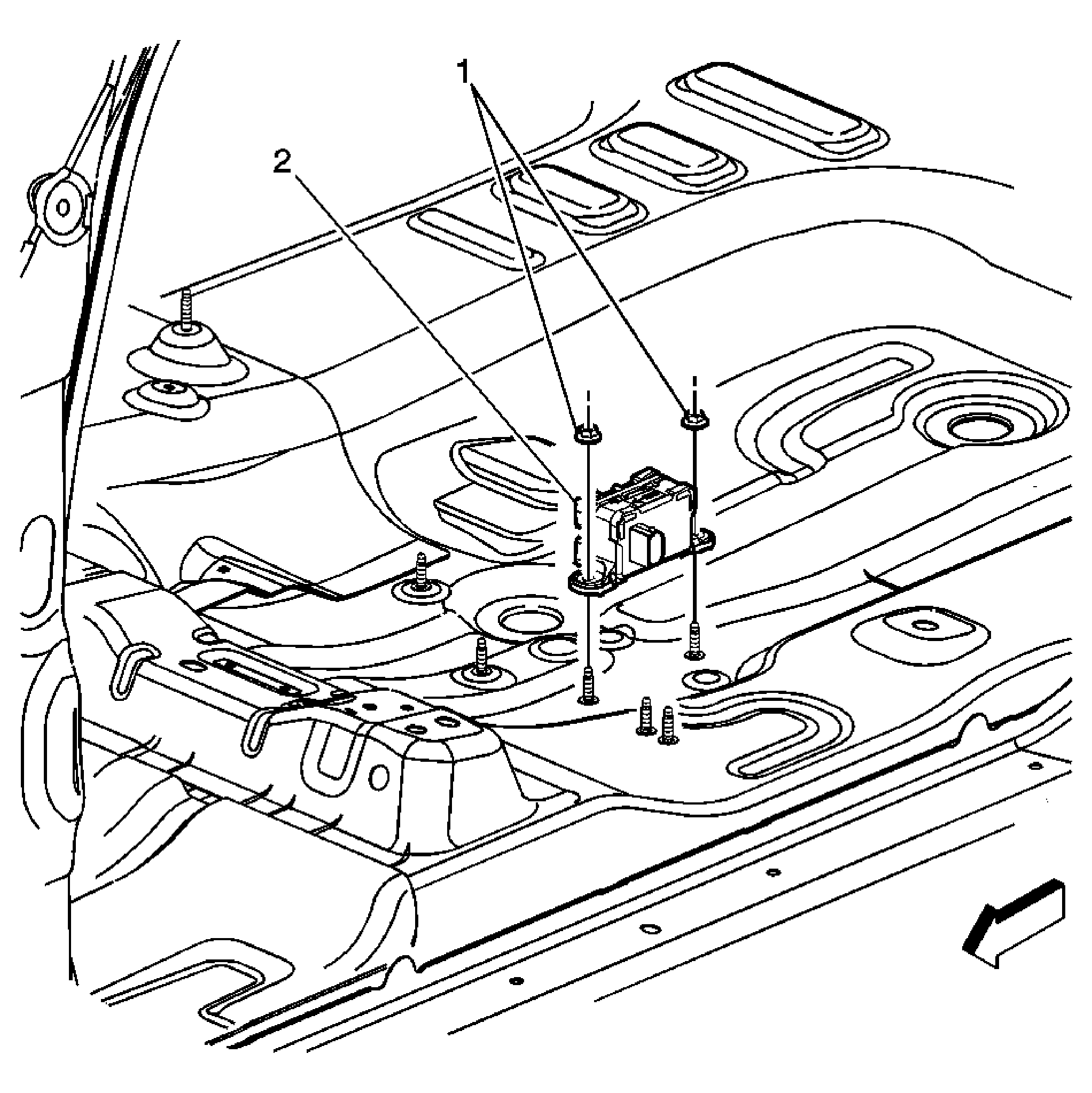

Fig 1: Vehicle Yaw Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the driver seat. Refer to Front Seat Replacement - Bucket . Pull back the carpet to gain access to the yaw rate sensor. Disconnect the yaw rate sensor electrical connector.
1	Yaw Rate Sensor Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 7 N.m (62 lb in)
2	Yaw Rate Sensor Procedure After the installation is complete, install a scan tool to the vehicle. Using the special functions menu on the scan tool, reset the yaw rate sensor. Perform the Diagnostic System Check - Vehicle .

Callout

Component Name

Preliminary Procedures

Remove the driver seat. Refer to Front Seat Replacement - Bucket .
Pull back the carpet to gain access to the yaw rate sensor.
Disconnect the yaw rate sensor electrical connector.

Yaw Rate Sensor Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 7 N.m (62 lb in)

Yaw Rate Sensor

Procedure

After the installation is complete, install a scan tool to the vehicle.
Using the special functions menu on the scan tool, reset the yaw rate sensor.
Perform the Diagnostic System Check - Vehicle .
