Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

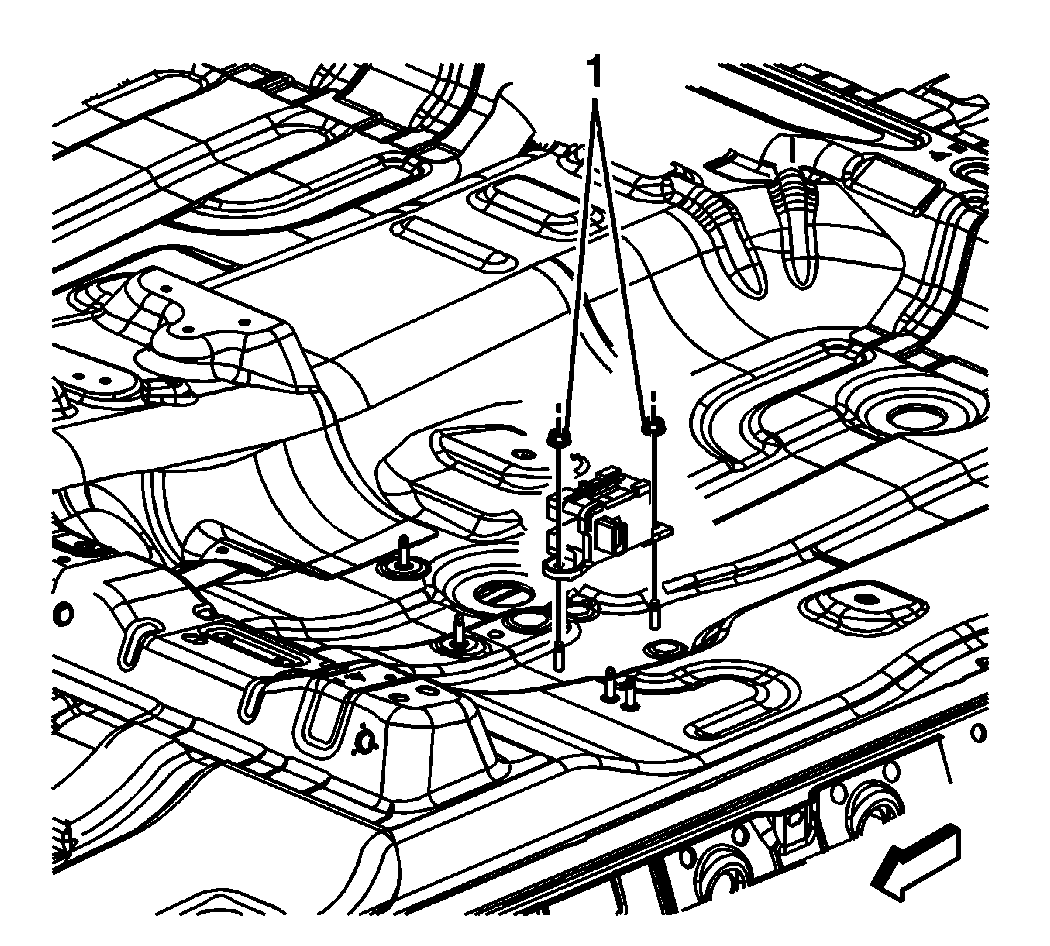

    Fig 1: Longitudinal Accelerometer Nuts
    GM2141200Courtesy of GENERAL MOTORS CORP.
  1. Install the longitudinal accelerometer.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the longitudinal accelerometer nuts (1) and tighten to 9 N.m (80 lb in).
  3. Connect the longitudinal accelerometer electrical connector.
  4. Install the left front seat. Refer to Front Seat Replacement - Bucket or Split Bench Seat Replacement .
