Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

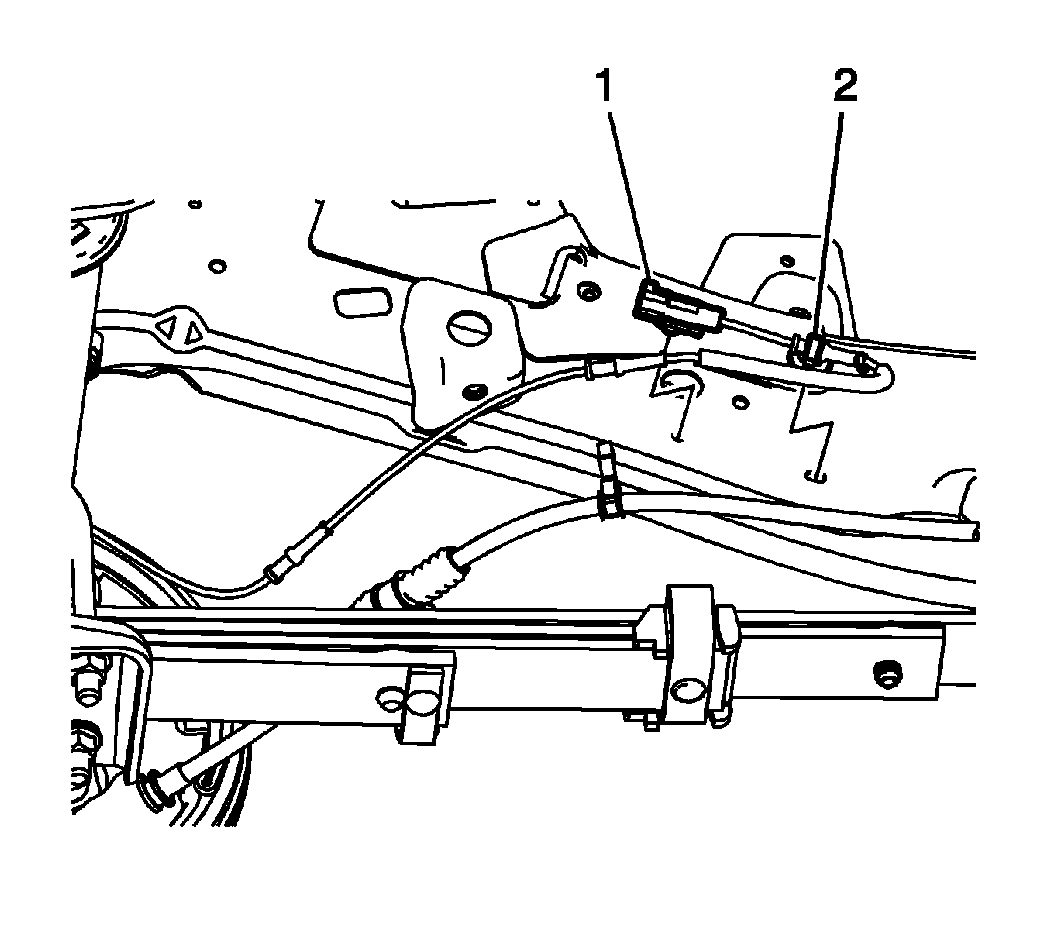

    Fig 1: Wheel Speed Sensor Electrical Connector
    GM2106313Courtesy of GENERAL MOTORS CORP.
  1. Position the wheel speed sensor assembly to the vehicle.
  2. Connect the wheel speed sensor electrical connector (1).
  3. Install the electrical connector and harness retainer (2) to the frame.

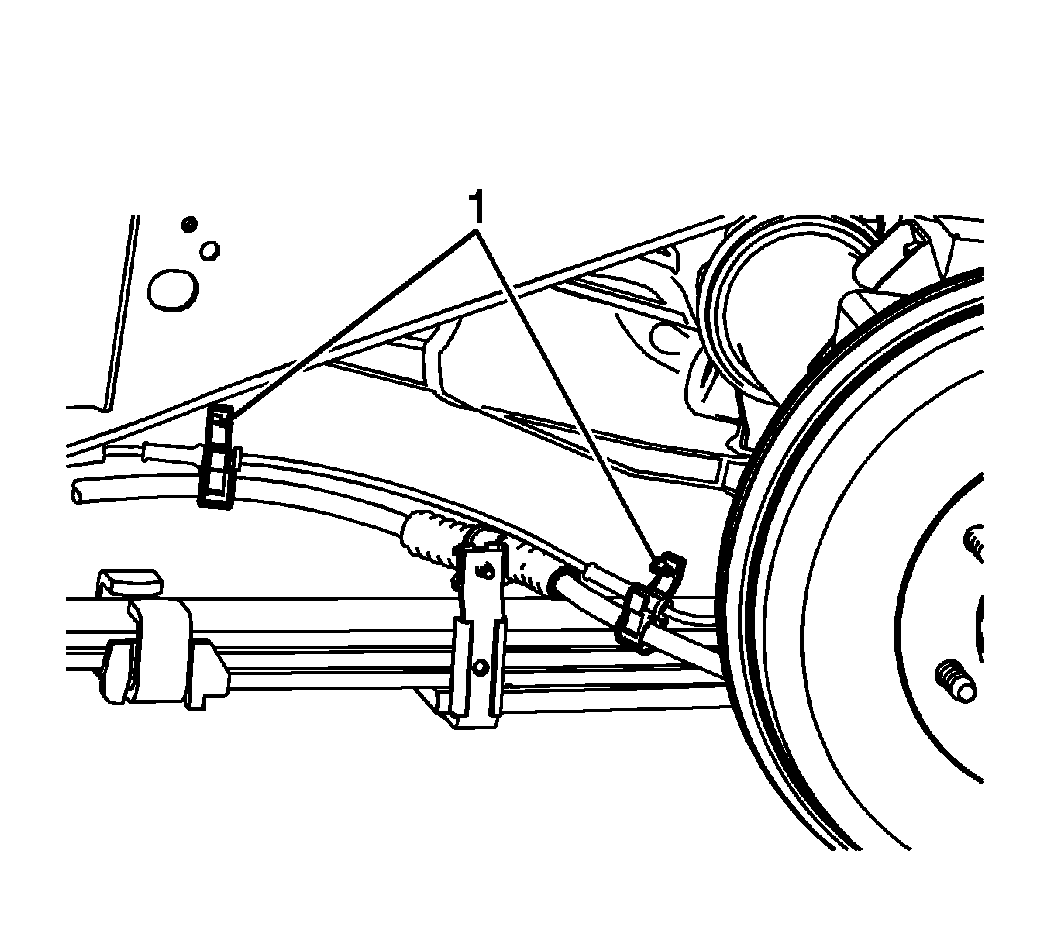

    4. Fig 2: Wheel Speed Sensor Harness Retainers
    GM2106312Courtesy of GENERAL MOTORS CORP.
  4. Position the wheel speed sensor harness to the retainers (1) on the rear park brake cable.
  5. Fasten the wheel speed sensor harness retainers.

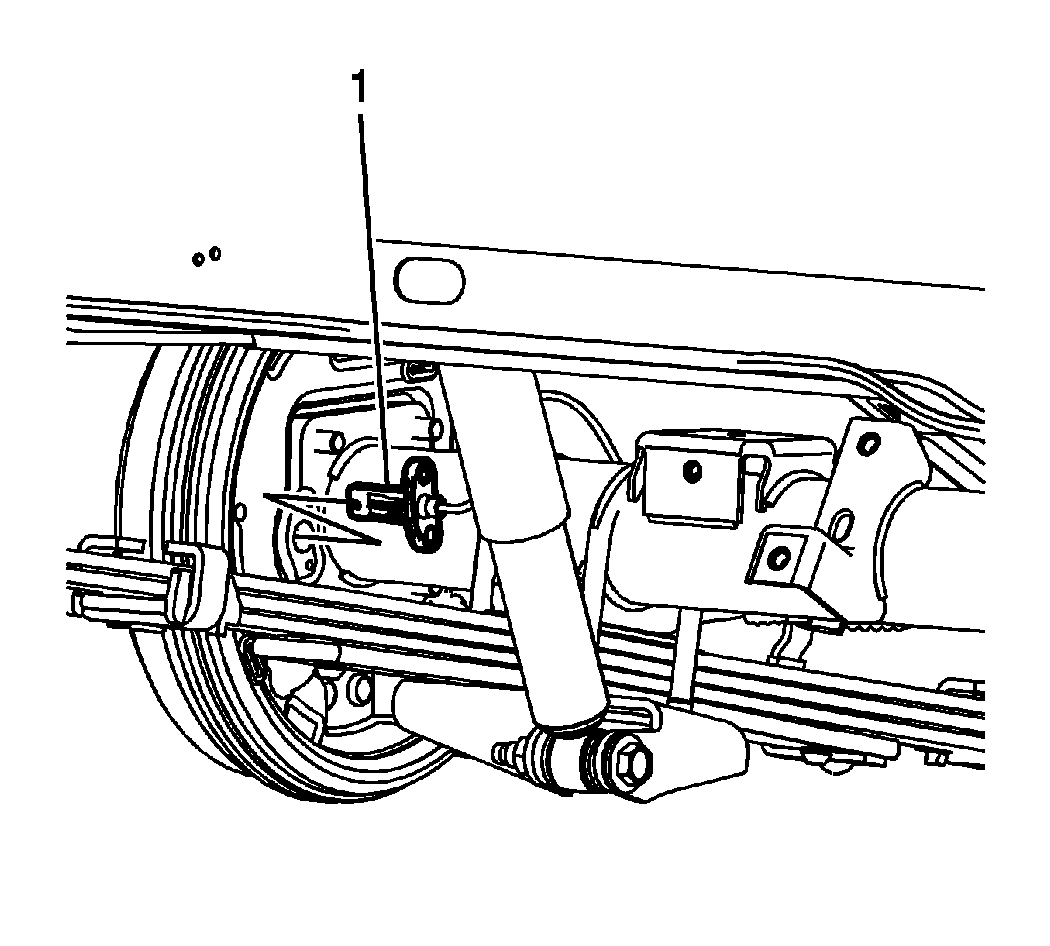

    6. Fig 3: Wheel Speed Sensor
    GM2106310Courtesy of GENERAL MOTORS CORP.
  6. Install the wheel speed sensor (1) to the drum brake backing plate.
    7. CAUTION: Refer to Fastener Caution .

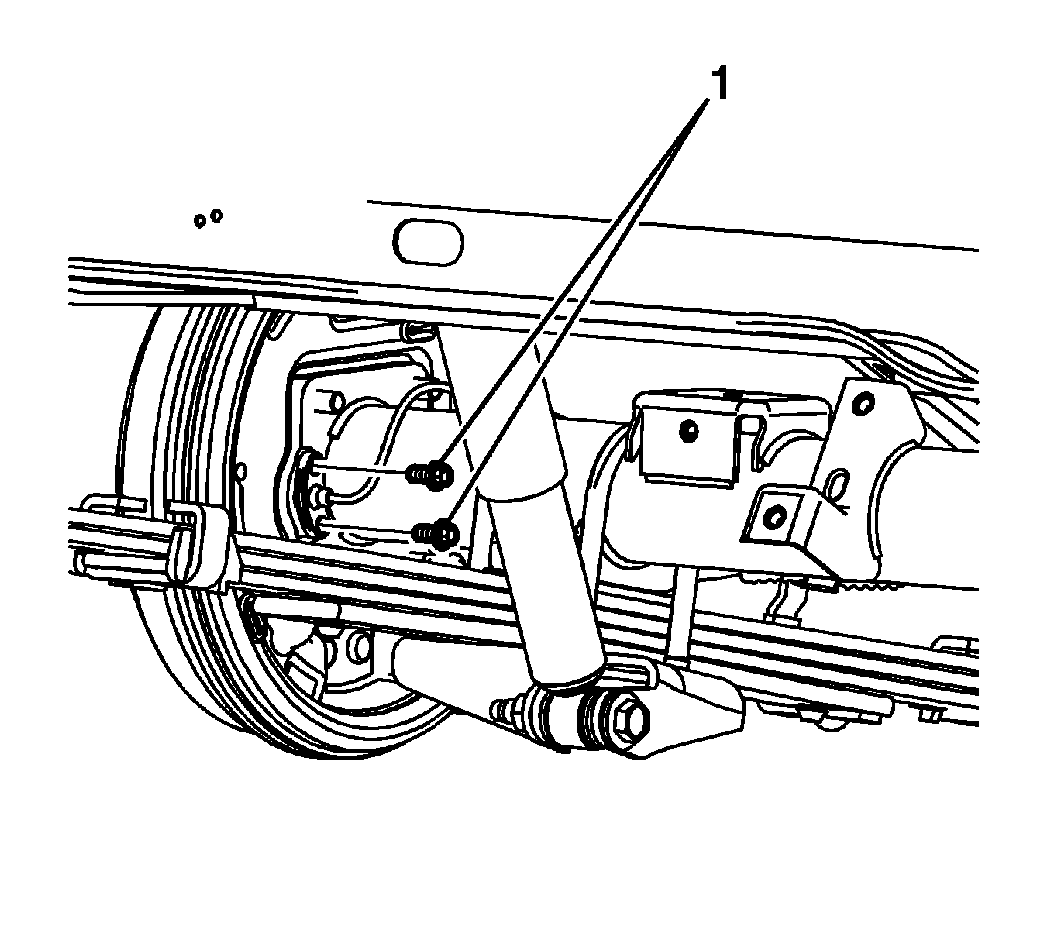

    Fig 4: Wheel Speed Sensor Bolts
    GM2106309Courtesy of GENERAL MOTORS CORP.
  7. Install the wheel speed sensor bolts (1) and tighten to 17 N.m (13 lb ft).
  8. Lower the vehicle.
  9. Perform the Diagnostic System Check - Vehicle .
