Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Install the EBCM. Refer to Electronic Brake Control Module Replacement .

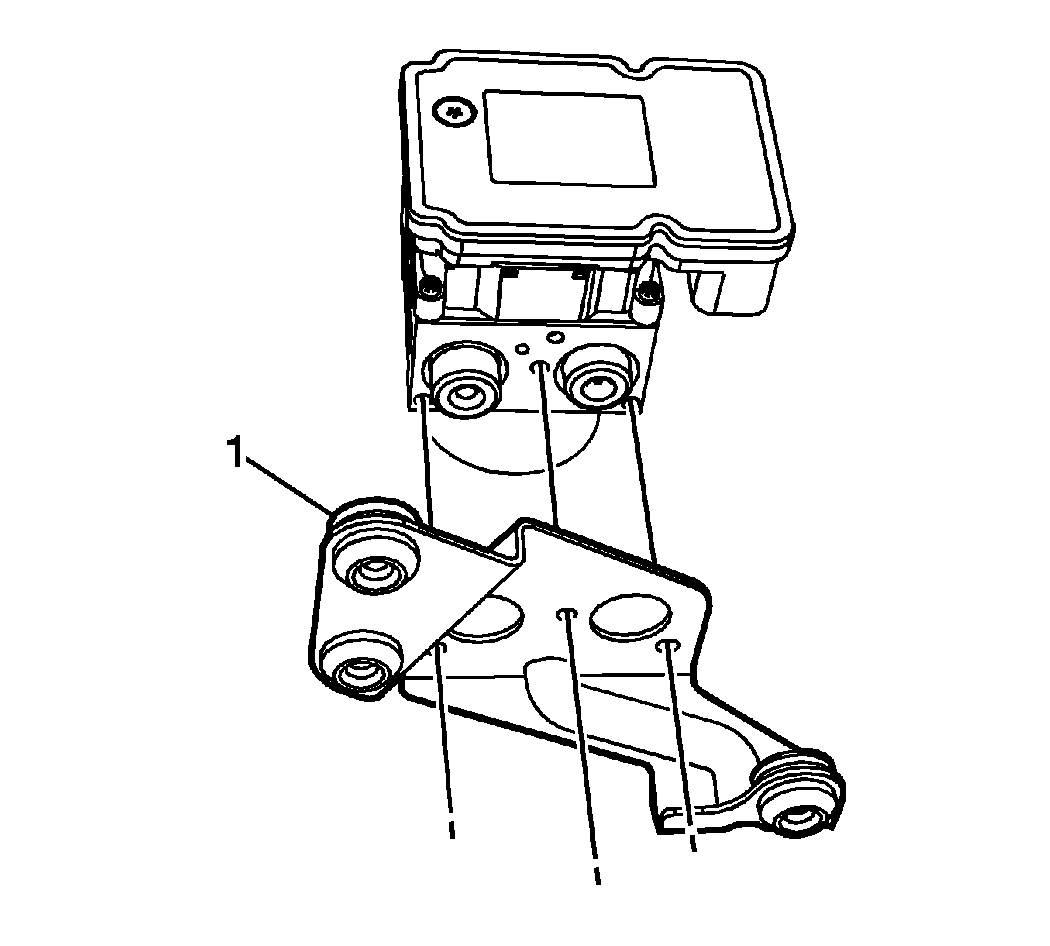

Fig 1: Bracket

Courtesy of GENERAL MOTORS CORP.

If removed, install the bracket (1) to the BPMV.

CAUTION: Refer to Fastener Caution .

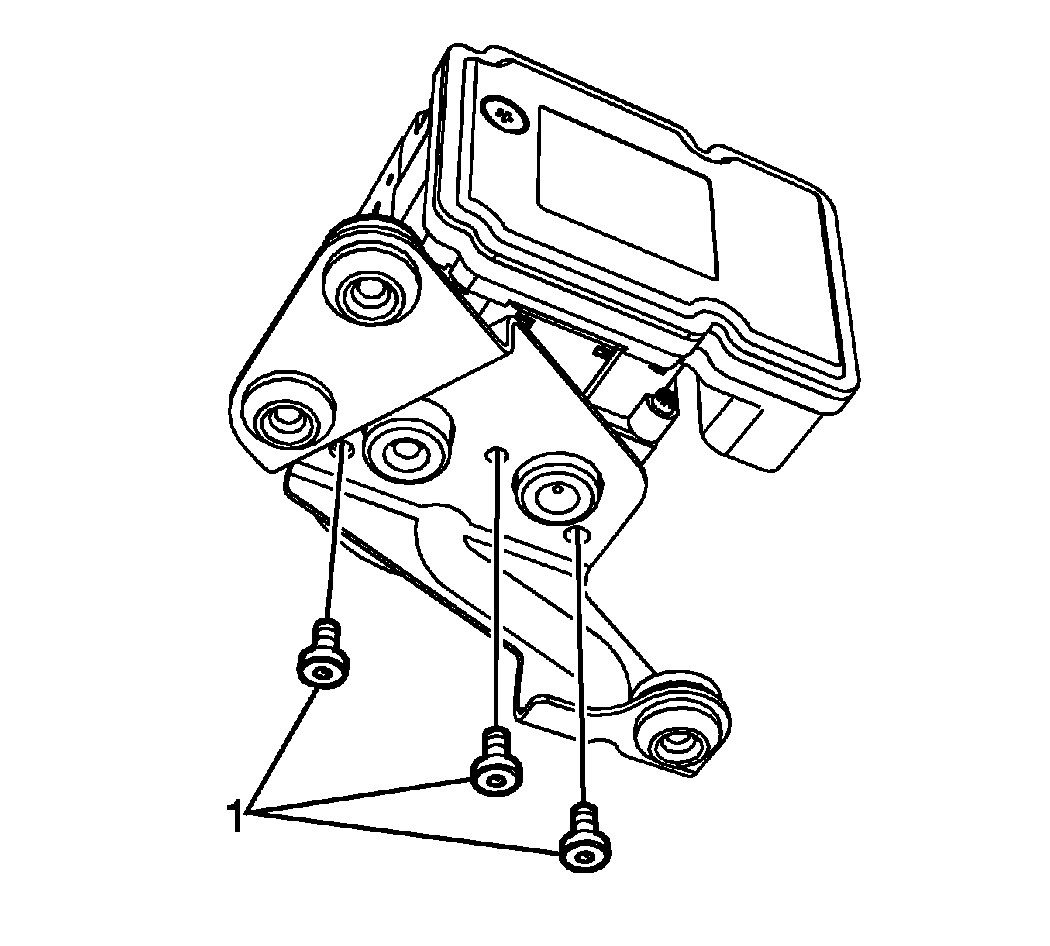

Fig 2: BPMV Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

If removed, install the BPMV bracket bolts (1) and tighten to 11 N.m (97 lb in).

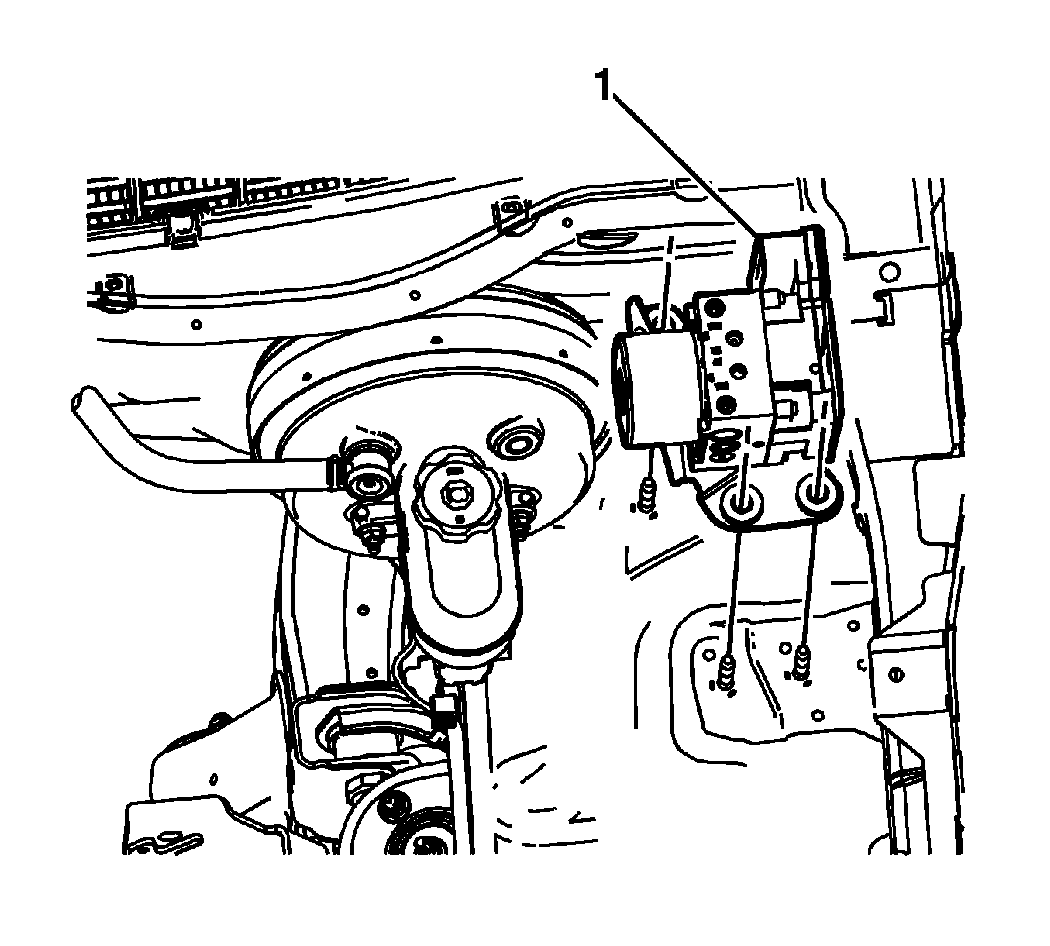

Fig 3: EBCM/BPMV Assembly

Courtesy of GENERAL MOTORS CORP.

Install the EBCM/BPMV assembly (1) to the vehicle.

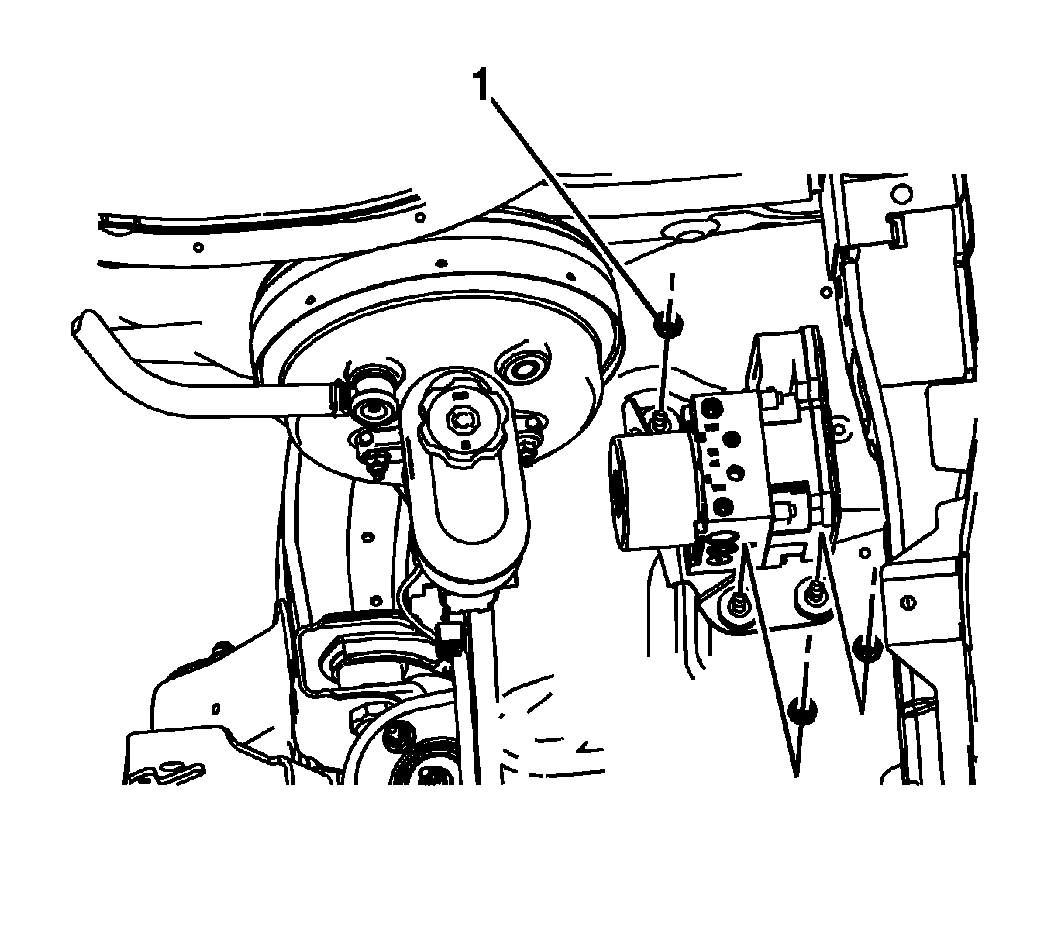

Fig 4: EBCM/BPMV Assembly Bracket Nuts

Courtesy of GENERAL MOTORS CORP.

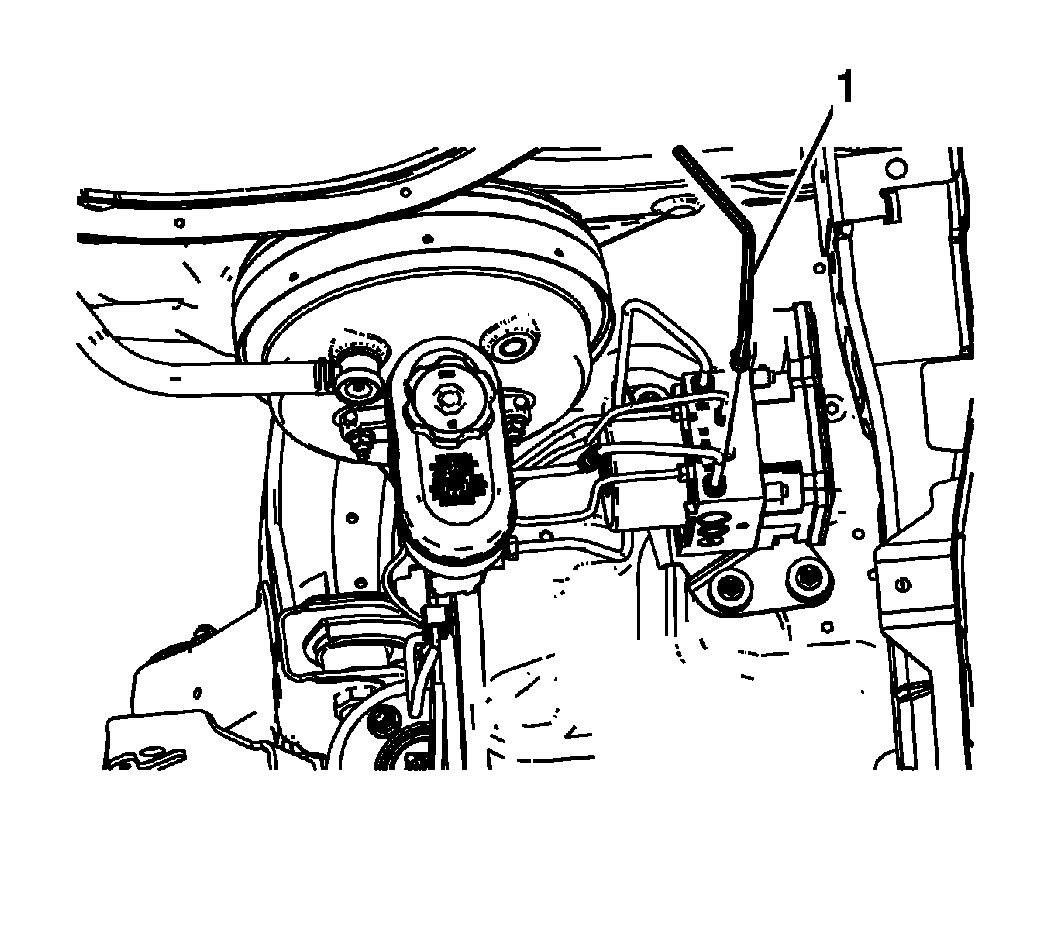

Fig 5: Master Cylinder Secondary Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

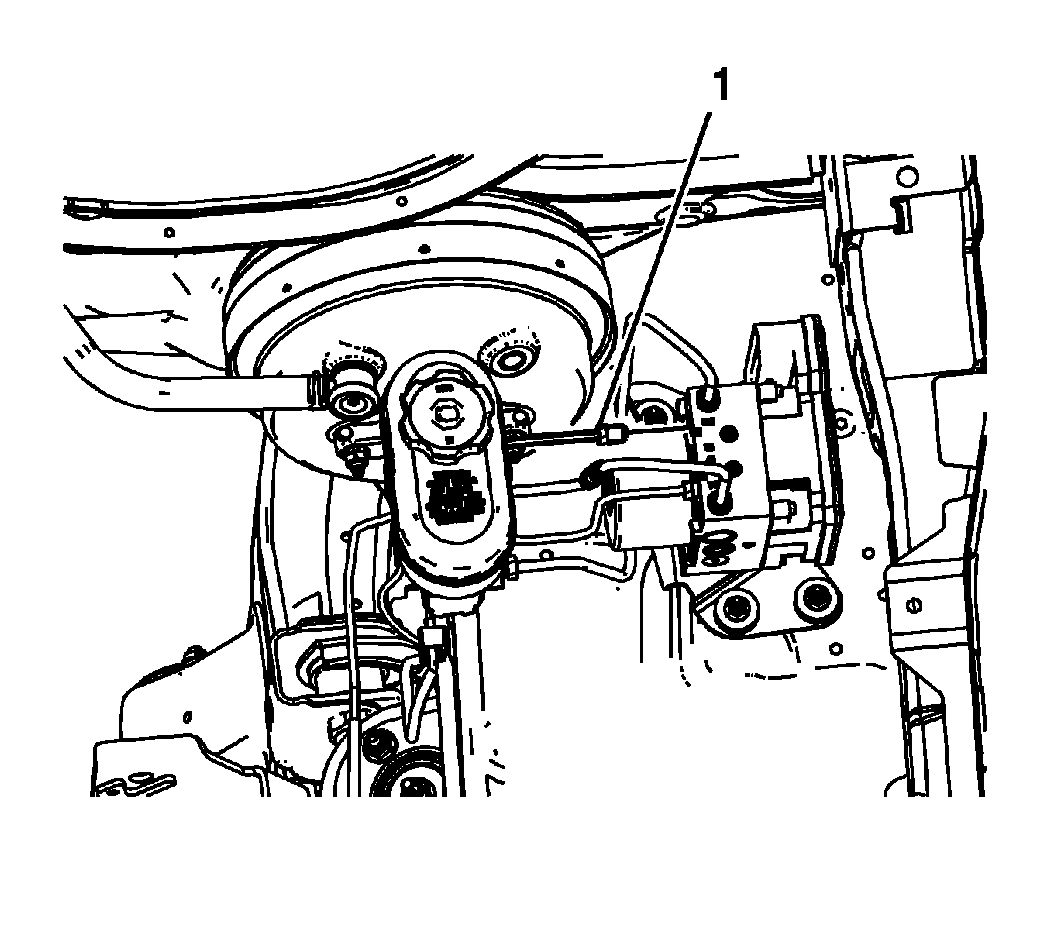

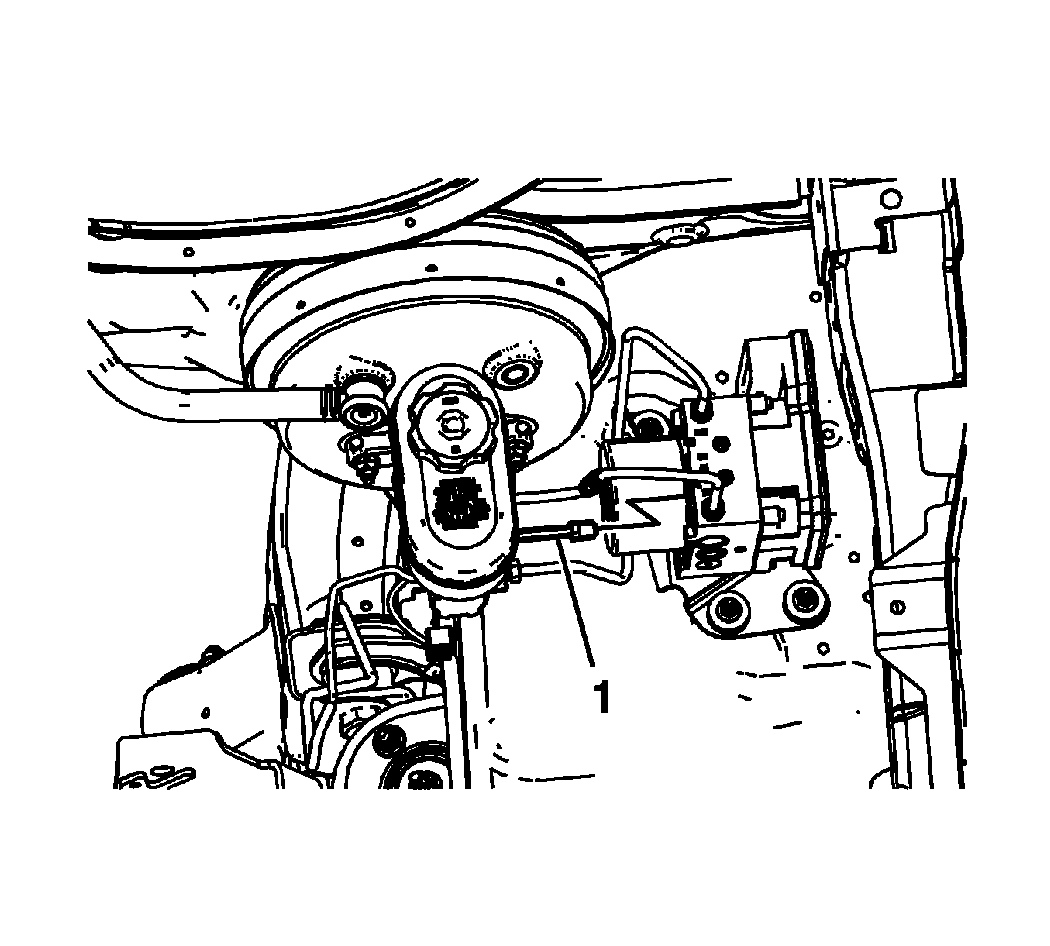

Fig 6: Master Cylinder Primary Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Fig 7: LF Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

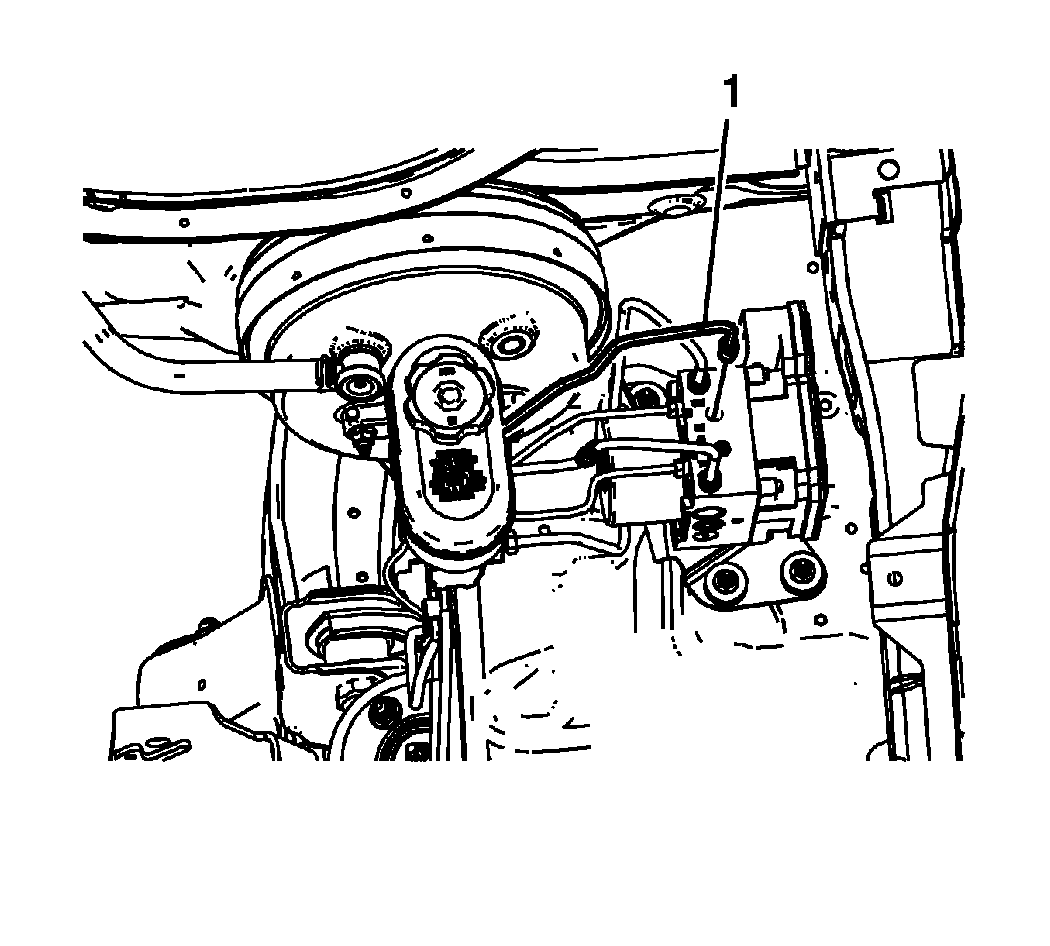

Fig 8: LR Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Install the EBCM/BPMV assembly bracket nuts (1) and tighten to 9 N.m (80 lb in).
Connect the master cylinder secondary brake pipe fitting (1) to the EBCM/BPMV assembly and tighten to 32 N.m (24 lb ft).

Connect the master cylinder primary brake pipe fitting (1) to the EBCM/BPMV assembly and tighten to 32 N.m (24 lb ft).

Connect the LF brake pipe fitting (1) to the EBCM/BPMV assembly and tighten to 17 N.m (13 lb ft).

Connect the LR brake pipe fitting (1) to the EBCM/BPMV assembly and tighten to 17 N.m (13 lb ft).

Fig 9: RR Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the RR brake pipe fitting (1) to the EBCM/BPMV assembly and tighten to 17 N.m (13 lb ft).

Fig 10: RF Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the RF brake pipe fitting (1) to the EBCM/BPMV assembly and tighten to 17 N.m (13 lb ft).
Connect the EBCM electrical connector.
Perform the Antilock Brake System Automated Bleed .
