Installation Procedure
WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

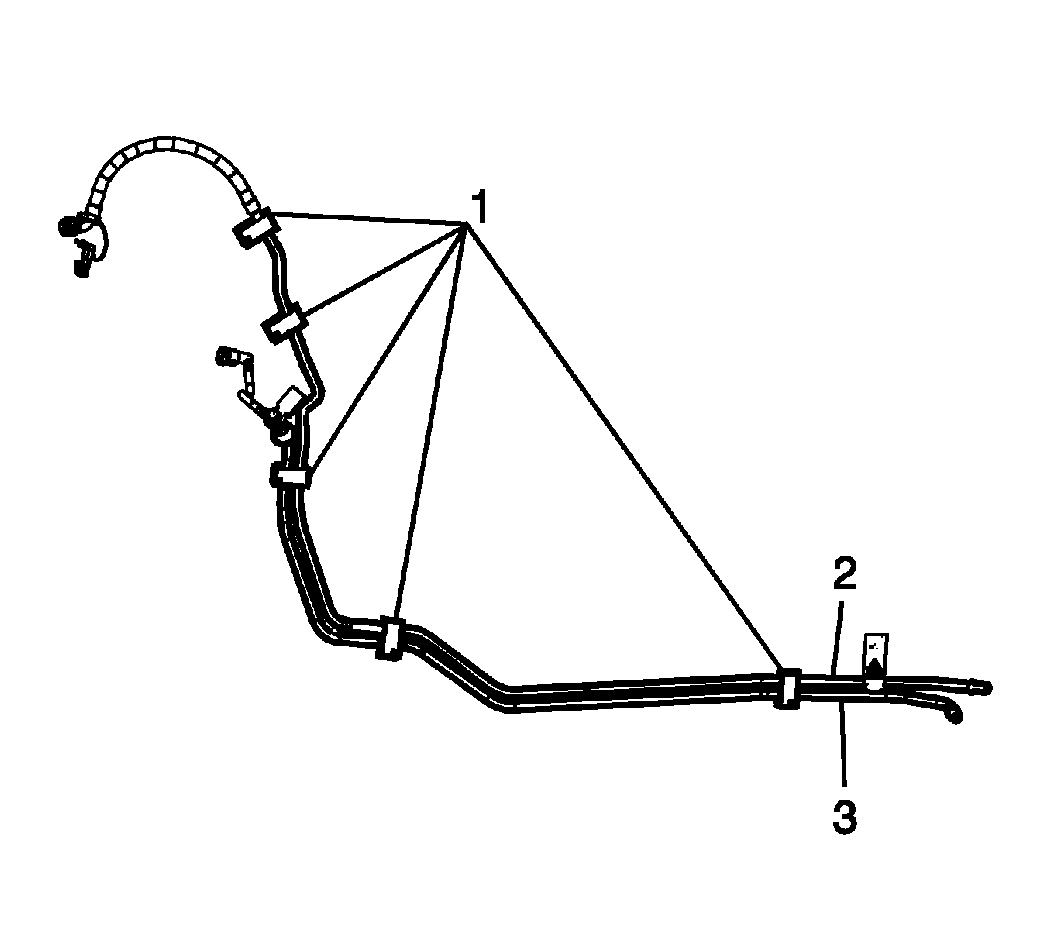

- Install the fuel feed line (2) to the clips.
- Close the fuel feed and EVAP line clips (1).
- Position the EVAP/fuel line assembly up into the engine compartment along the engine and transmission.

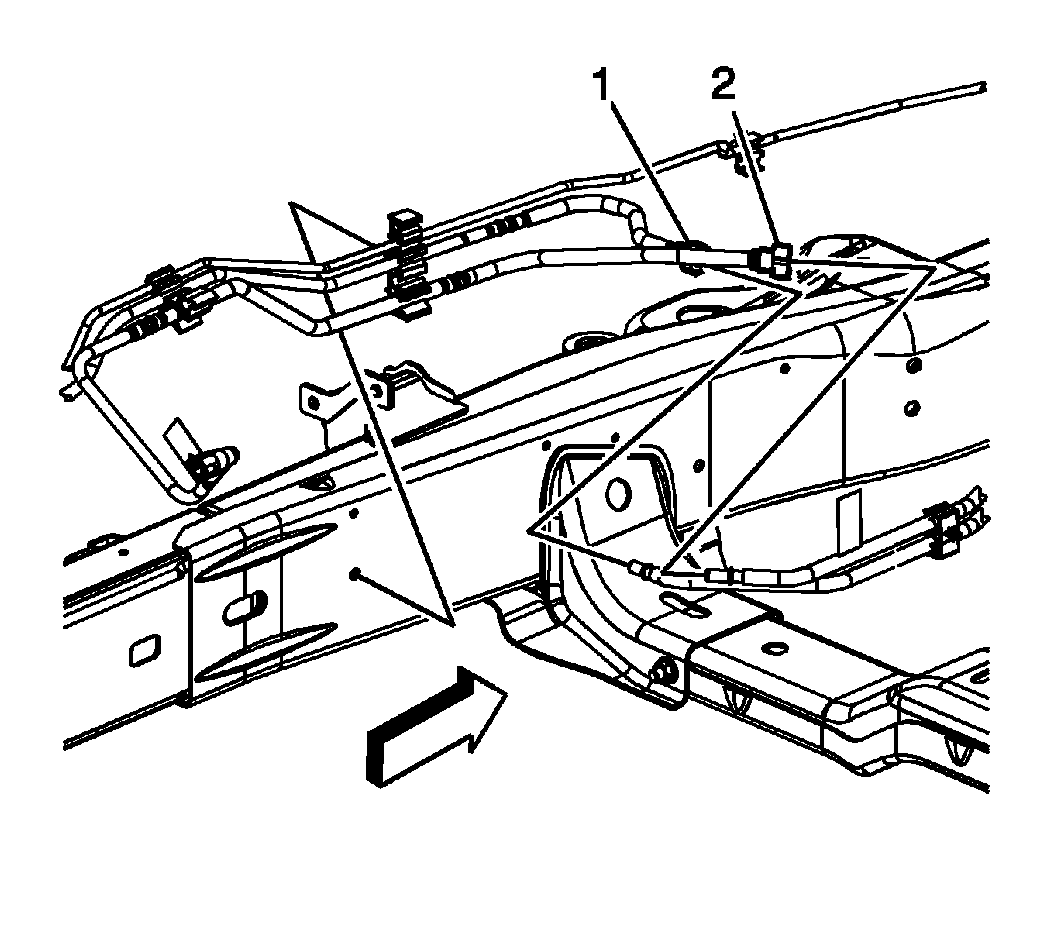

- Connect the chassis fuel feed (2) and EVAP (1) line quick connect fittings to the engine lines. Refer to Plastic Collar Quick Connect Fitting Service .

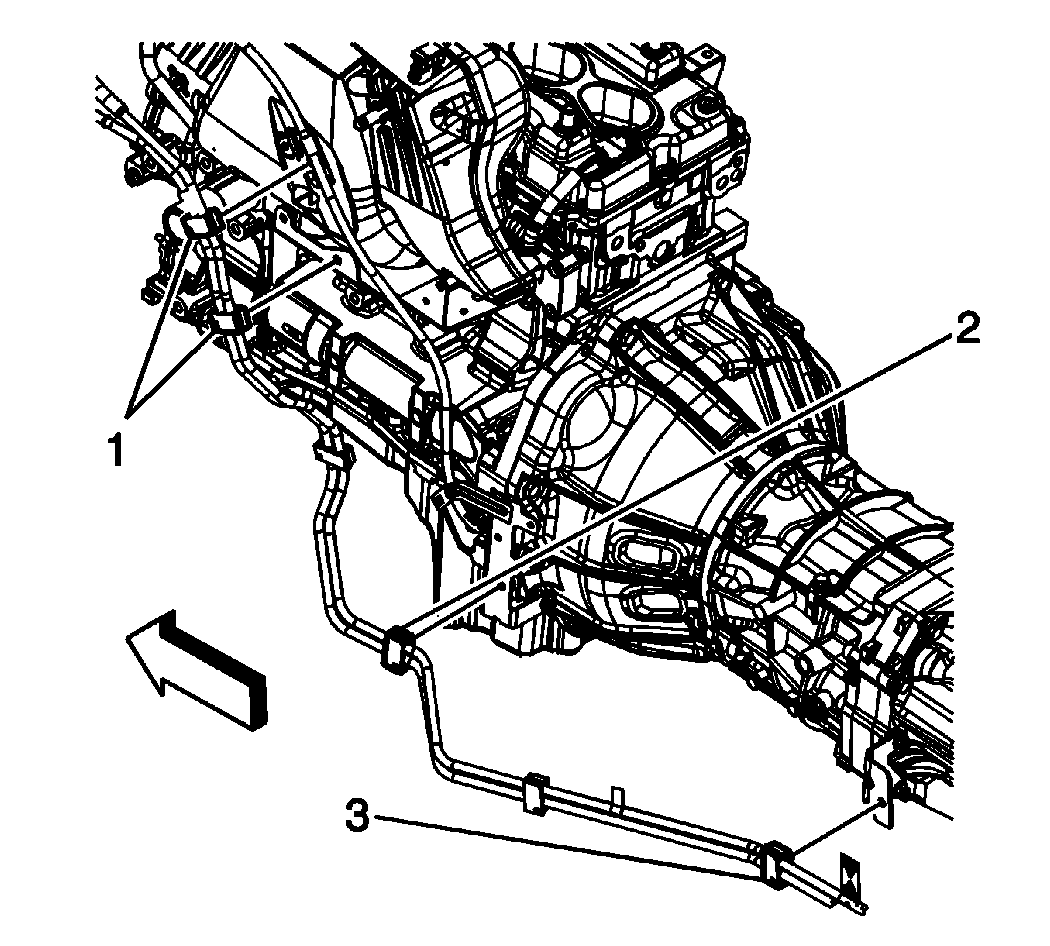

- If equipped with a manual transmission perform the following steps, engage the EVAP/fuel pipe clips (1 and 2) to the fuel pipe brackets.
- Lower the vehicle.
- Engage the EVAP/fuel pipe clips (1) to the oil indicator tube bracket and the engine wiring harness bracket.

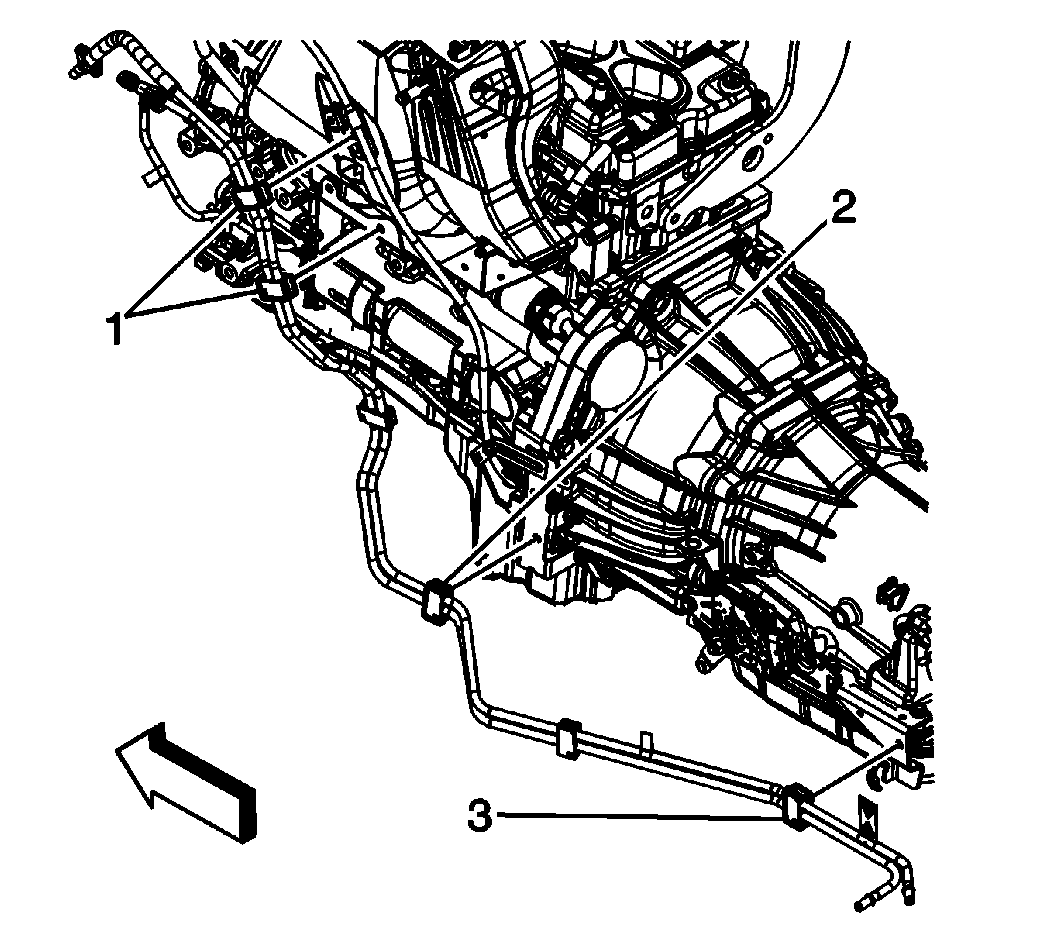

- If equipped with an automatic transmission perform the following steps, engage the EVAP/fuel pipe clip (3) to the transmission range selector lever bracket.
- Engage the EVAP/fuel pipe clip (2) to the fuel pipe bracket.
- Lower the vehicle.
- Engage the EVAP/fuel pipe clips (1) to the oil indicator tube bracket and the engine wiring harness bracket.
- Connect the EVAP line quick connect fitting (2) to the EVAP canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .
- Connect the fuel feed line quick connect fitting (1) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
- Inspect for leaks using the following procedure:
- Turn ON the ignition, with the engine OFF for 2 seconds.
- Turn OFF the ignition, for 10 seconds.
- Turn ON the ignition, with the engine OFF.
- Inspect for fuel leaks.
