Generator Battery Control Module Replacement (4 and 5 Cylinder)

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

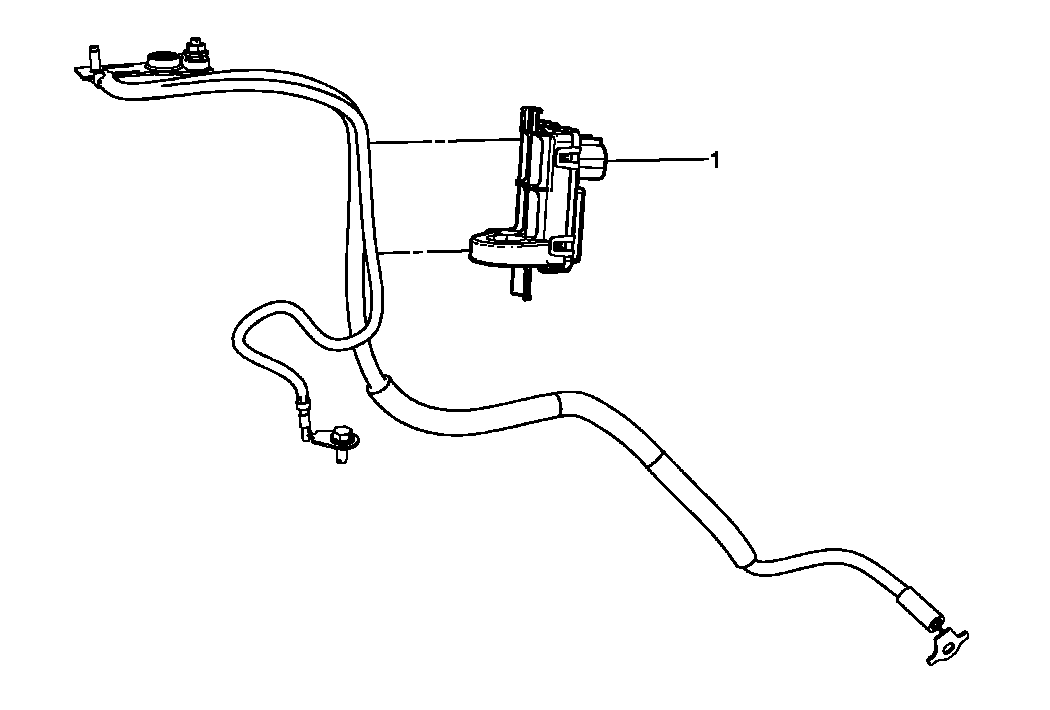

Fig 1: Generator Battery Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the positive and negative battery cables. Refer to Battery Positive and Negative Cable Replacement (LLV/LLR)
1	Generator Battery Control Module Procedure Separate the negative battery cable from the positive cable. Mark the position of the generator battery control module before removing it from the battery negative cable. Remove the tape and retainers holding the module in place. Slide the module down the negative cable routing any additional cables through the module loop. Tip: always use new tape and retainers when installing the generator battery control module.

Callout

Component Name

Preliminary Procedure

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the positive and negative battery cables. Refer to Battery Positive and Negative Cable Replacement (LLV/LLR)

Generator Battery Control Module

Procedure

Separate the negative battery cable from the positive cable.
Mark the position of the generator battery control module before removing it from the battery negative cable.
Remove the tape and retainers holding the module in place.
Slide the module down the negative cable routing any additional cables through the module loop.

Tip: always use new tape and retainers when installing the generator battery control module.
