Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Outside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Install the outside rearview mirror to the door, ensuring the retaining tab is fully engaged.

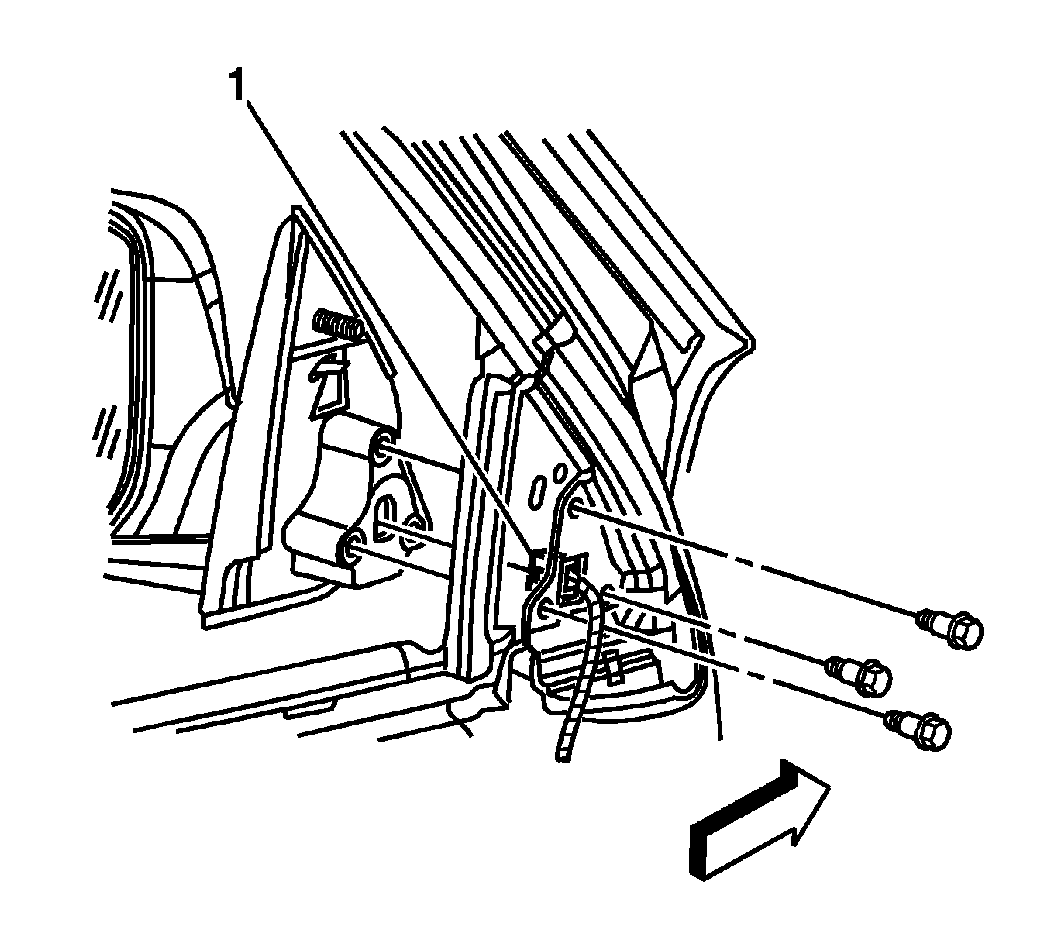

Fig 2: View Of Outside Rearview Mirror Electrical Connector

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the bolts retaining the outside review mirror to the door.
Tighten: Tighten the outside rearview mirror to 9 N.m (80 lb in).
Connect the electrical connector (1) to the outside rearview mirror, if equipped with DE6.
Install the front door upper trim. Refer to Front Side Door Trim Panel Replacement .
