Moveable Window Schematics

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

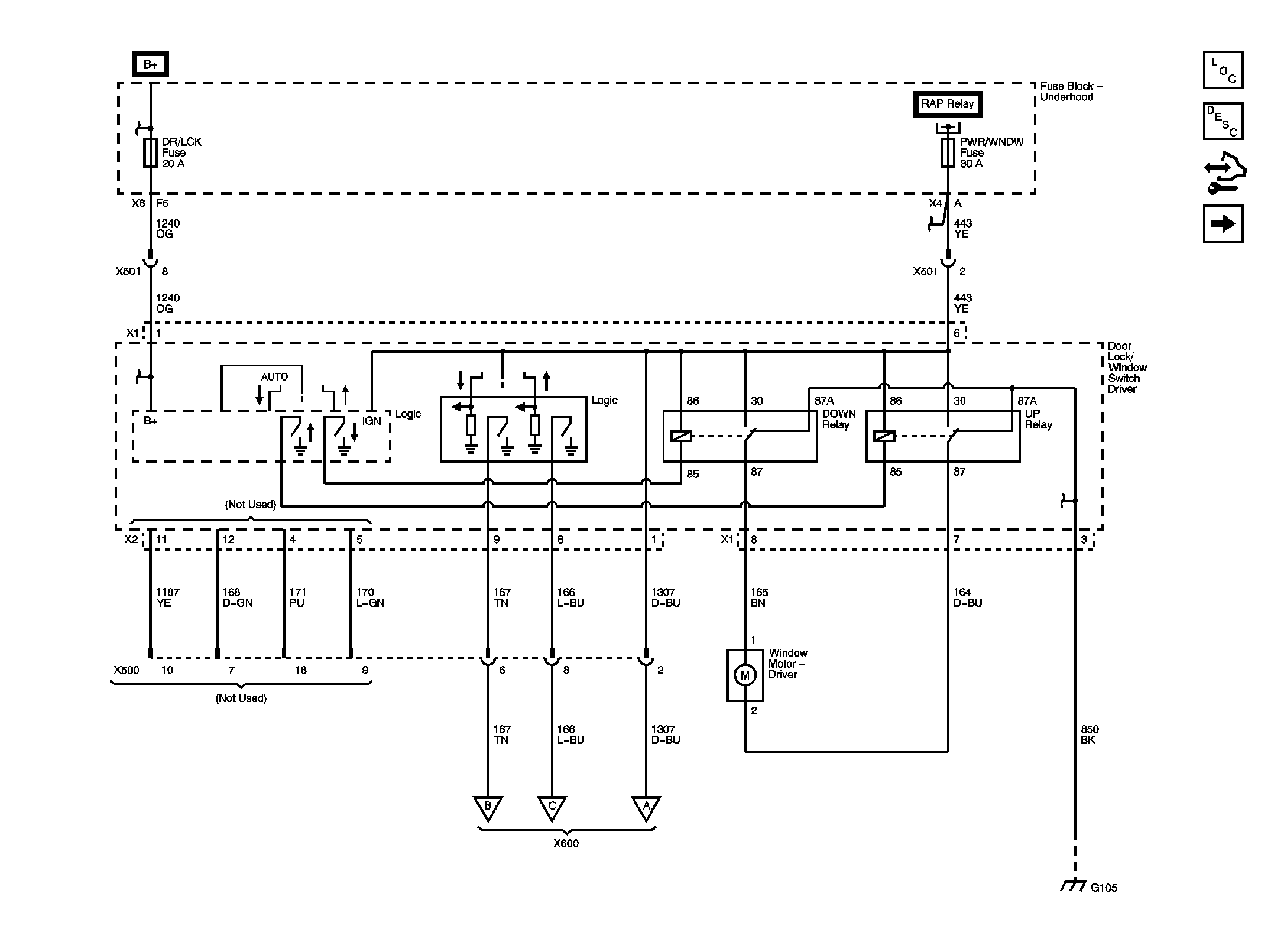

Fig 1: Left Window (Except Crew Cab)

Courtesy of GENERAL MOTORS CORP.

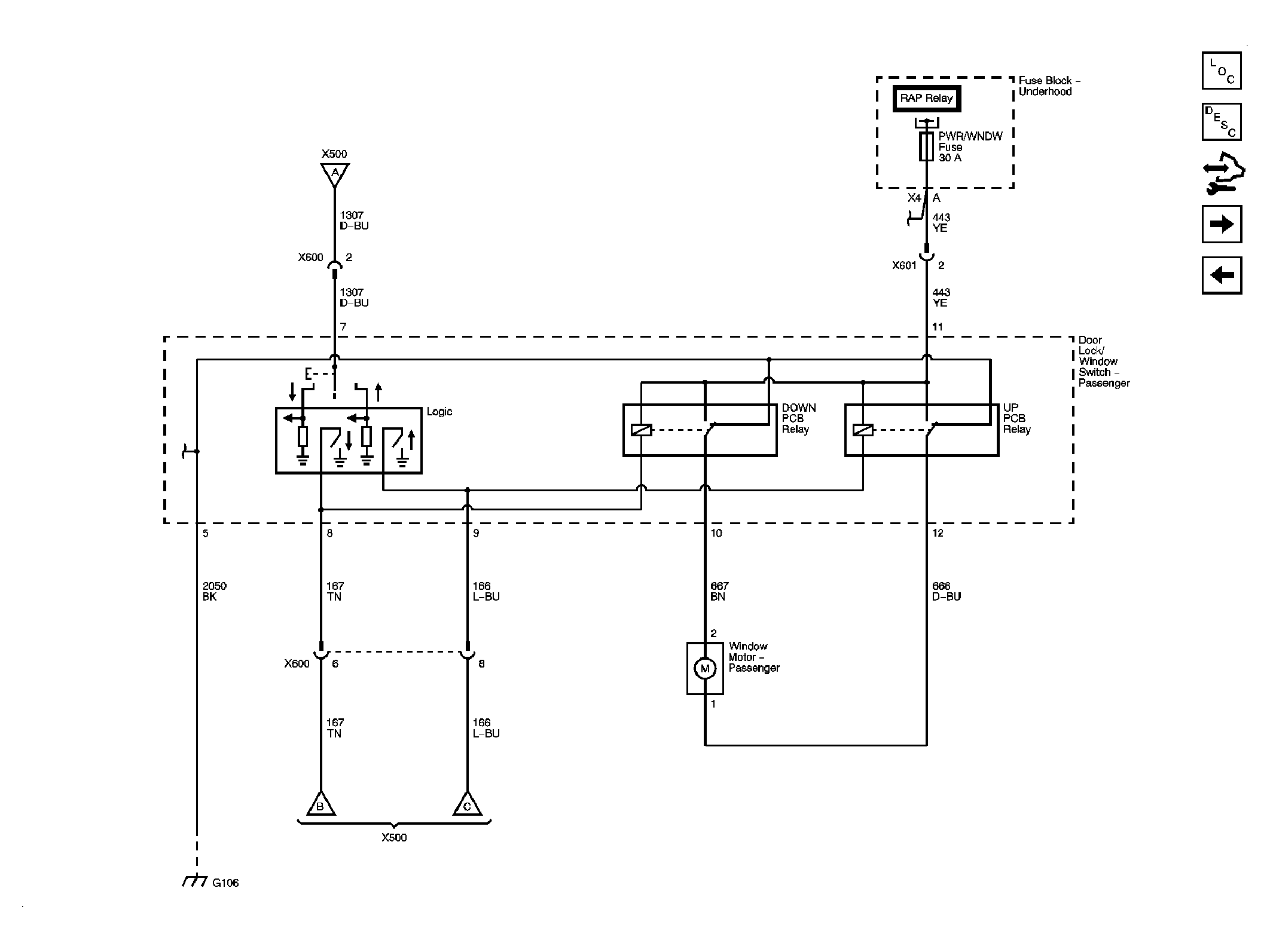

Fig 2: Right Window (Except Crew Cab)

Courtesy of GENERAL MOTORS CORP.

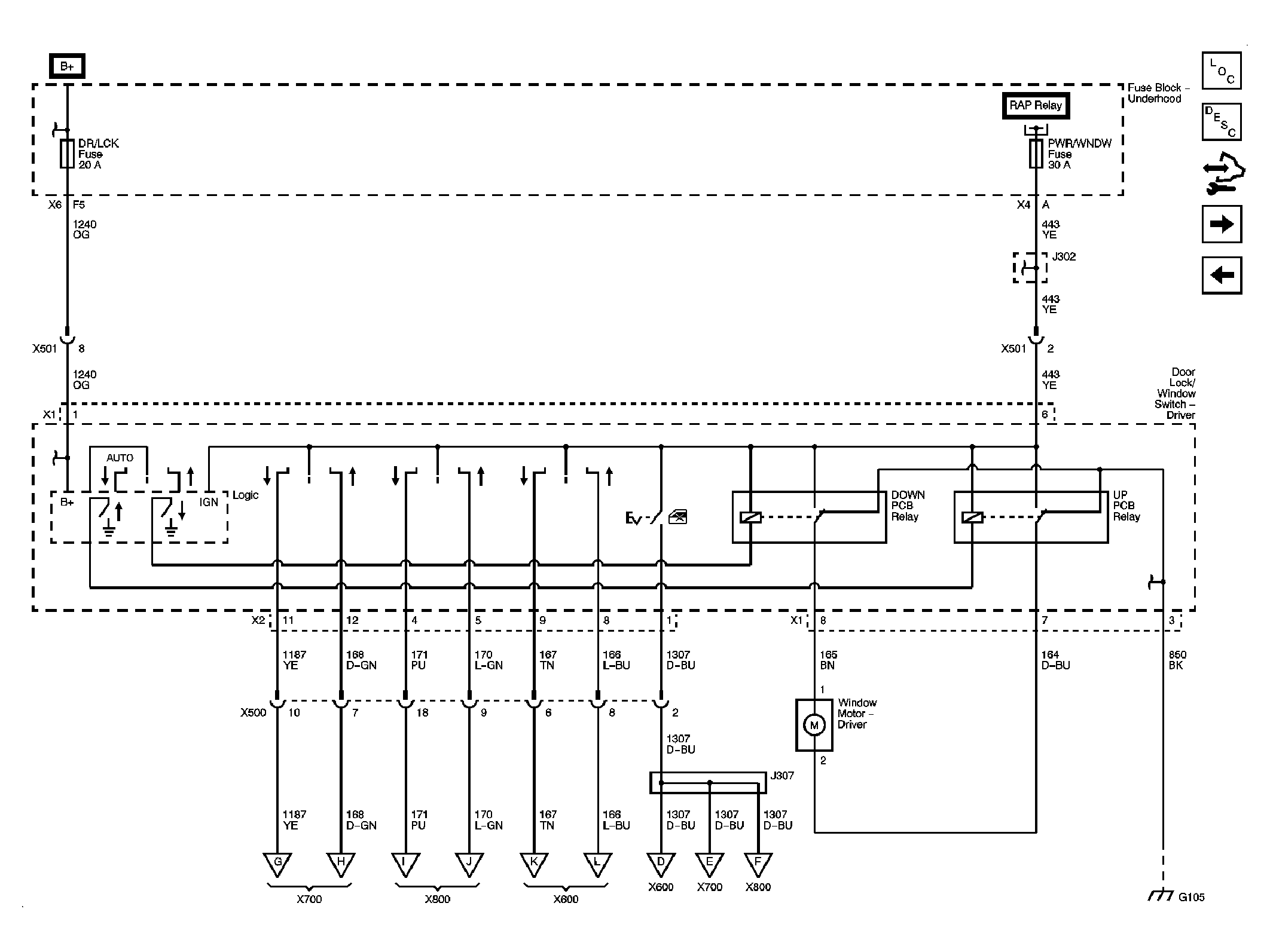

Fig 3: Left Front Window (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

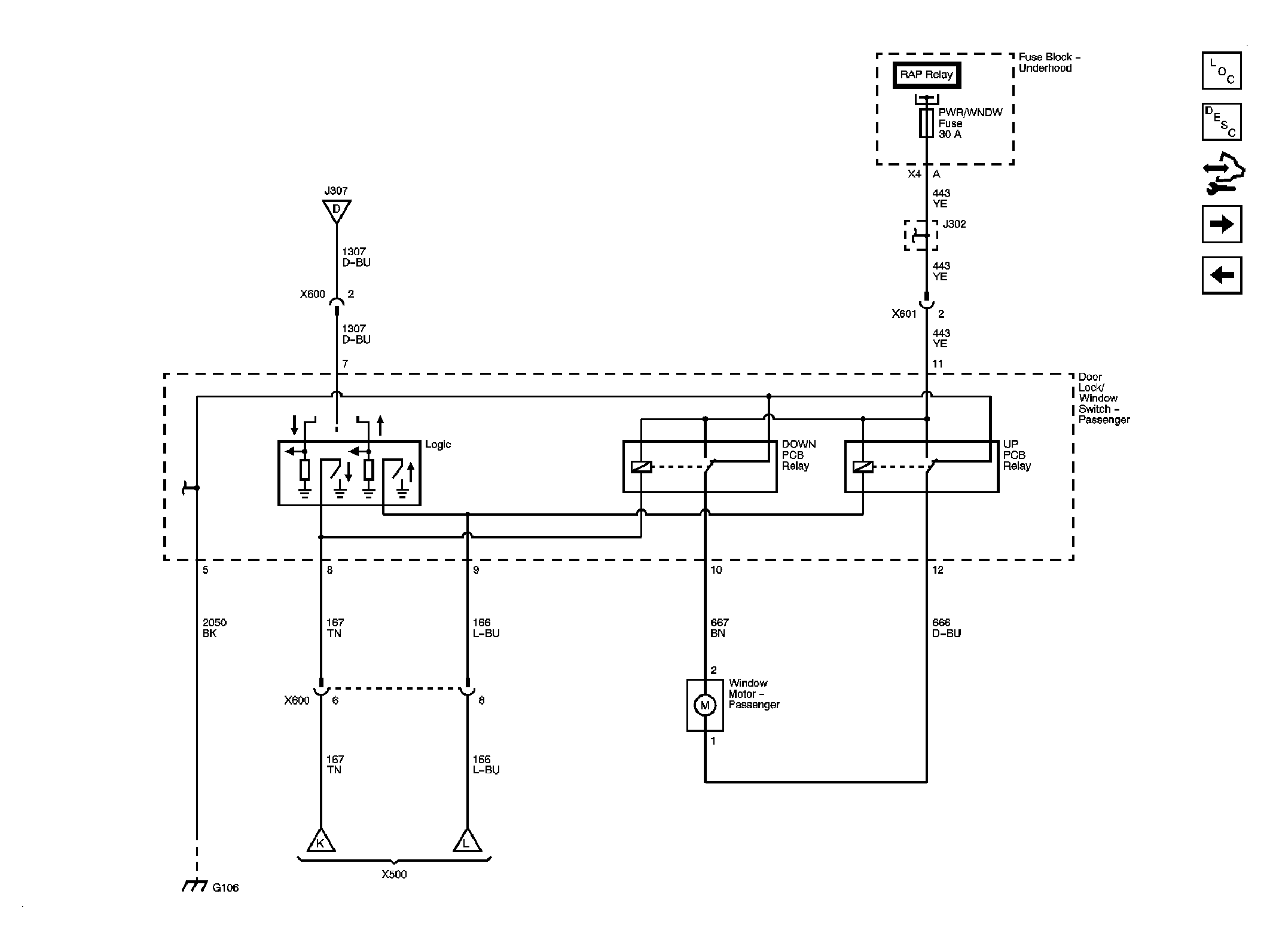

Fig 4: Right Front Window (Crew Cab)

Courtesy of GENERAL MOTORS CORP.

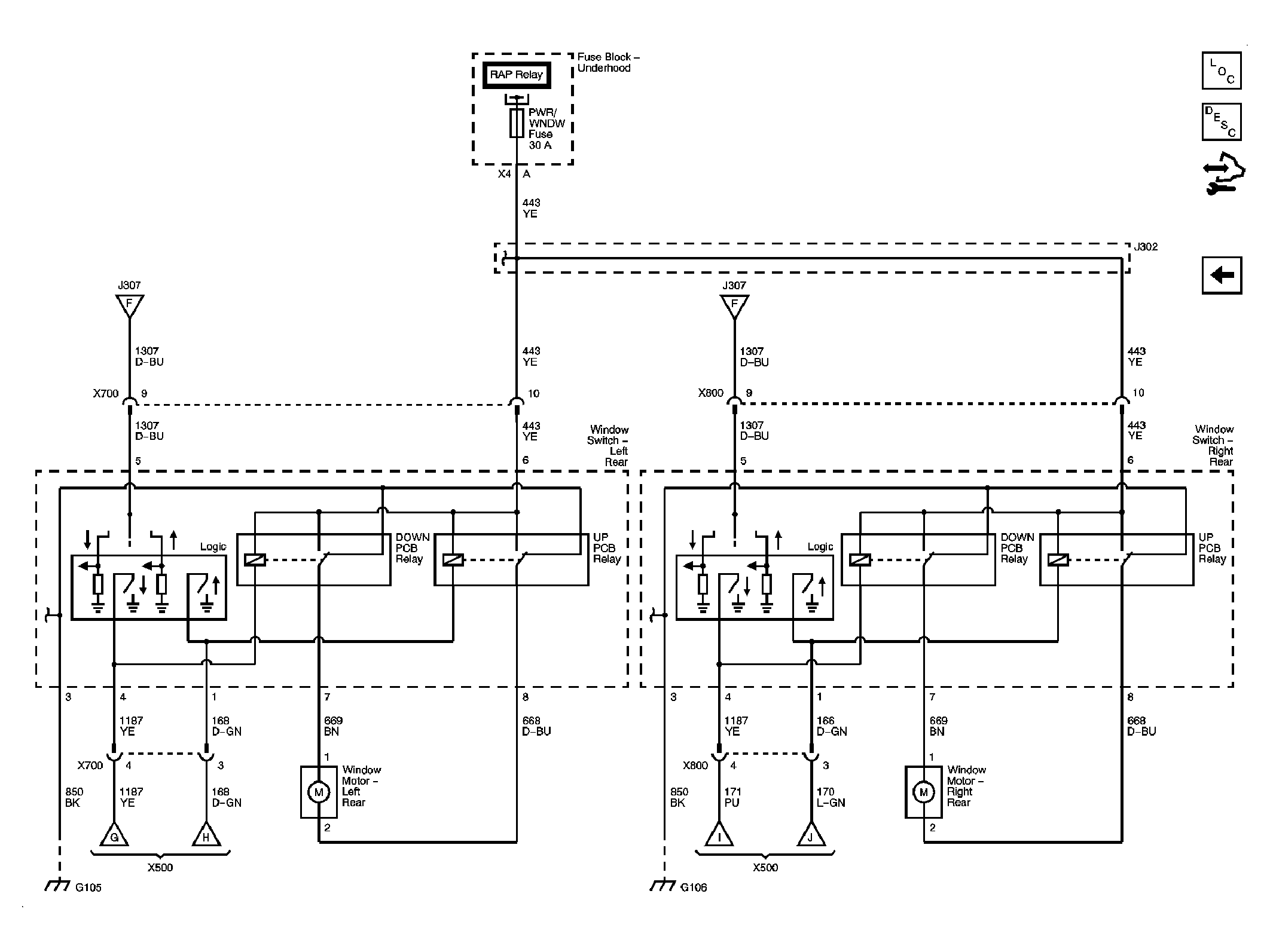

Fig 5: Rear Doors (Crew Cab)

Courtesy of GENERAL MOTORS CORP.
