Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front door window regulator into the front door through the access hole.

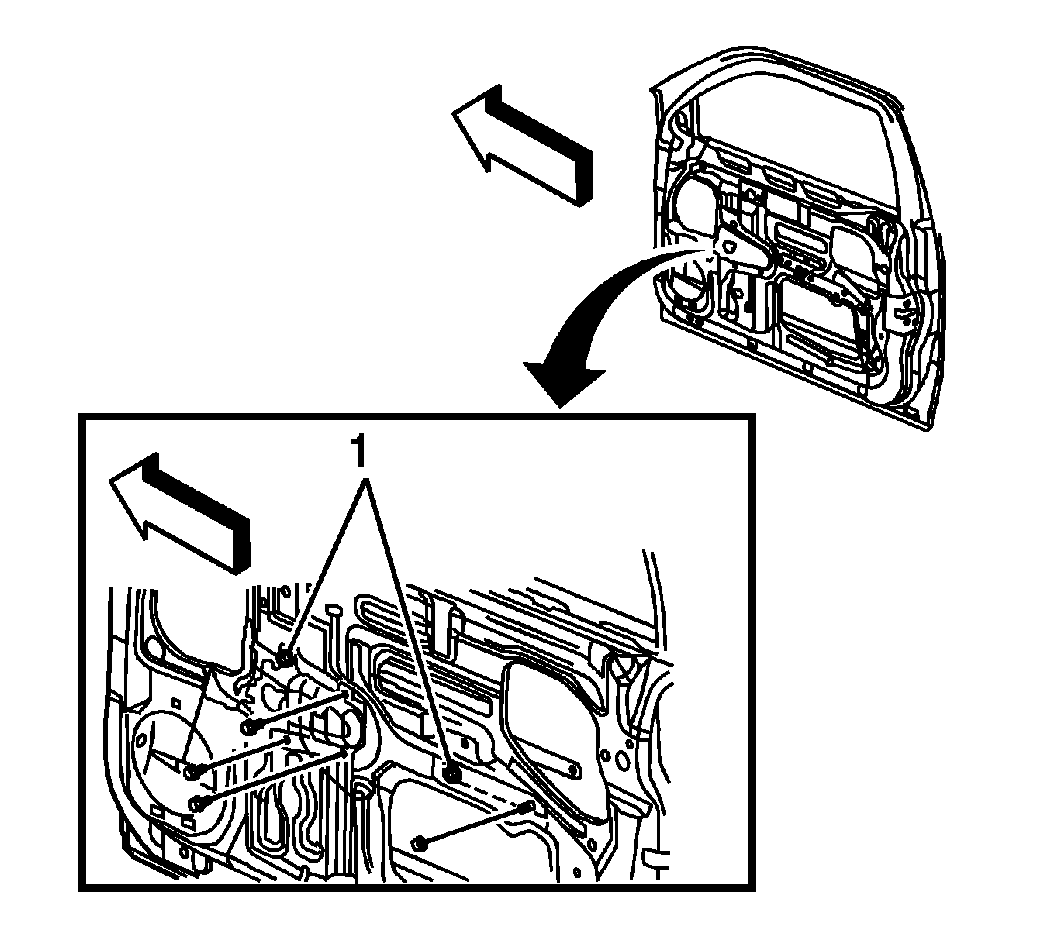

    2. Fig 1: View Of Window Regulator Retaining Bolts
    GM1257630Courtesy of GENERAL MOTORS CORP.
  2. Position the window regulator to the inner panel by sliding the regulator bolts (1) into the keyhole slots in the inner panel.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the fastener retaining the front door window regulator to the door. Tighten the front window regulator fasteners to 9 N.m (80 lb in).
  4. Connect the electrical connector to the window regulator motor, if equipped with A31.

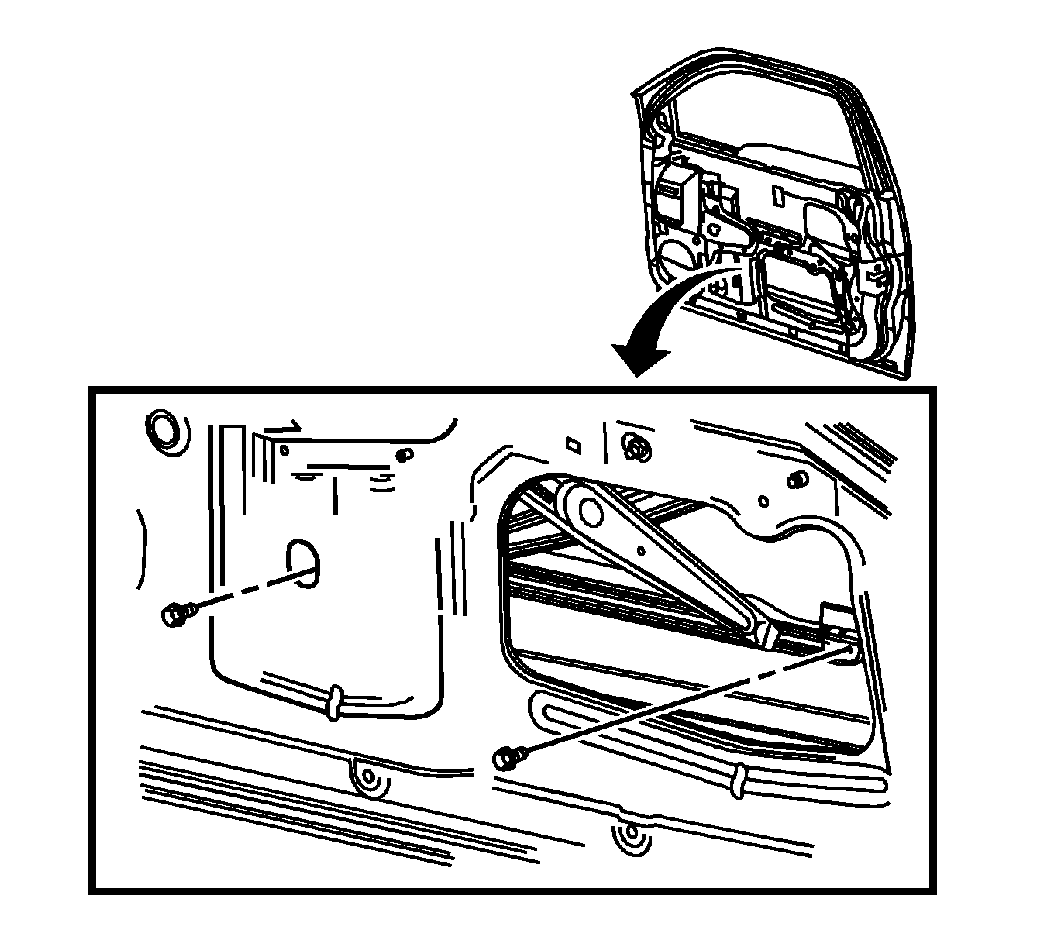

    5. Fig 2: View Of Front Door Window Retaining Bolts
    GM1350827Courtesy of GENERAL MOTORS CORP.
  5. Install the front door window. Refer to Front Side Door Window Replacement .
  6. Install the bolts retaining the window to the window regulator. Tighten the front door window bolts to 9 N.m (80 lb in).
  7. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  8. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
