Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

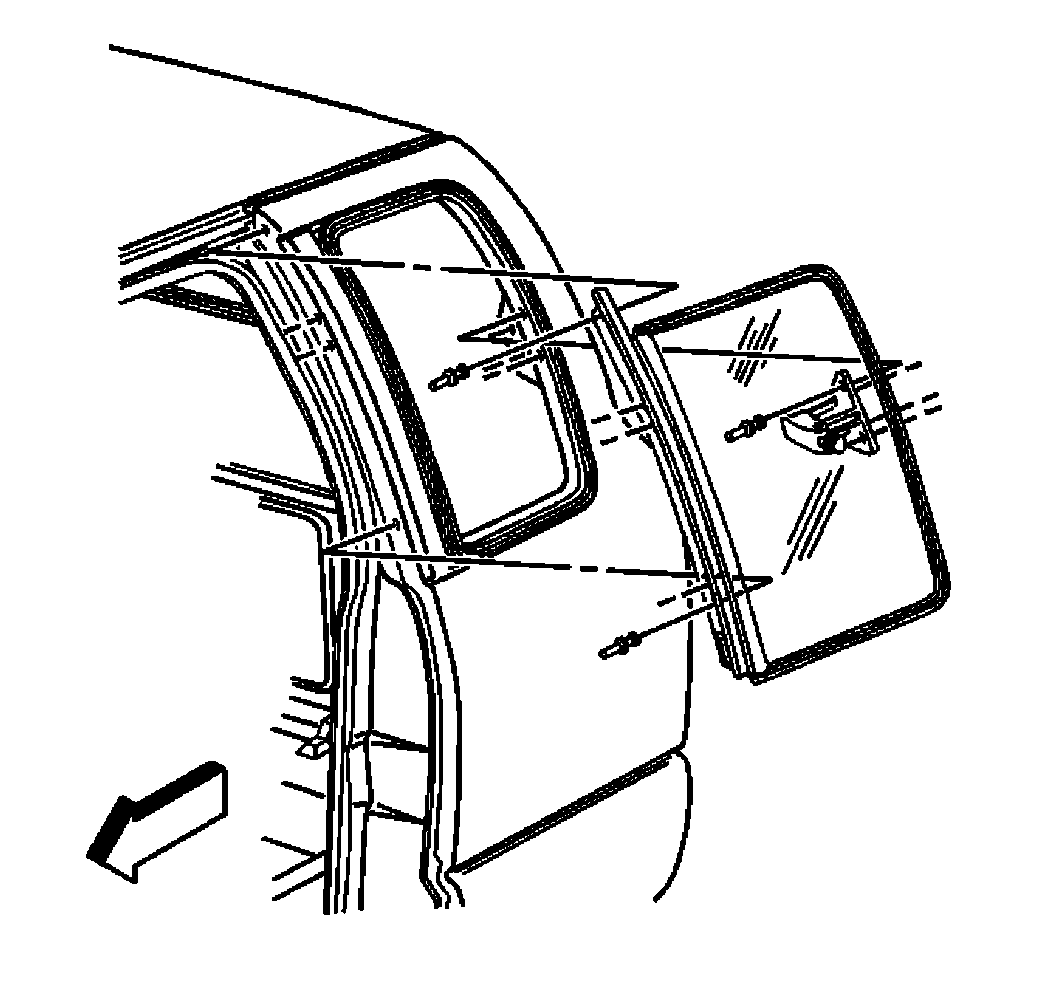

    Fig 1: View Of Body Side Stationary Window
    GM392924Courtesy of GENERAL MOTORS CORP.
  1. Install the window assembly to the vehicle.
  2. Using the J 34940  , or equivalent, install the rivets in order to retain the window assembly to the vehicle.
  3. Install the seat belt retractor. Refer to Driver or Passenger Seat Belt Replacement (Crew Cab) or Driver or Passenger Seat Belt Replacement (Regular and Extended Cab) .
  4. Install the latch pin.

    Using a punch, carefully drive the pin into the latch.
