Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of HVAC Control Assembly Mode & Temperature Cables
    GM873745Courtesy of GENERAL MOTORS CORP.
  1. Install the HVAC control assembly.
  2. Connect the HVAC control assembly electrical connectors.
    3. NOTE: Do not bend the mode and temperature cables.
  3. Connect the mode cable to the HVAC control assembly. Refer to Mode Control Cable Replacement .
  4. Connect the temperature cable to the HVAC control assembly. Refer to Temperature Control Cable Replacement .

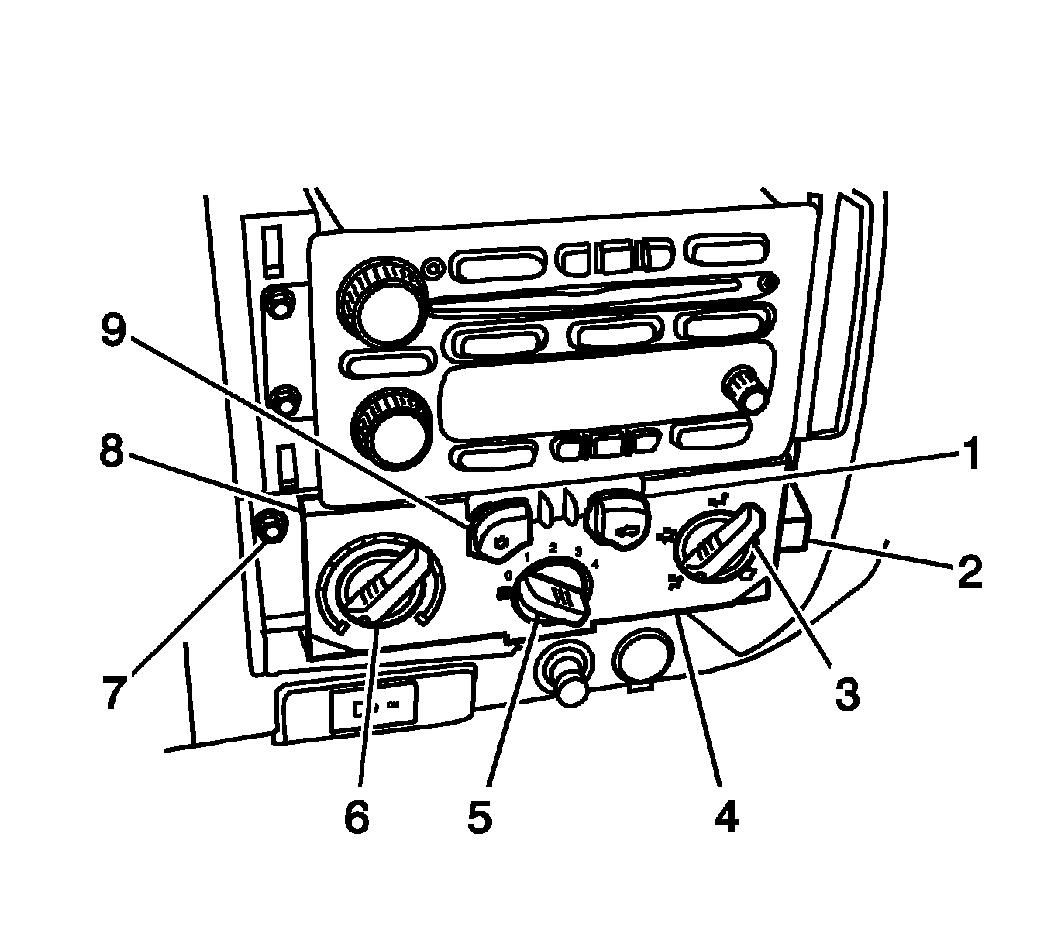

    5. Fig 2: Identifying HVAC Control Assembly Components
    GM1222586Courtesy of GENERAL MOTORS CORP.
  5. Install the HVAC control assembly to the instrument panel.
    6. CAUTION: Refer to Fastener Caution .
  6. Install the HVAC control assembly screws. Tighten the screws to 1.9 N.m (18 lb in).
  7. Install the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
