Installation Procedures

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Seat Cushion Frame Bladder Retainers
    GM811858Courtesy of GENERAL MOTORS CORP.
  1. Install the inflatable restraint passenger presence system to the seat.
  2. Install the push-in retainers (1) that hold the bladder to the seat cushion frame.

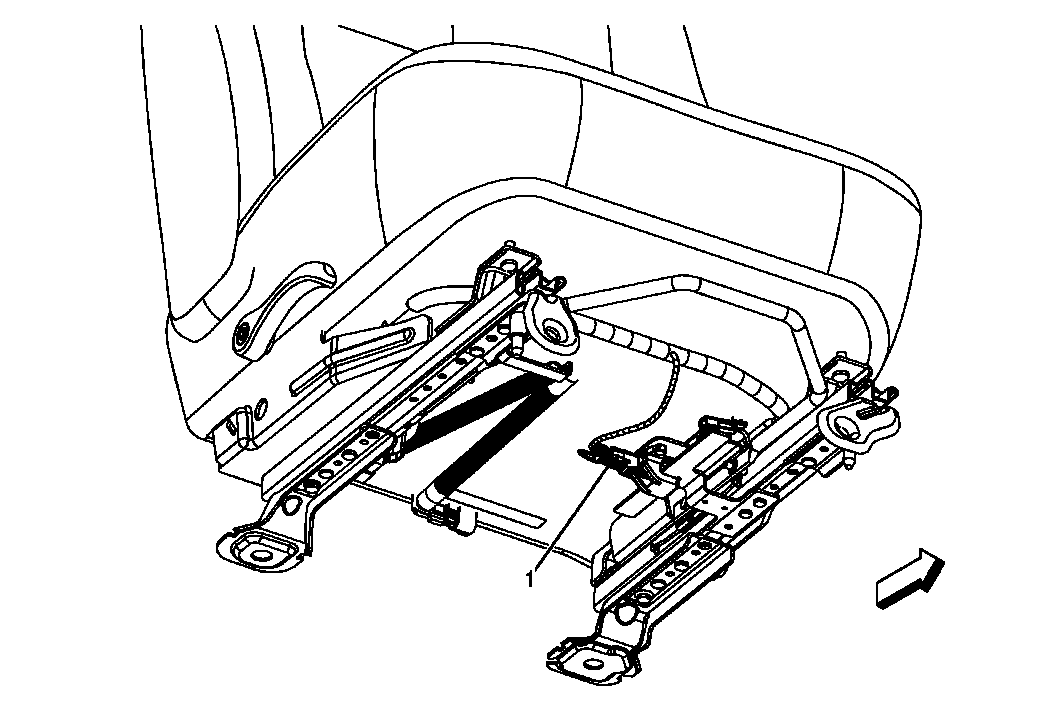

    3. Fig 2: Identifying Pressure Switch
    GM2313255Courtesy of GENERAL MOTORS CORP.
  3. Install the pressure sensor (1) to the bottom of the passenger seat cushion frame.
  4. Connect the electrical connectors.
  5. Install the seat cushion trim cover and pad.
  6. No re-zeroing or control module is required with -AL0 options.
