Starting and Charging Schematics

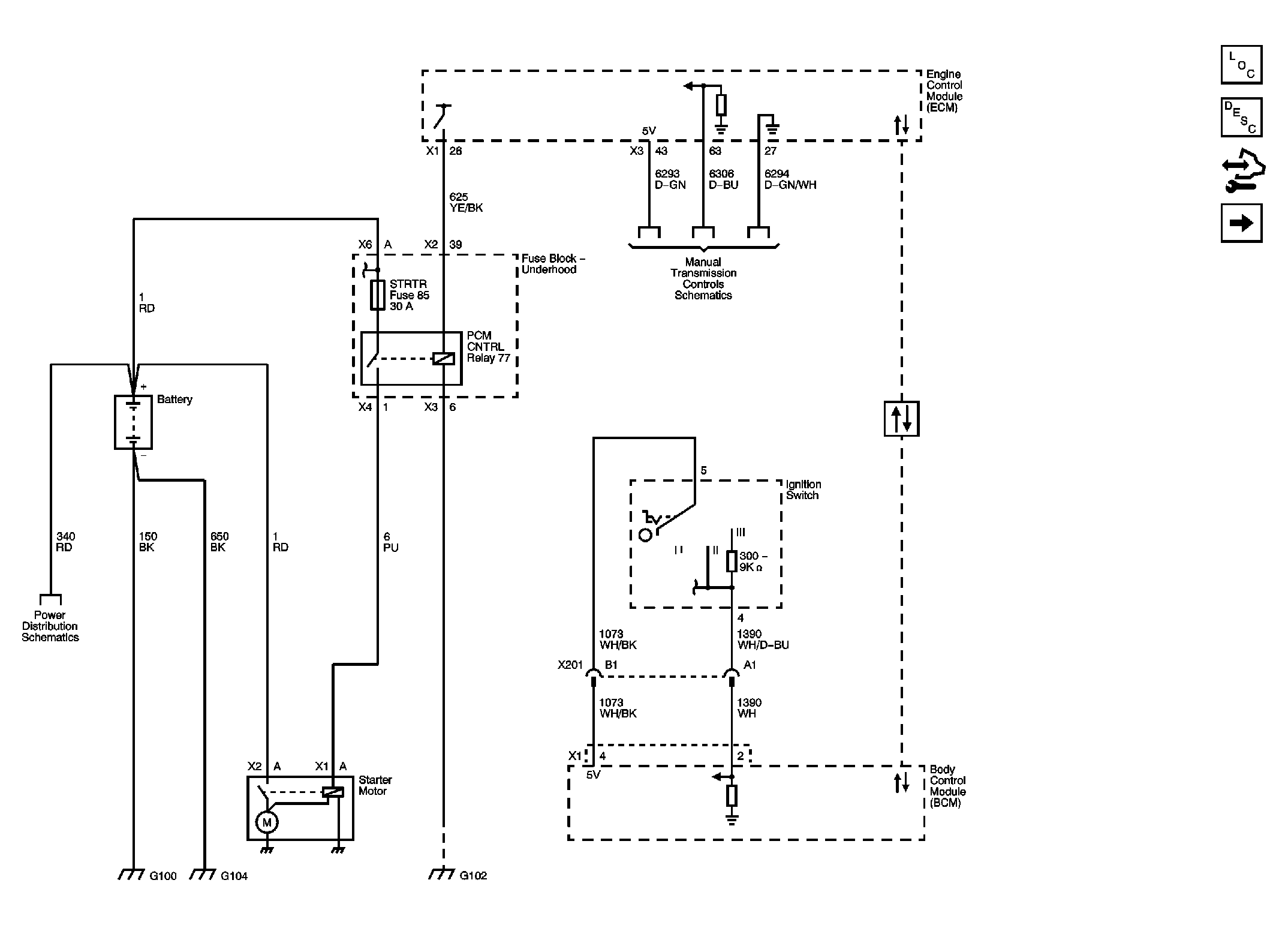

Fig 1: Starting (MA5)
Courtesy of GENERAL MOTORS CORP.

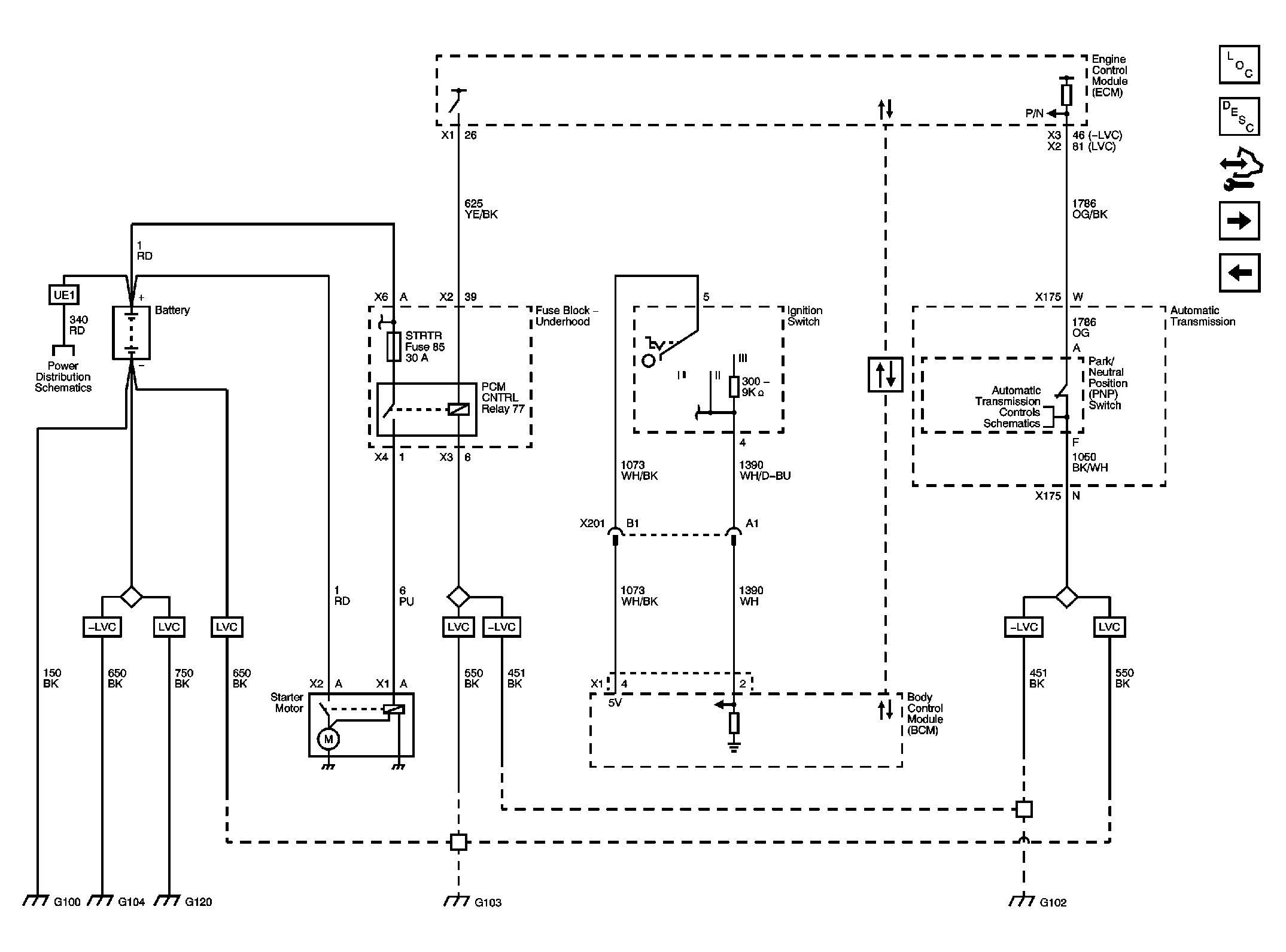

Fig 2: Starting (M30 or MD8)
Courtesy of GENERAL MOTORS CORP.

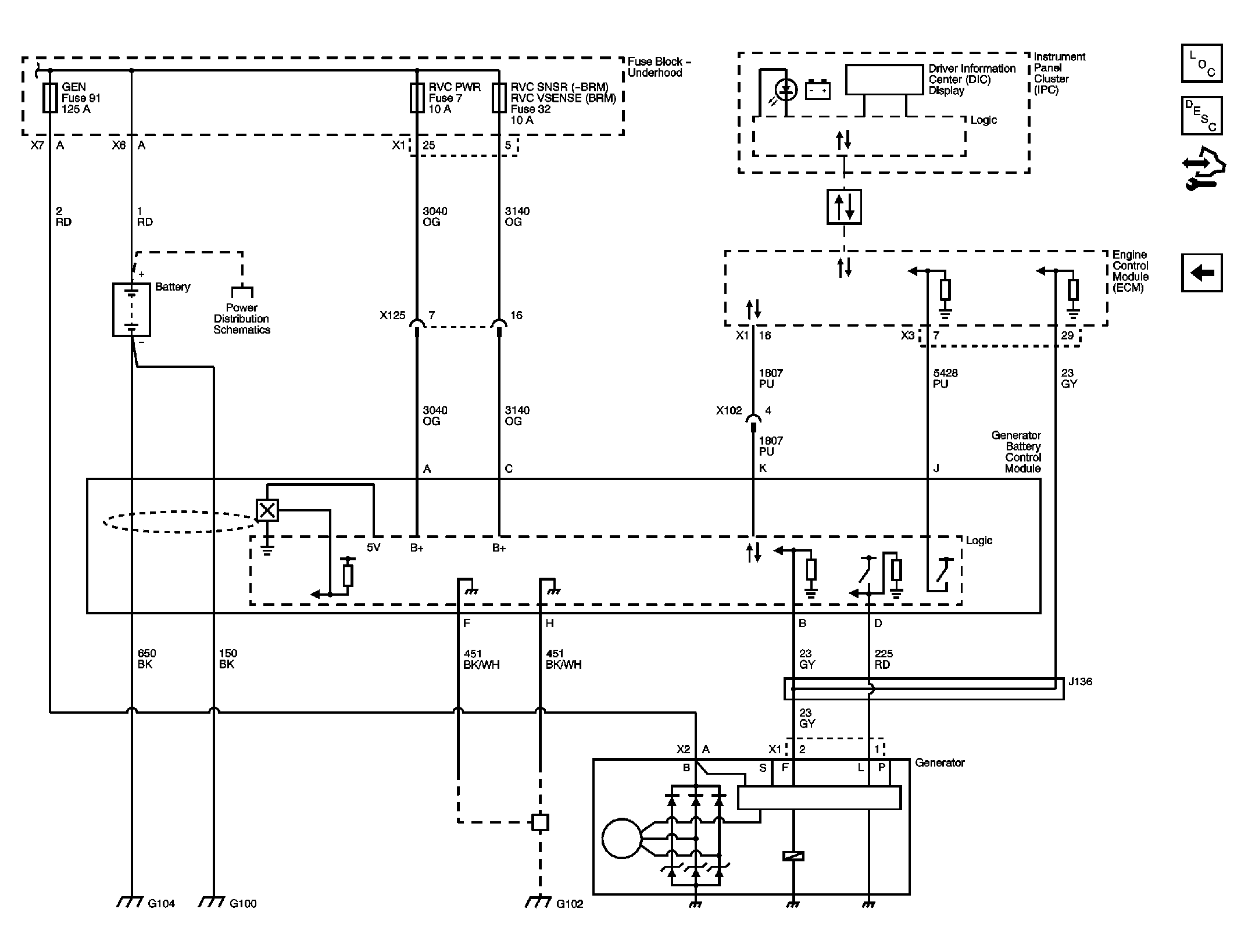

Fig 3: Charging
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
