Pickup Box Endgate Latch Rod Replacement

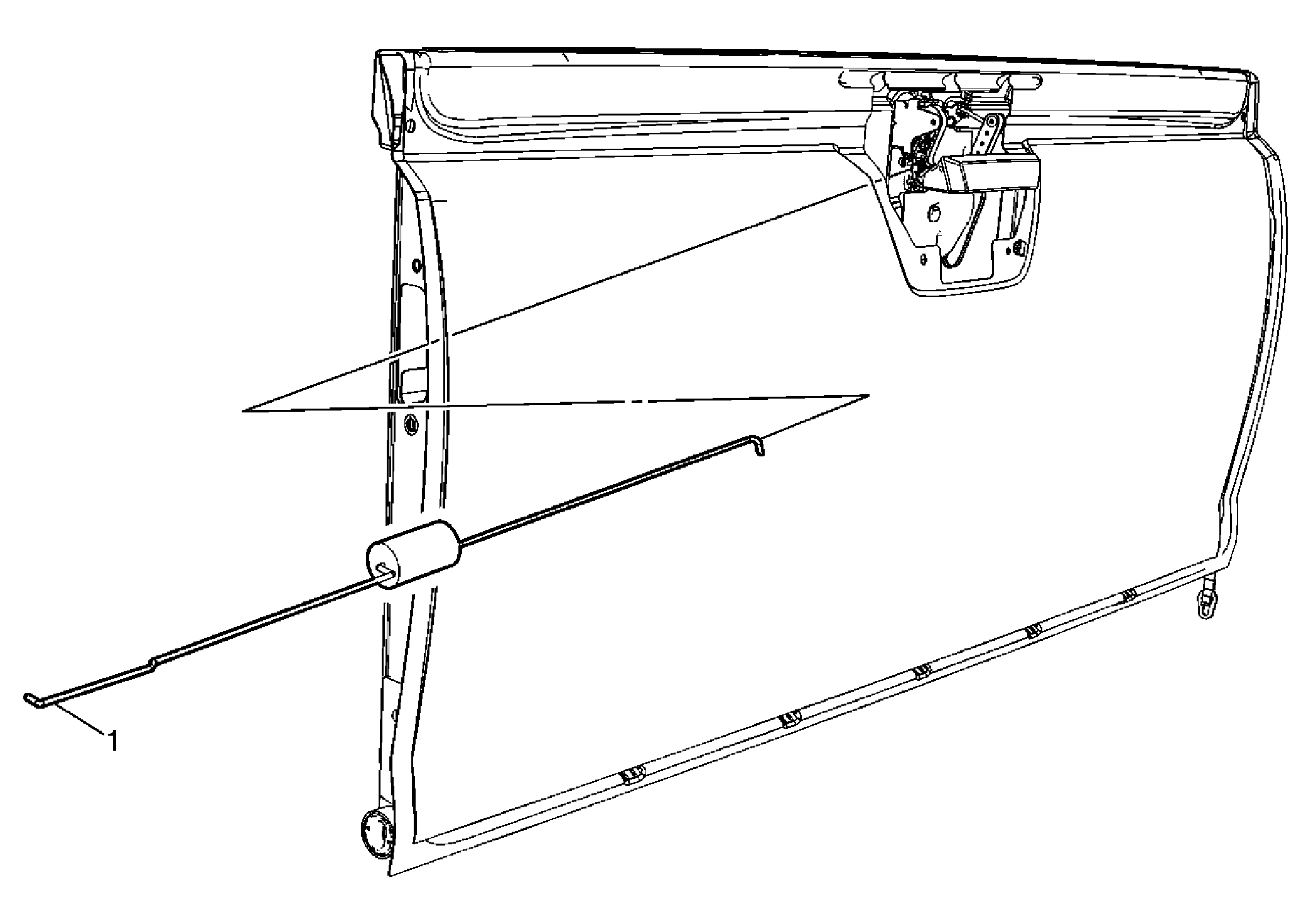

Fig 1: Pickup Box Endgate Latch Rod
GM1936997Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the endgate handle. Refer to Endgate Handle Replacement .
  2. Remove the endgate latch. Refer to Endgate Latch Replacement .
1 Endgate Latch Rod Assembly
