Headlamp Switch Replacement

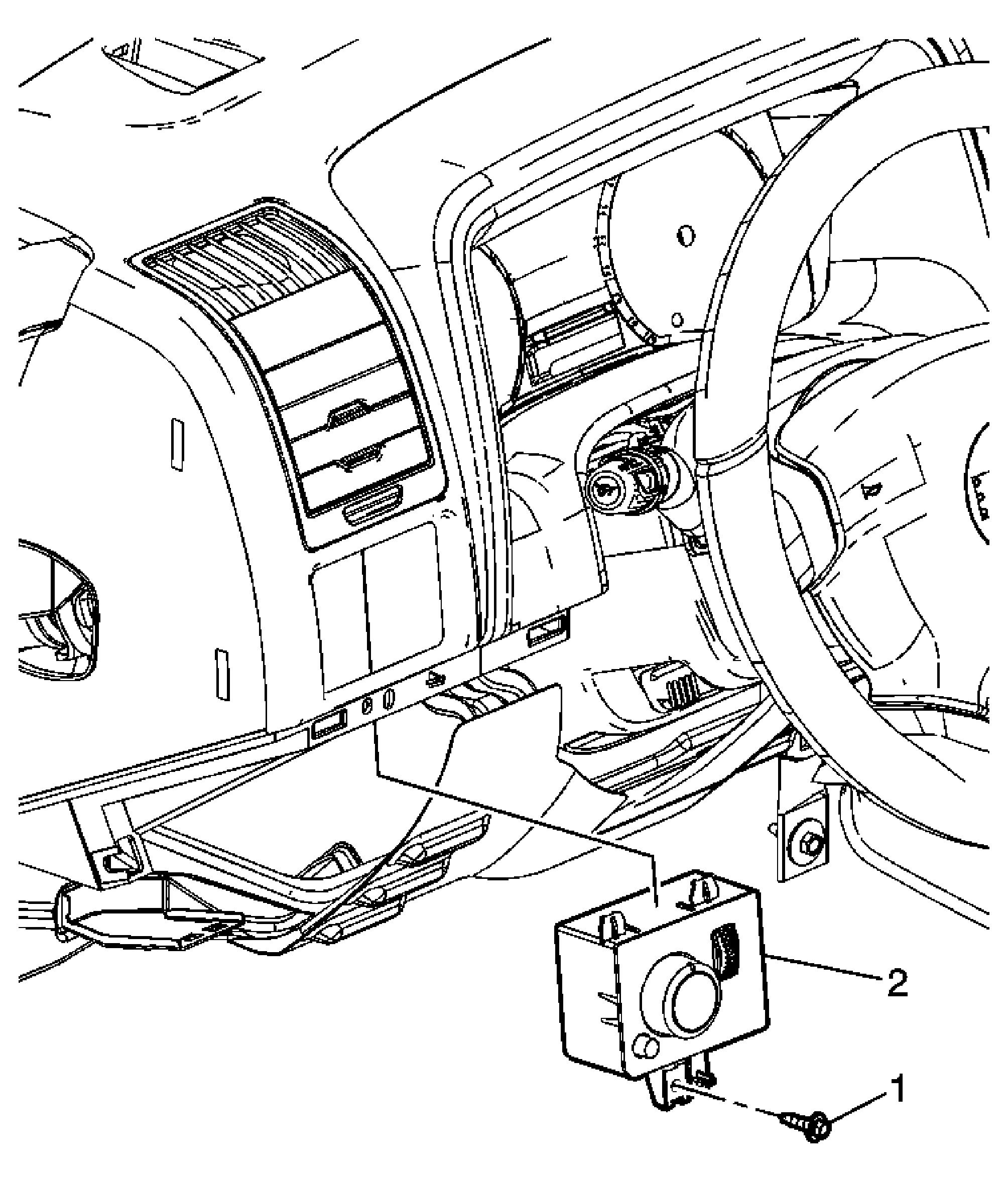

Fig 1: Headlamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the left knee bolster panel. Refer to Driver Knee Bolster Replacement (Left Hand Drive) or Driver Knee Bolster Replacement (Right Hand Drive) .
1	Headlamp Switch Screw CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Headlamp Switch Assembly Tip: Disconnect the electrical connector.
