Rear Object Sensors (UD7) Wiring Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

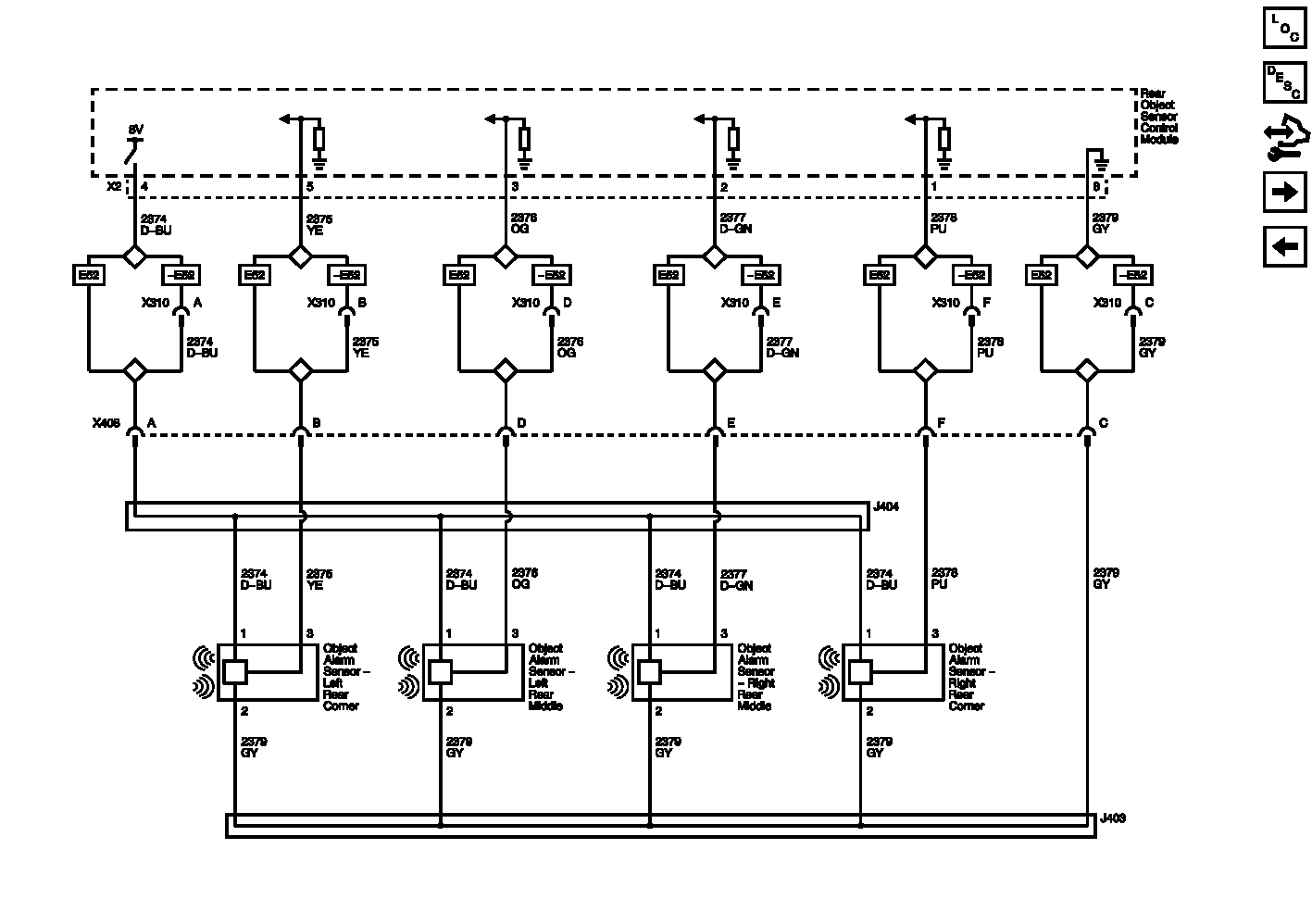

Fig 1: Rear Object Sensors (UD7) Wiring Schematics
GM2643473Courtesy of GENERAL MOTORS COMPANY
