Removal & Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Letters in parenthesis refer to letters in illustration.

Detach clips (A), (B) and (C) and remove the upper panel. See Fig 1.
Detach clips (D), (E) and (F) and remove the boot panel. See Fig 2.
Remove screws (A). Detach clips (G). Disconnect the cigarette lighter connector. Remove the ashtray illumination, then remove the ashtray panel. See Fig 3.
Remove the screws (B). Detach tabs (H) and remove the console. See Fig 4.
To install, reverse removal procedure.

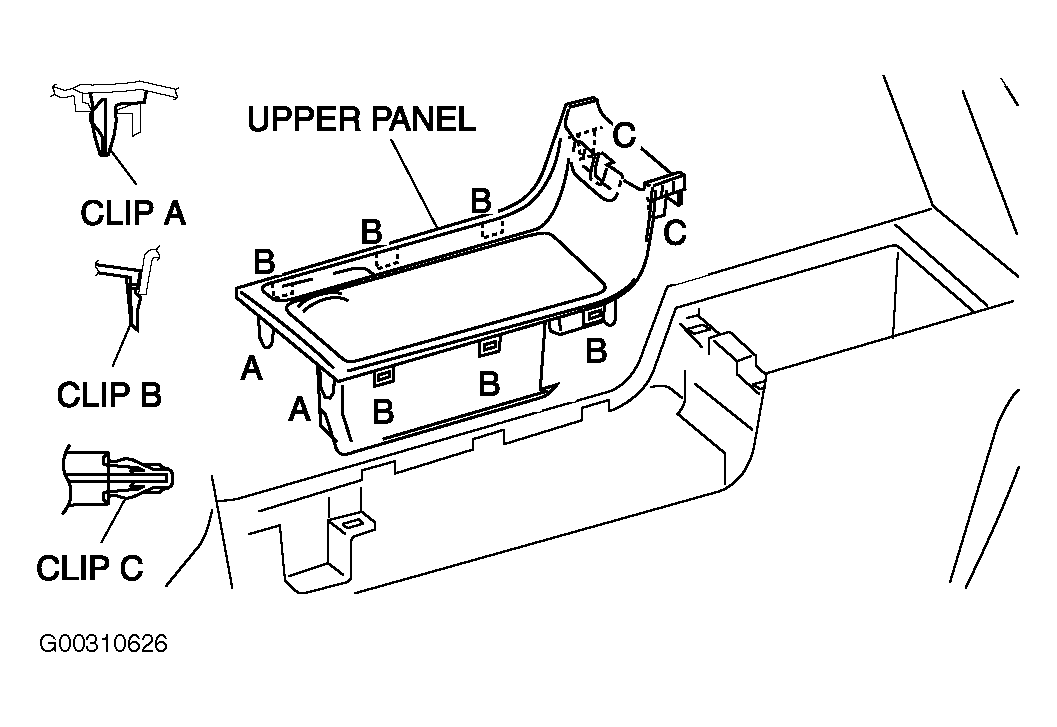

Fig 1: Removing Upper Panel

Courtesy of MAZDA MOTORS CORP.

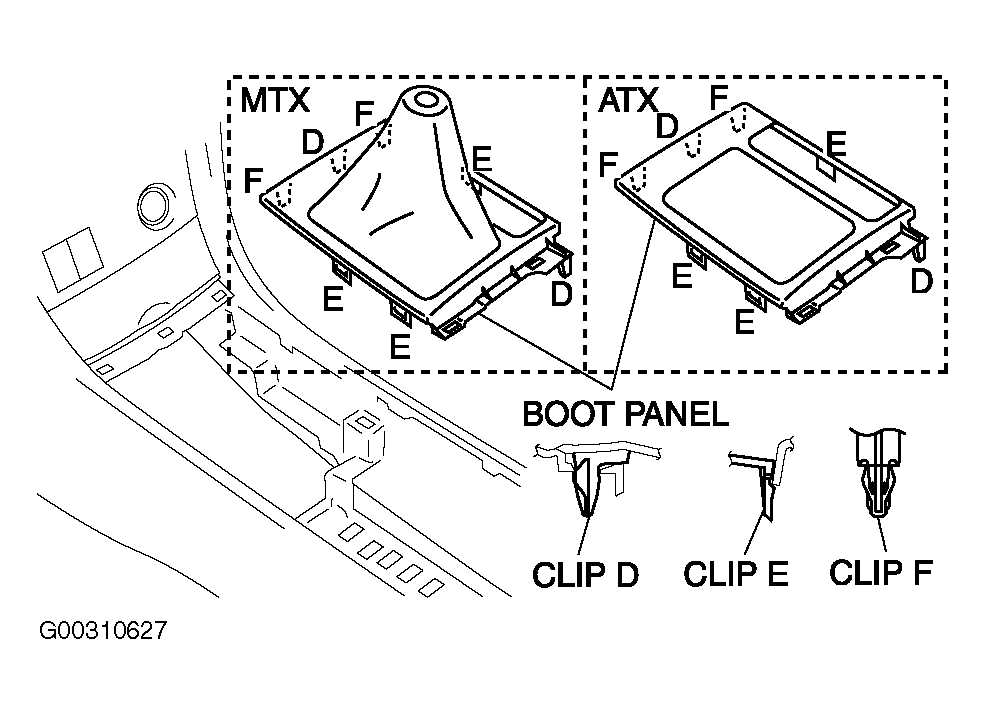

Fig 2: Removing Boot Panel

Courtesy of MAZDA MOTORS CORP.

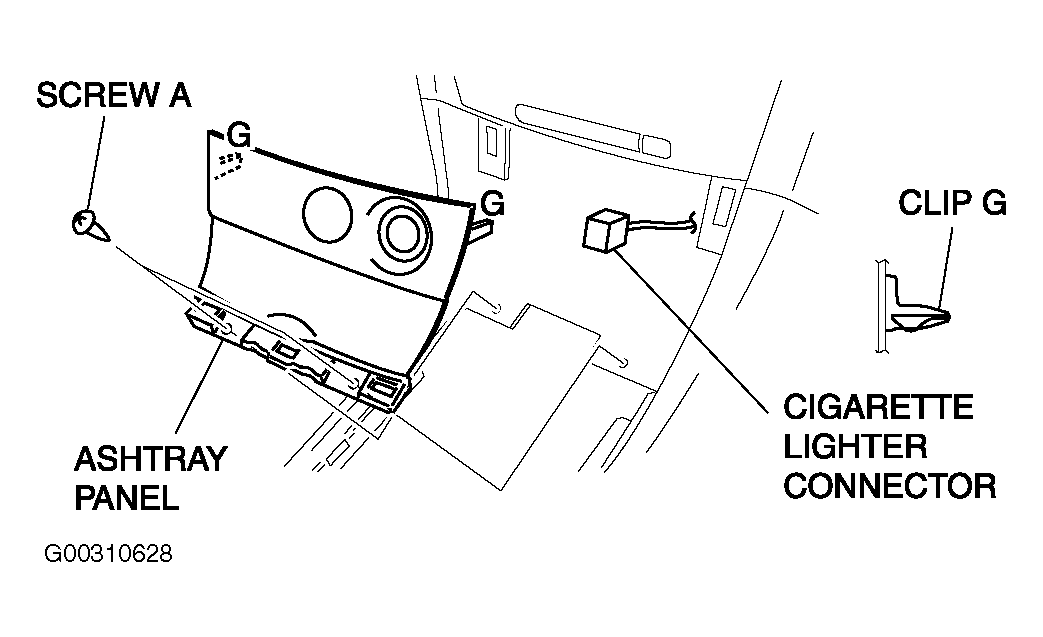

Fig 3: Removing Ashtray Panel

Courtesy of MAZDA MOTORS CORP.

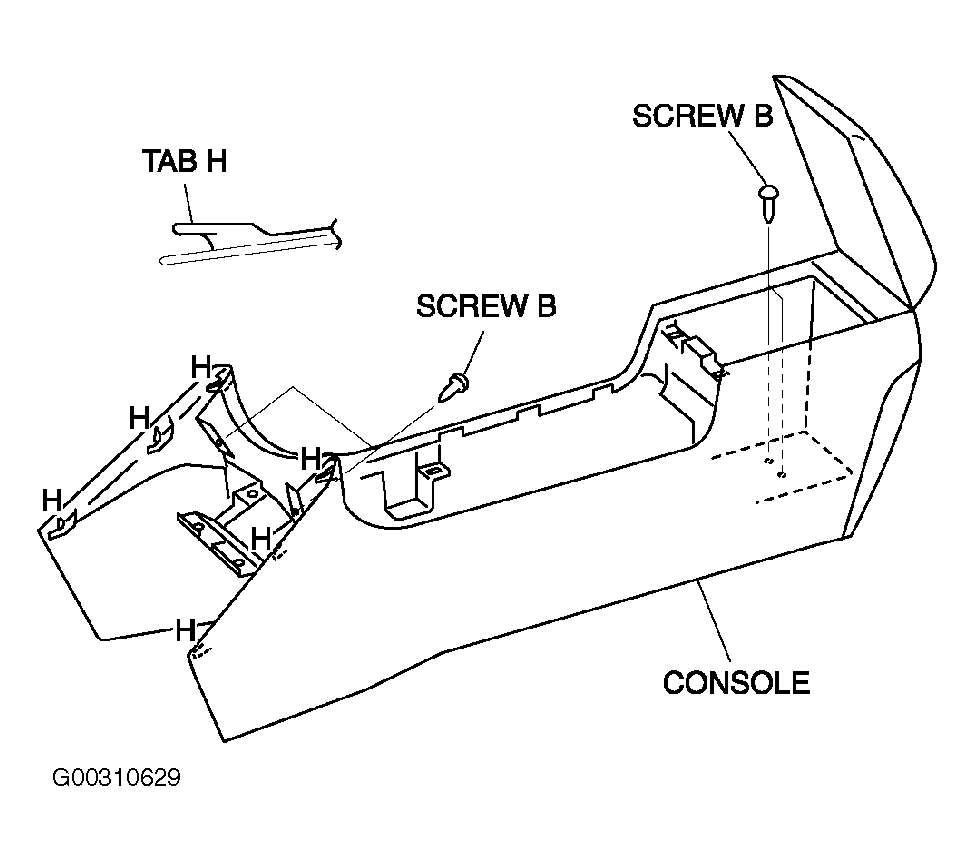

Fig 4: Removing Console

Courtesy of MAZDA MOTORS CORP.
