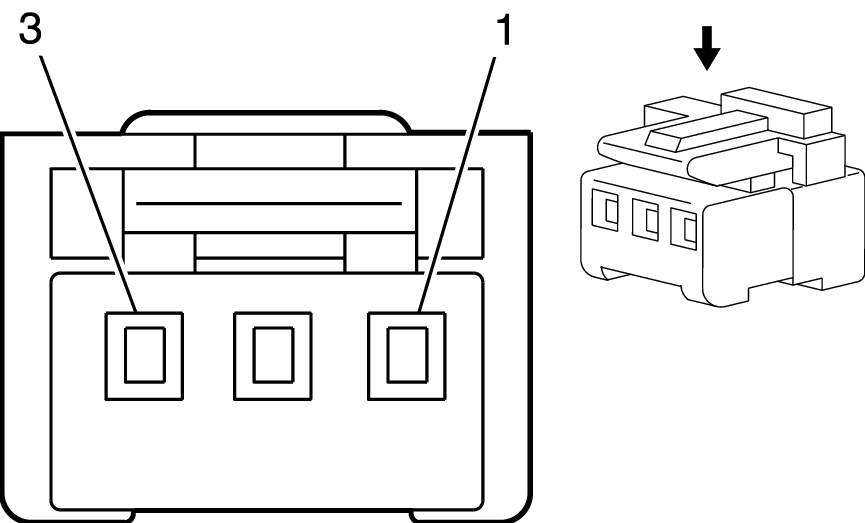

Digital Video Disc (DVD) Control Module X1 (SPO DVD)
Courtesy of GENERAL MOTORS CORP. Digital Video Disc (DVD) Control Module X1 (SPO DVD)
| Pin |
Wire |
Circuit |
Function |
| 1 |
BK |
- |
Ground |
| 2 |
- |
- |
Not Used |
| 3 |
RD |
- |
Accessory Voltage |
Connector Part Information
- Harness: SPO Accessory Power Jumper
- OEM: Not Available
- Service: Service by Harness - See Part Catalog
- Description: 3-Way F (WH)
|
Terminal Part Information
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
- Release Tool/Test Probe: Not Available
|
