Moveable Window Schematics

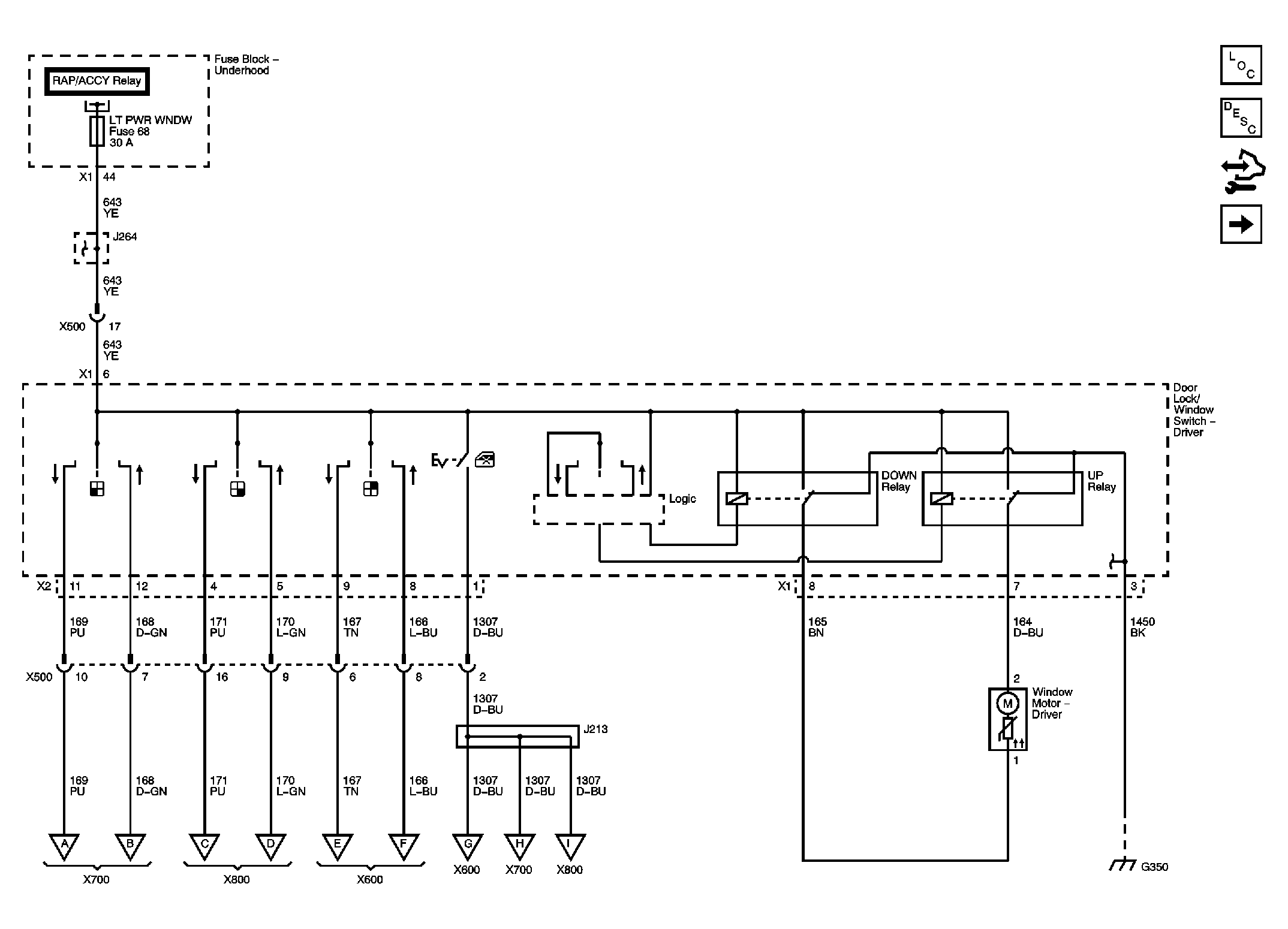

Fig 1: Driver Door (Left Hand Drive)
GM2244025Courtesy of GENERAL MOTORS CORP.

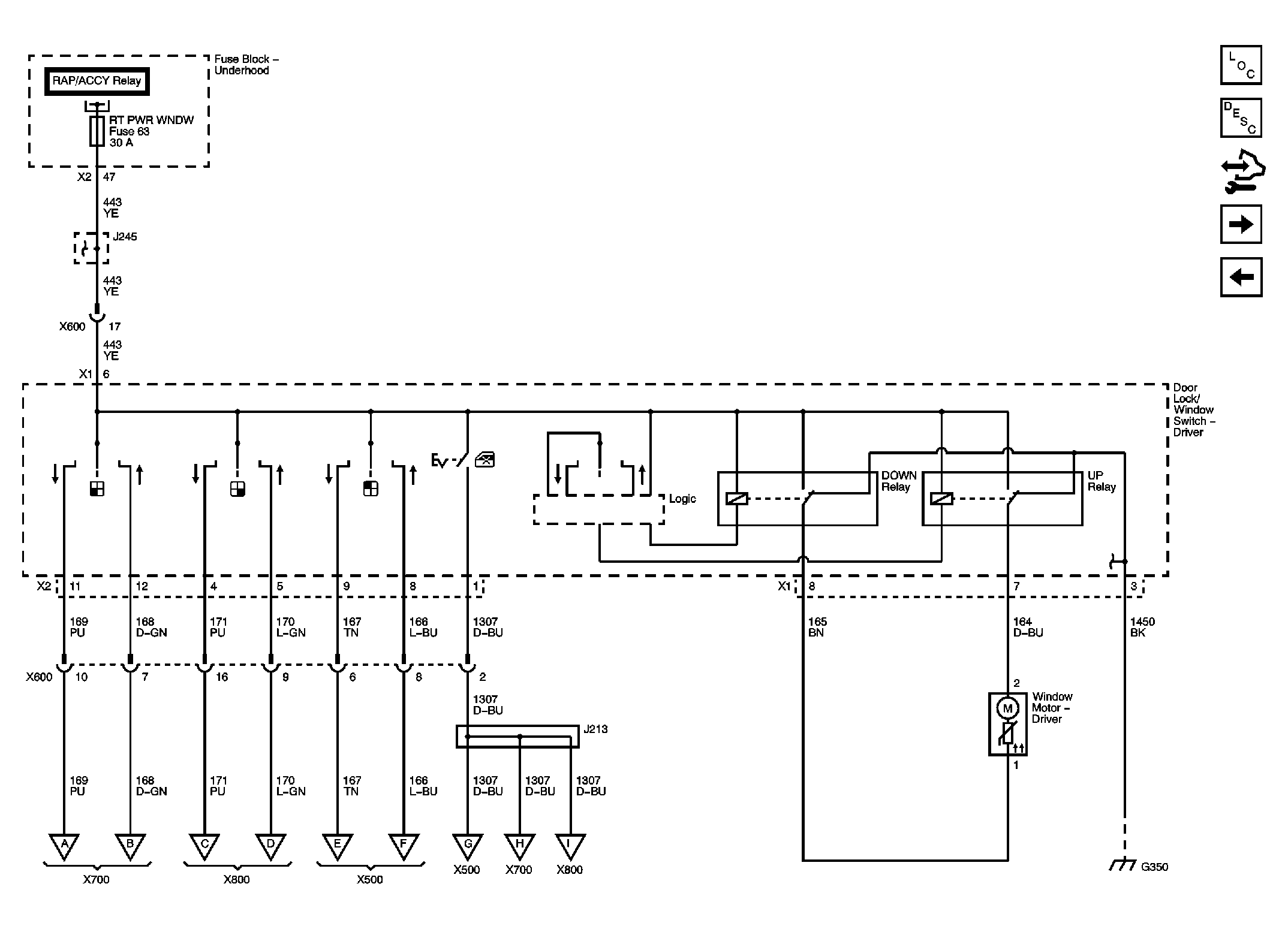

Fig 2: Driver Door (Right Hand Drive)
GM2244027Courtesy of GENERAL MOTORS CORP.
Fig 3: Passenger Door (Left Hand Drive)
GM2244028Courtesy of GENERAL MOTORS CORP.

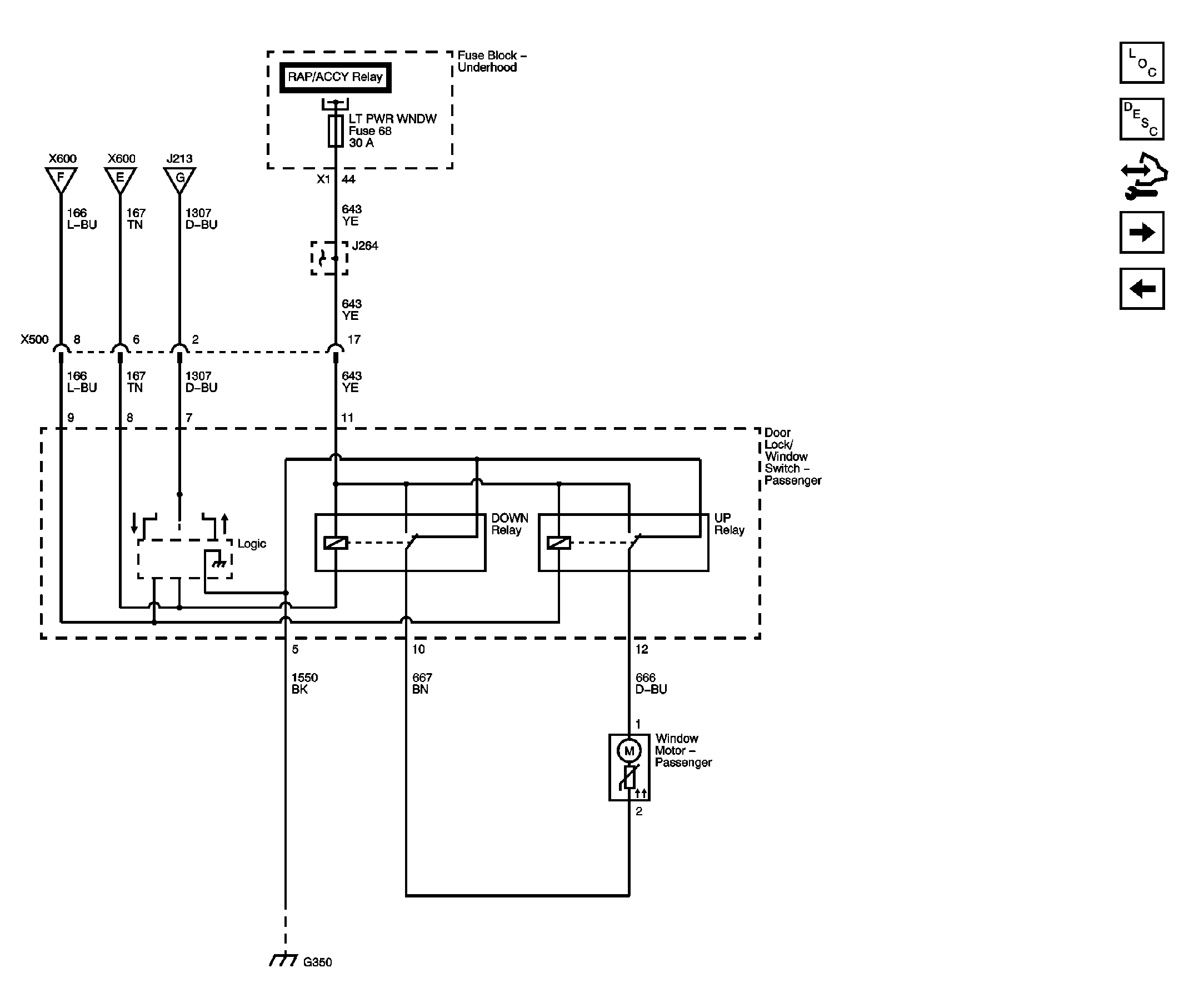

Fig 4: Passenger Door (Right Hand Drive)
GM2244029Courtesy of GENERAL MOTORS CORP.

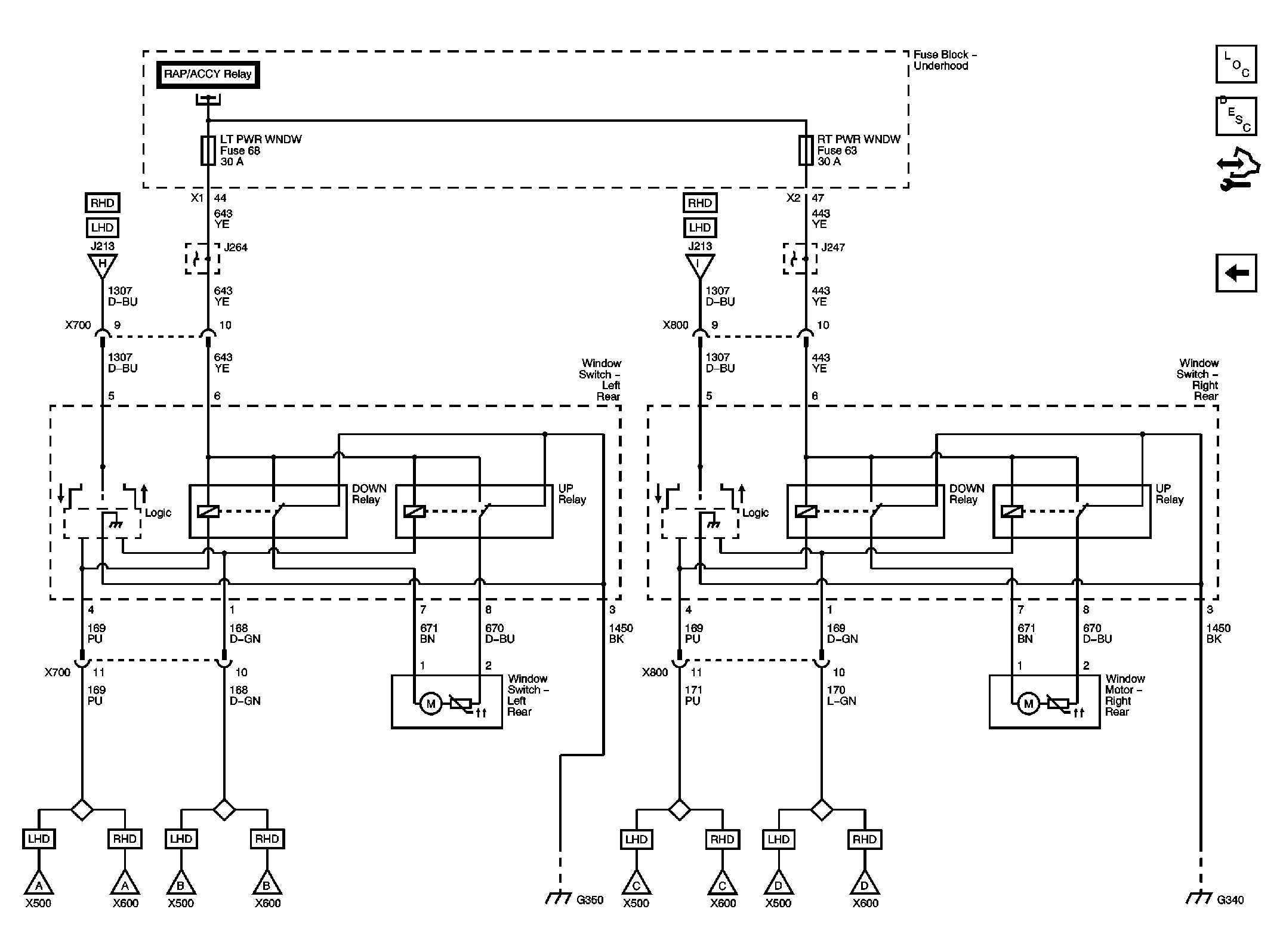

Fig 5: Rear Doors
GM2244030Courtesy of GENERAL MOTORS CORP.
