Turn Signal Multifunction Switch Replacement

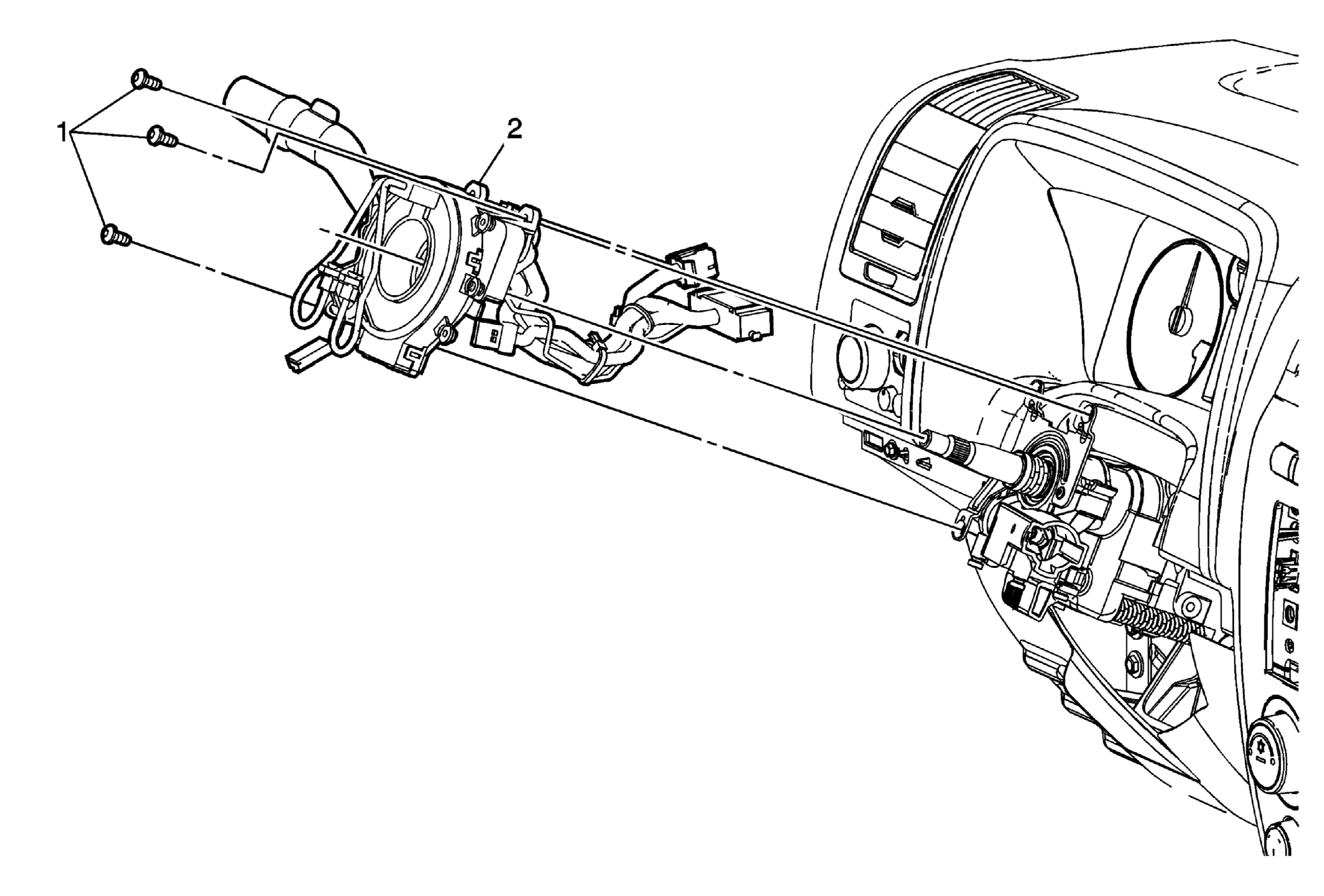

Fig 1: Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the steering column shroud. Refer to Steering Column Shroud Replacement .
1	Turn Signal Multifunction Switch Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 4.5 N.m (40 lb in)
2	Turn Signal Multifunction Switch Procedure: Disconnect any electrical connectors as needed. Tip: The turn signal multifunction switch and the Inflatable restraint steering wheel module coil are serviced as an assembly. Do not remove the centering tab from a new turn signal multifunction switch until it has been installed or re-centering will be required. If re-centering of the turn signal multifunction switch is needed then refer to Inflatable Restraint Steering Wheel Module Coil Centering .

Callout

Component Name

Preliminary Procedures

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column shroud. Refer to Steering Column Shroud Replacement .

Turn Signal Multifunction Switch Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 4.5 N.m (40 lb in)

Turn Signal Multifunction Switch
Procedure:
Disconnect any electrical connectors as needed.
Tip:

The turn signal multifunction switch and the Inflatable restraint steering wheel module coil are serviced as an assembly.
Do not remove the centering tab from a new turn signal multifunction switch until it has been installed or re-centering will be required.
If re-centering of the turn signal multifunction switch is needed then refer to Inflatable Restraint Steering Wheel Module Coil Centering .
