Frontview Camera Image Display Module

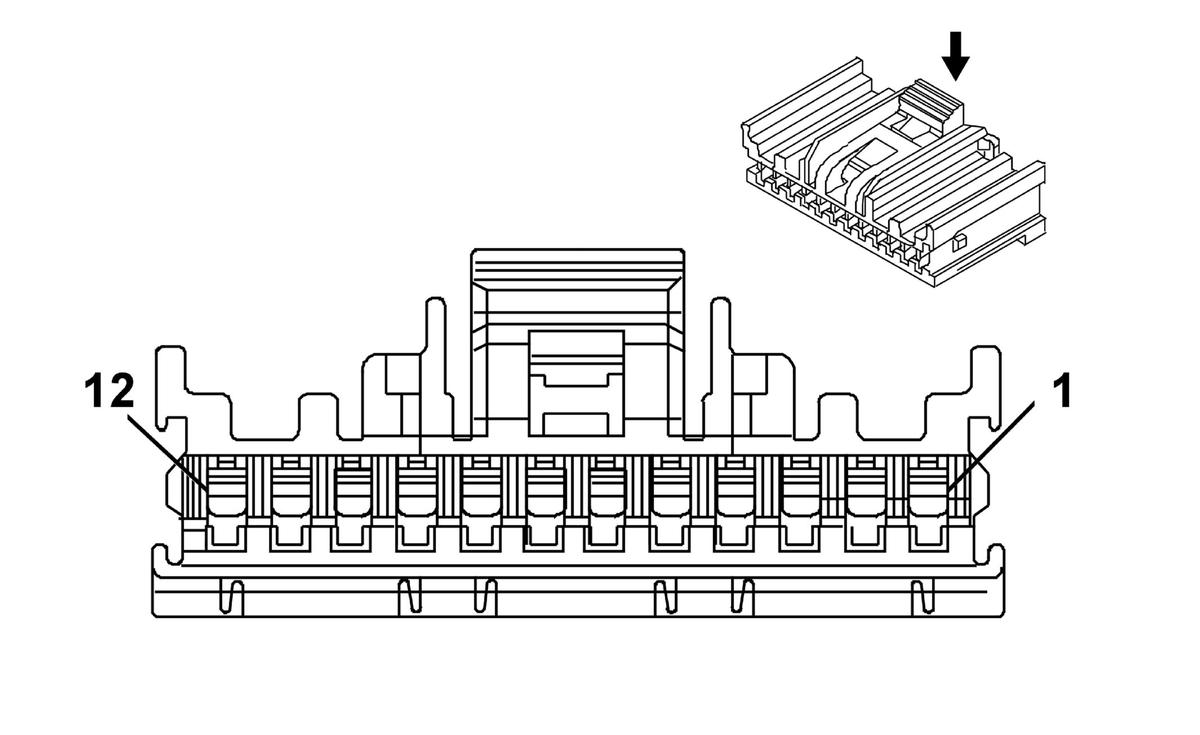

Fig 1: Frontview Camera Image Display Module
GM1710983Courtesy of GENERAL MOTORS CORP.
Frontview Camera Image Display Module

Pin Wire Circuit Function
1 0.5 BN 9992 Frontview Camera Switch Signal
2 0.5 RD 6852 Accessory Voltage
3 0.5 BK/WH 9994 Ground
4 0.35 OG 6201 6 Volt Reference
5 0.35 TN/BK 6202 Camera Ground
6 - - Not Used
7 0.35 BARE 6974 Shield Ground
8 - - Not Used
9 0.35 WH 6798 Camera Video Signal +
10 0.35 BARE 6799 Camera Video Signal -
11 0.35 L-BU 6973 Camera Video Signal +
12 0.35 PK 6972 Camera Video Signal -
Connector Part Information
  • Harness: Frontview Camera Body
  • OEM: 15499371
  • Service: 19115105
  • Description: 12-Way F Kaizen 64 Series (BK)

Terminal Part Information
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215A/J-35616-64B (L-BU)
