Passenger Compartment/Roof Component Views

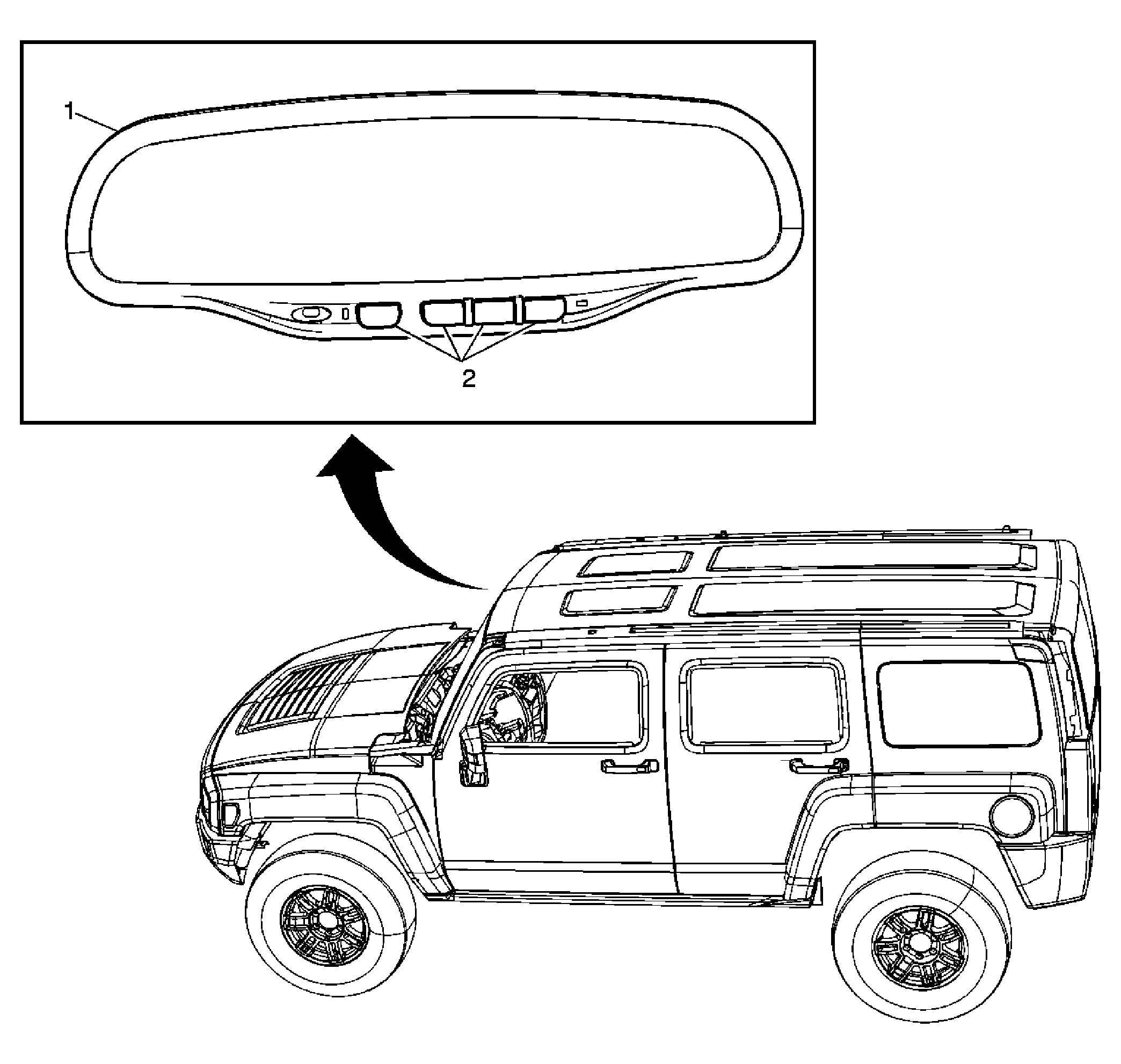

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Onstar Keypad (UE1)

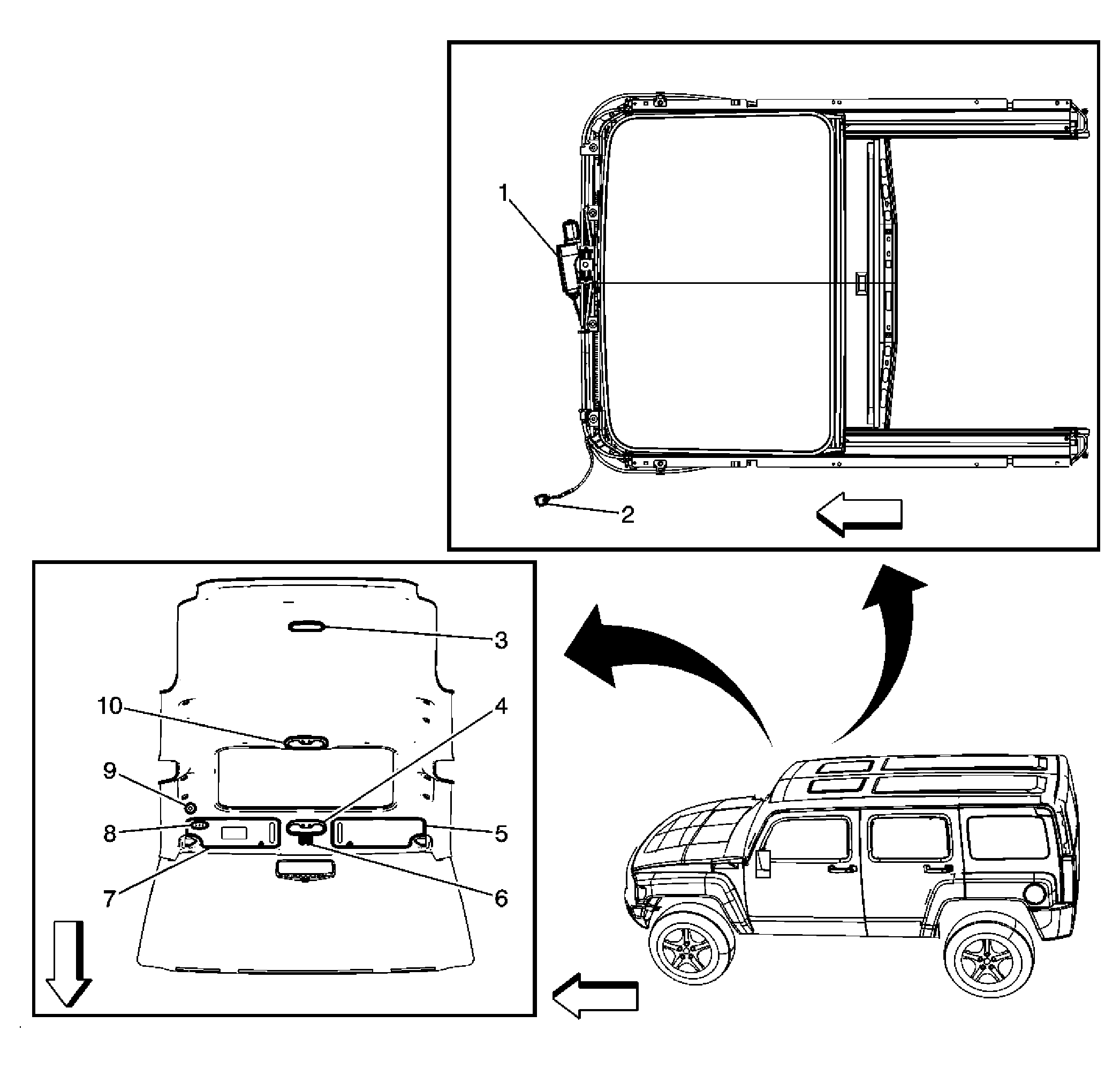

Fig 2: Headliner Components (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Motor
2	X330
3	Dome Lamp
4	Dome/Reading Lamps - Front
5	Sunshade - Right
6	Sunroof Switch
7	Sunshade - Left
8	Garage Door Opener (UG1)
9	Cellular Telephone Microphone (UE1)
10	Dome/Reading Lamps - Middle

Fig 3: Headliner Components (without CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener (UG1)
2	Cellular Telephone Microphone (UE1)
3	Dome/Reading Lamps
4	Dome Lamp
5	Sunshade - Right (DH6)
6	Sunshade - Left (DH6)

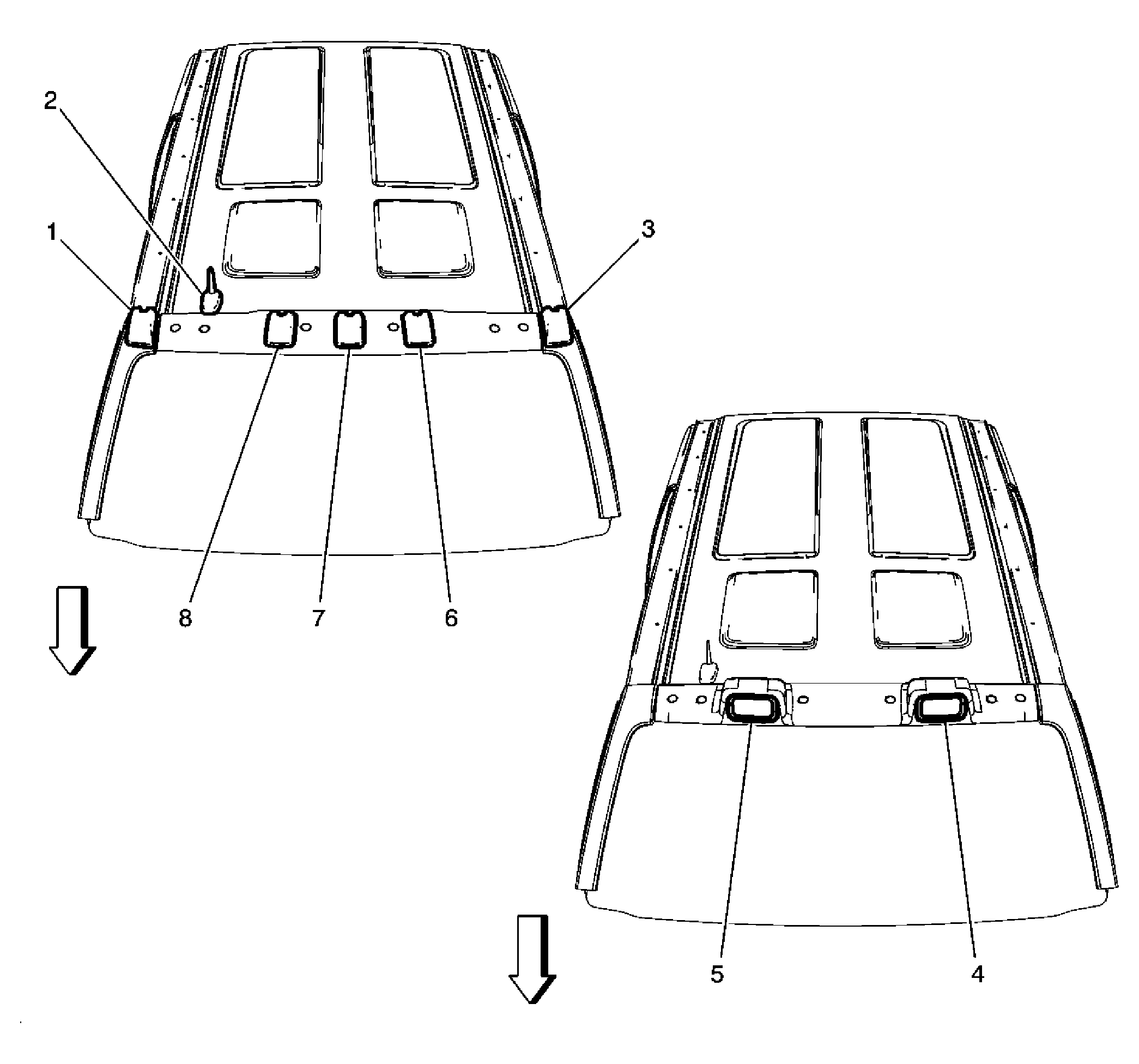

Fig 4: Roof Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Clearance Lamp - Right Front Outer (UNH)
2	Cellular, Navigation, and Digital Radio Antenna (UE1 with U2K) or Cellular and Navigation Antenna (UE1 without U2K)
3	Roof Clearance Lamp - Left Front Outer (UNH)
4	Off Road Roof Lamp - Left (UNJ)
5	Off Road Roof Lamp - Right (UNJ)
6	Roof Clearance Lamp - Left Front Inner (UNH)
7	Roof Clearance Lamp - Front Middle (UNH)
8	Roof Clearance Lamp - Right Front Inner (UNH)

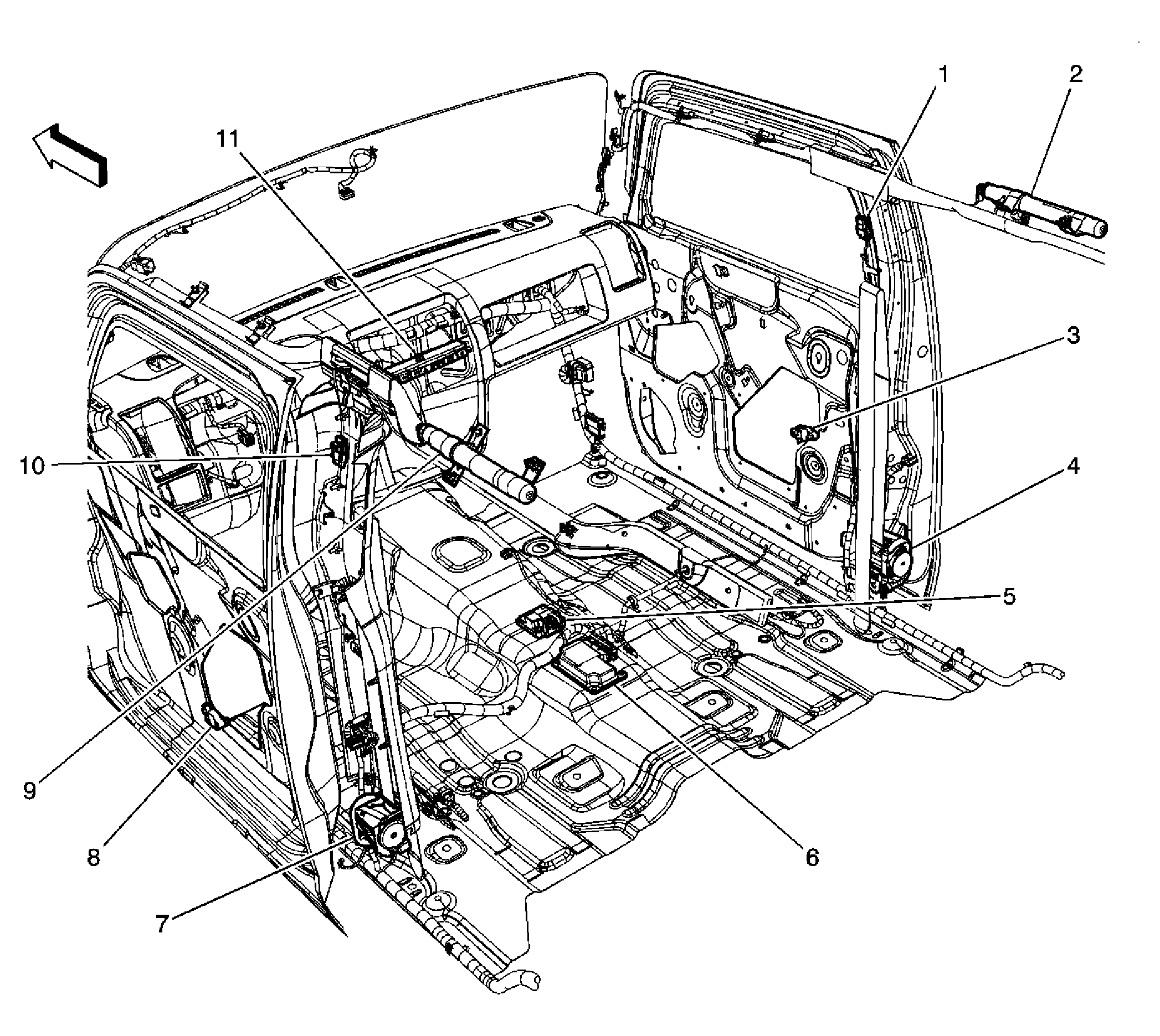

Fig 5: Front Of Passenger Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right Connector (ASF)
2	Inflatable Restraint Roof Rail Module - Right (ASF)
3	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
4	Seat Belt Pretensioner - Passenger
5	Inflatable Restraint Vehicle Rollover Sensor (ASF)
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	Seat Belt Pretensioner - Driver
8	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
9	Inflatable Restraint Roof Rail Module - Left (ASF)
10	Inflatable Restraint Roof Rail Module - Left Connector (ASF)
11	Accessory Switch

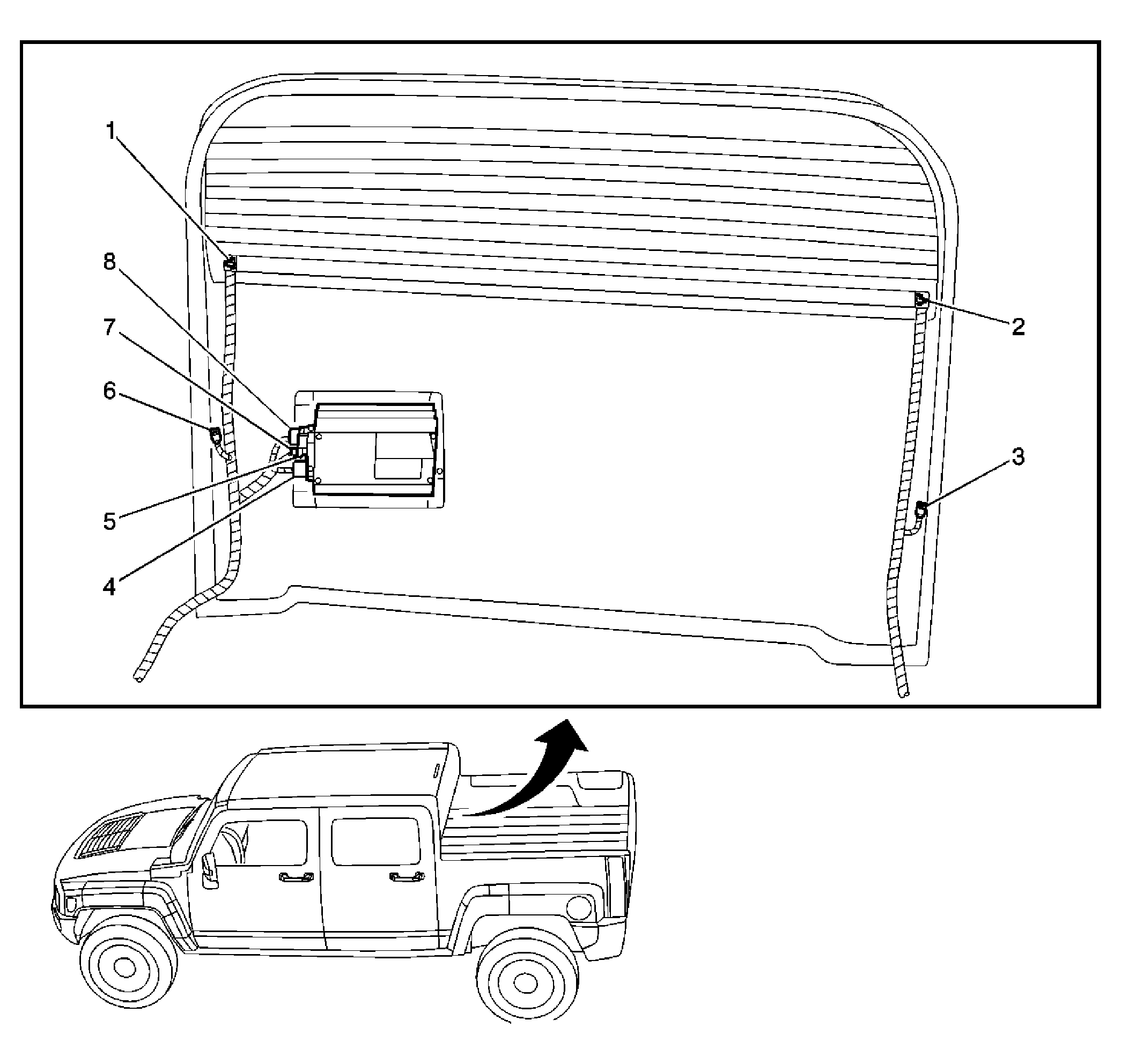

Fig 6: Rear Of Passenger Compartment Components (Truck)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Connector X2
2	Rear Window Defogger Connector X1
3	G345
4	Audio Amplifier X1 (UQA)
5	Audio Amplifier X2 (UQA)
6	G340
7	Audio Amplifier (UQA)
8	Audio Amplifier X3 (UQA)

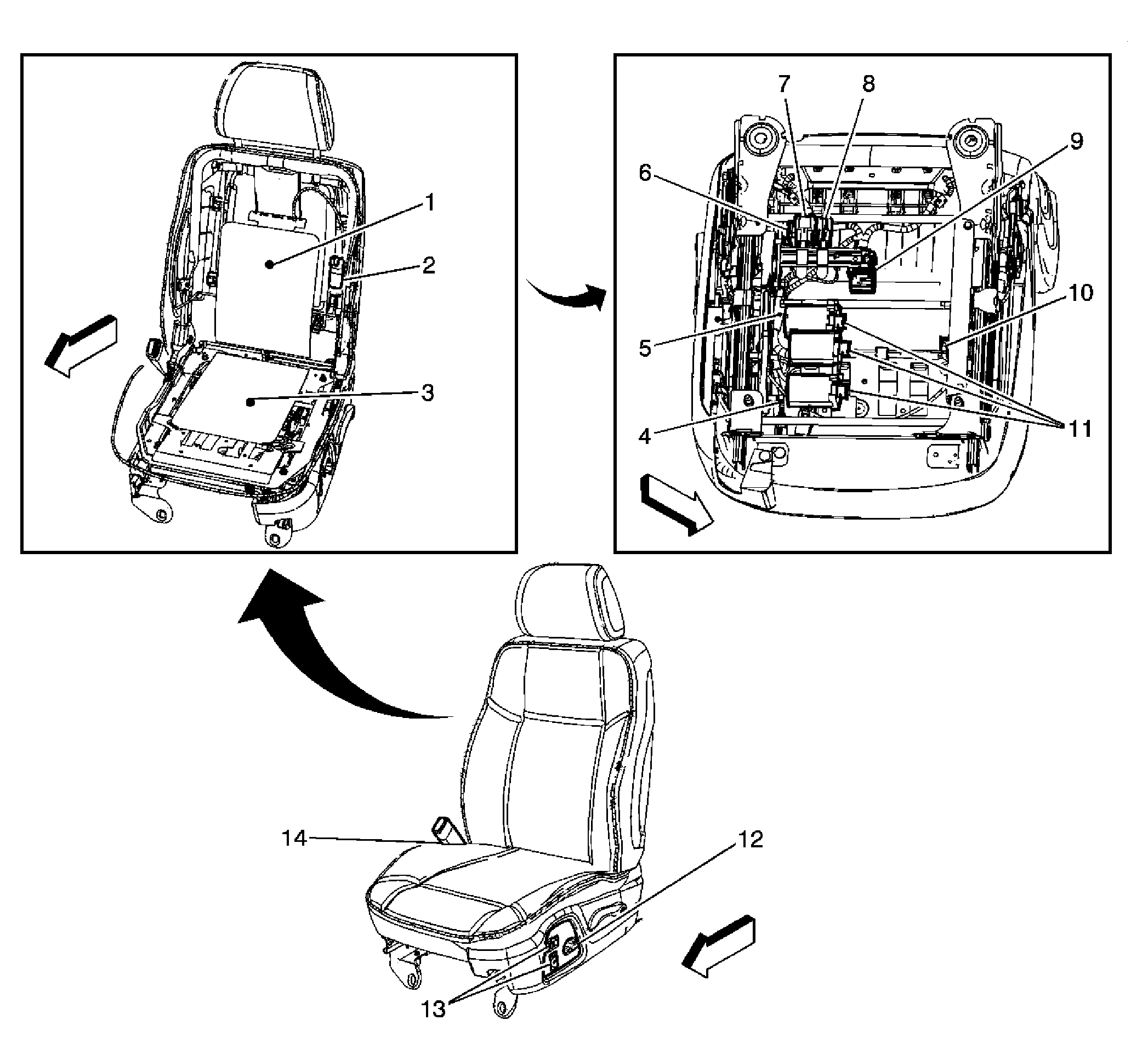

Fig 7: Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver Back (KA1)
2	Seat Lumbar Motor - Driver (AG1)
3	Heated Seat Element - Driver Cushion (KA1)
4	J306 (AG1)
5	J312 (AG1)
6	Inline Fuse - Power Seat (AG1)
7	X307 (AG1)
8	X308
9	Heated Seat Control Module - Driver (KA1)
10	Inflatable Restraint Seat Position Sensor (SPS) - Driver
11	Seat Adjuster Motor Assembly - Driver (AG1)
12	Seat Adjuster Switch - Driver (AG1)
13	Seat Lumbar Adjuster Switch - Driver (AG1)
14	Seat Belt Buckle - Driver

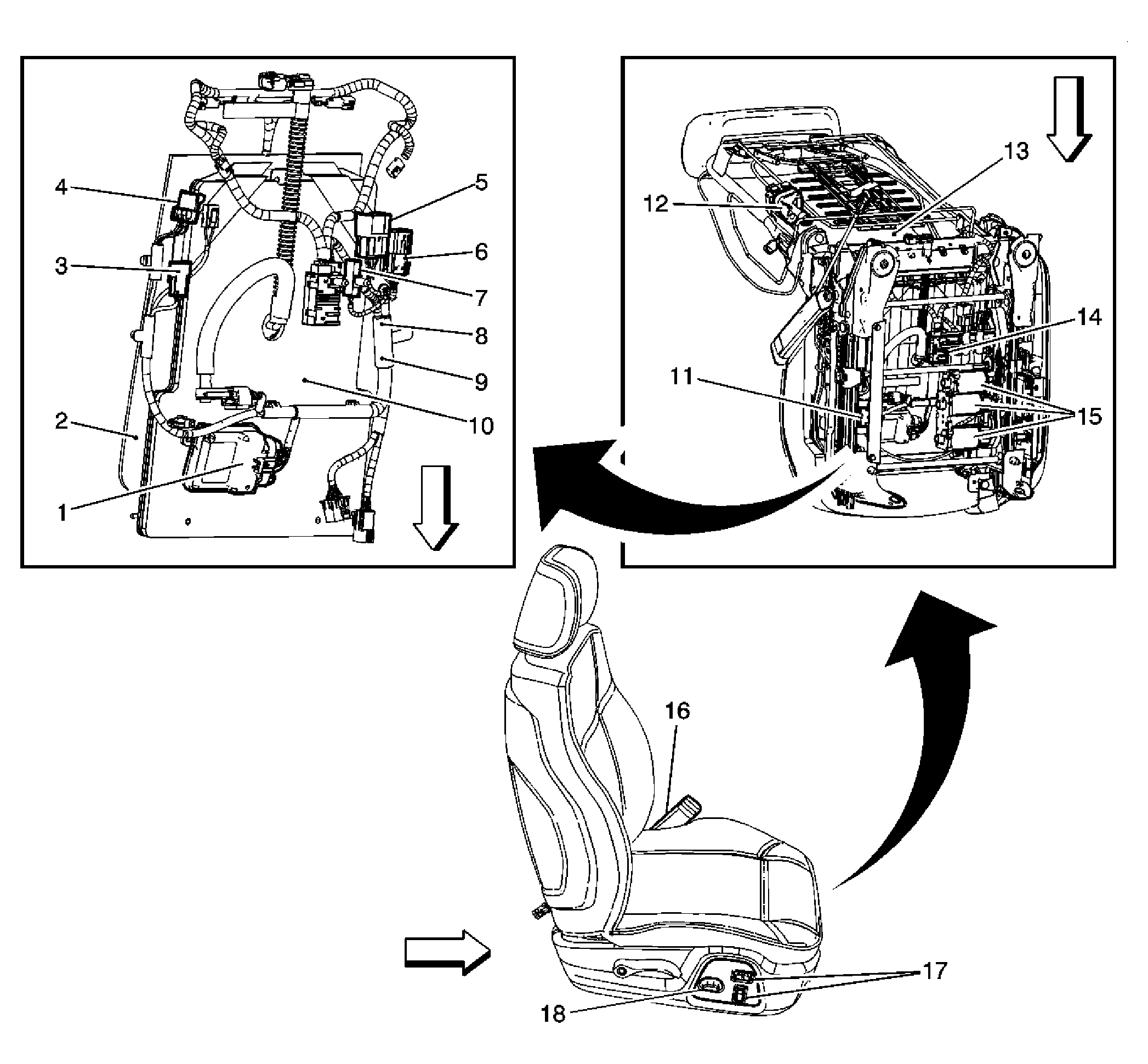

Fig 8: Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Module
2	Heated Seat Element - Passenger Cushion (KA1)
3	Seat Belt Buckle - Passenger X1
4	Seat Belt Buckle - Passenger X2
5	X320
6	X315
7	X318 (AG2)
8	J341 (AG2)
9	J316 (AG2)
10	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
11	Inflatable Restraint Seat Position Sensor (SPS) - Passenger
12	Seat Lumbar Motor - Passenger (AG2)
13	Heated Seat Element - Passenger Back (KA1)
14	Heated Seat Control Module - Passenger (KA1)
15	Seat Adjuster Motor Assembly - Passenger (AG2)
16	Seat Belt Buckle - Passenger
17	Seat Lumbar Adjuster Switch - Passenger (AG2)
18	Seat Adjuster Switch - Passenger (AG2)
