Object Detection Schematics

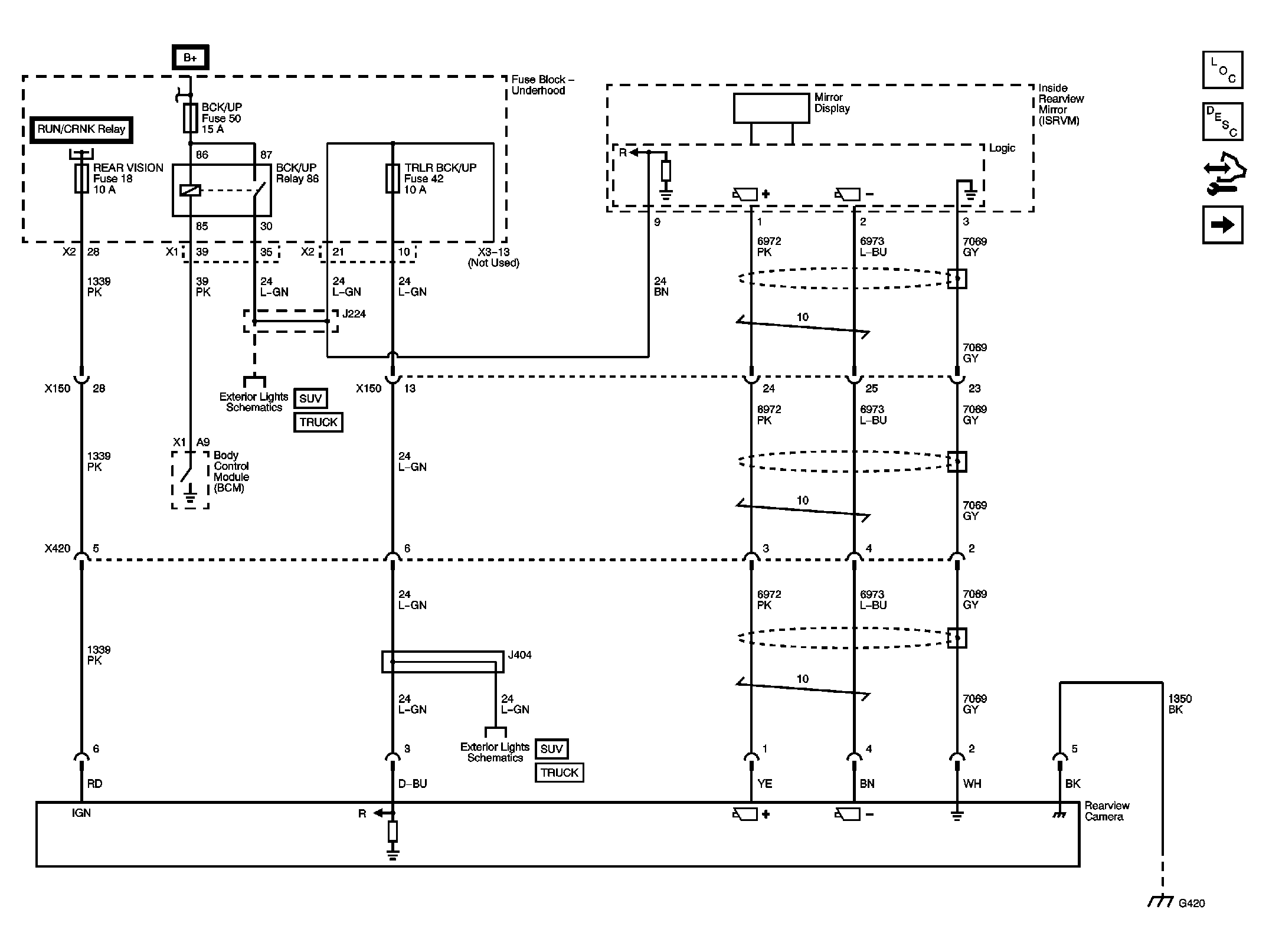

Fig 1: Rearview Camera (UVC without BRM)
GM2248192Courtesy of GENERAL MOTORS CORP.

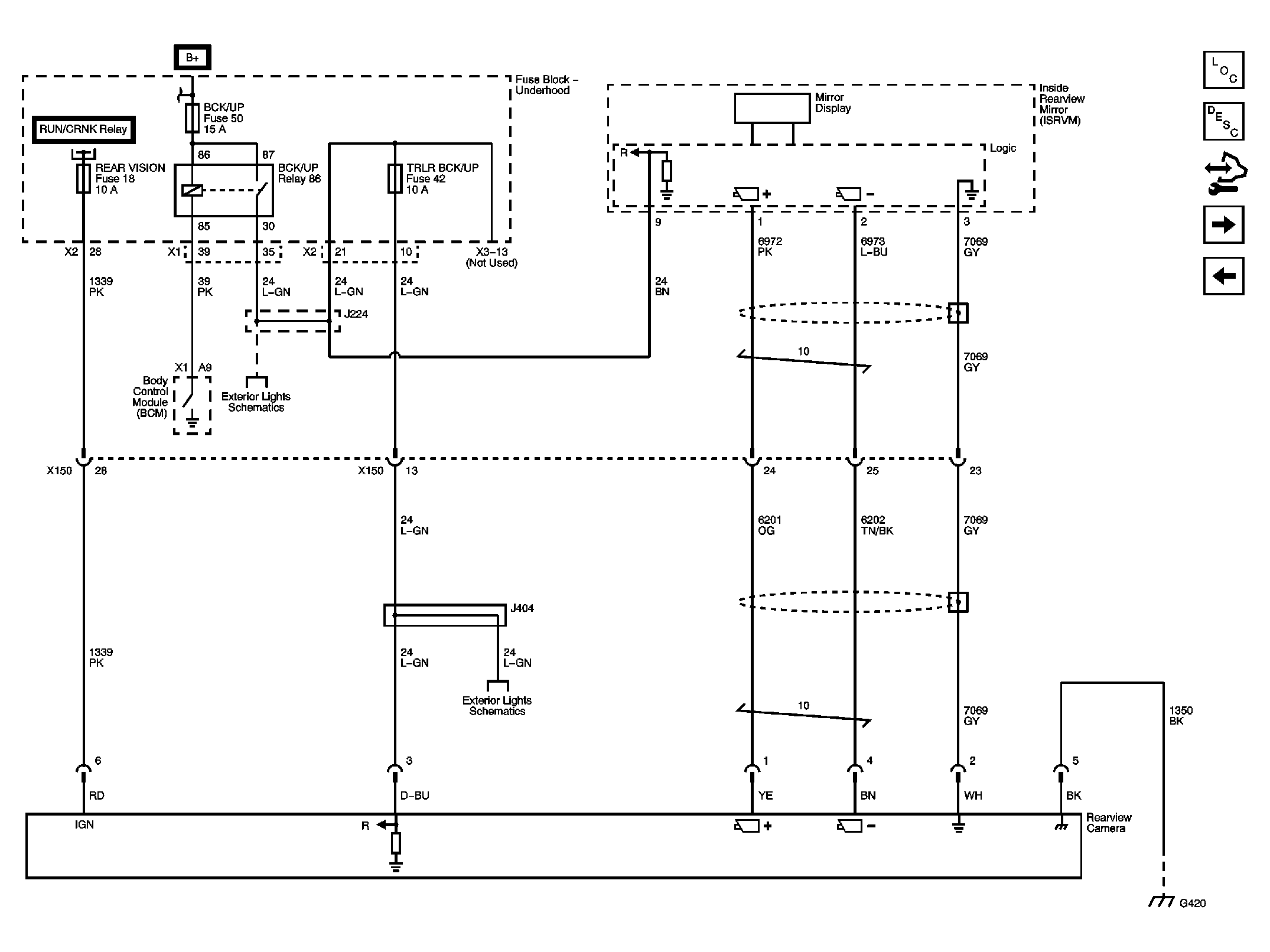

Fig 2: Rearview Camera (UVC with BRM)
GM2248179Courtesy of GENERAL MOTORS CORP.

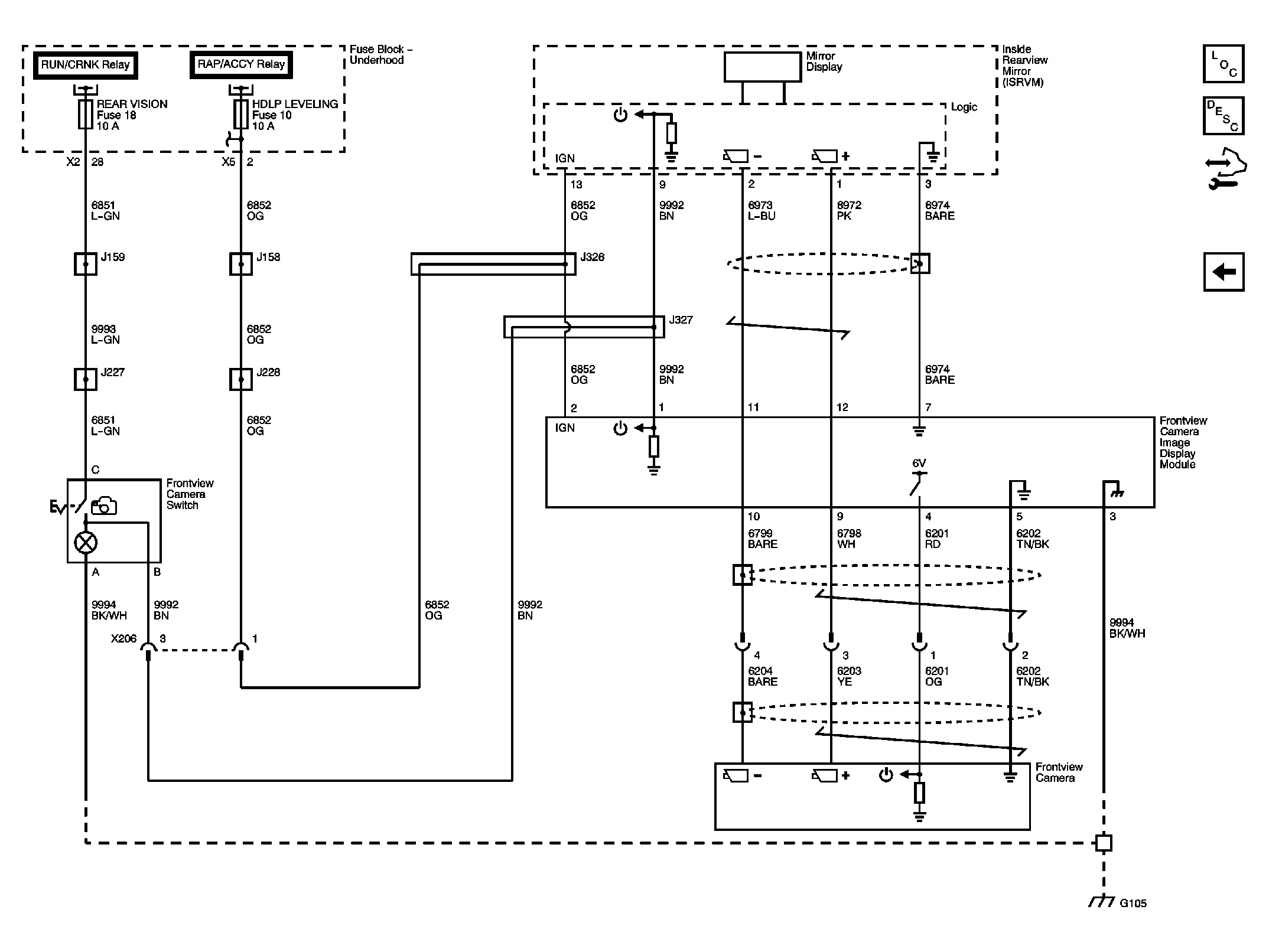

Fig 3: Frontview Camera (SUV with UVF)
GM2248199Courtesy of GENERAL MOTORS CORP.
