Installation Procedure

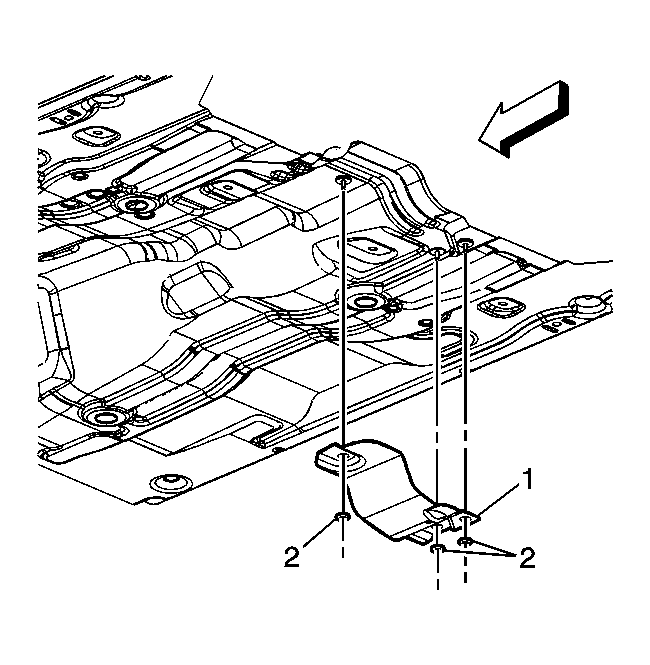

    Fig 1: Exhaust Pipe heat Shield Nuts
    GM1902753Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the exhaust pipe heat shield (1) and nuts (2), if necessary.

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

    2. Fig 2: Exhaust Pipe Heat Shield Replacement
    GM1902752Courtesy of GENERAL MOTORS CORP.
  2. Install the exhaust pipe heat shield (1) and nuts (2), if necessary.

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

  3. Lower the vehicle.
